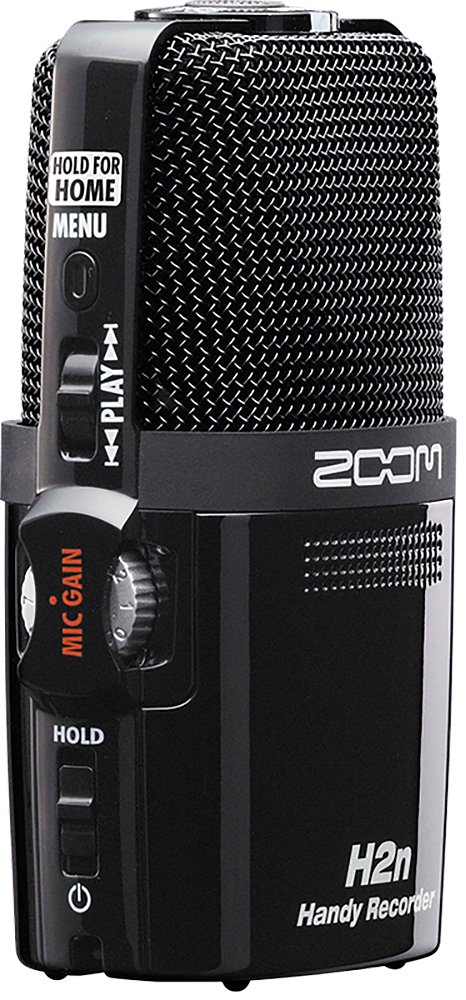

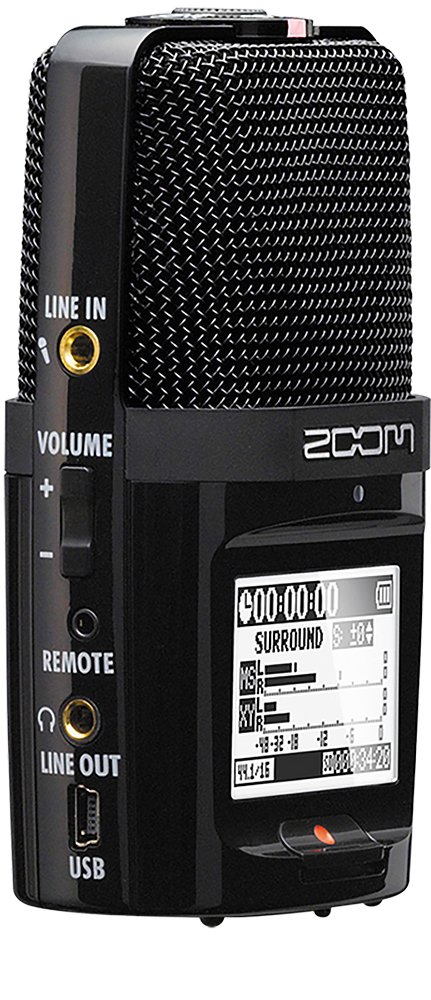

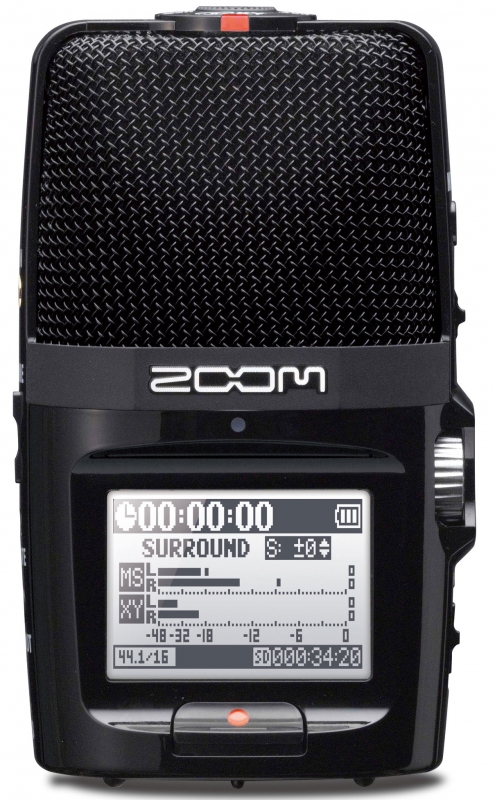

Zoom H2n
UPC/EAN #4515260013470
MPN #ZH2N

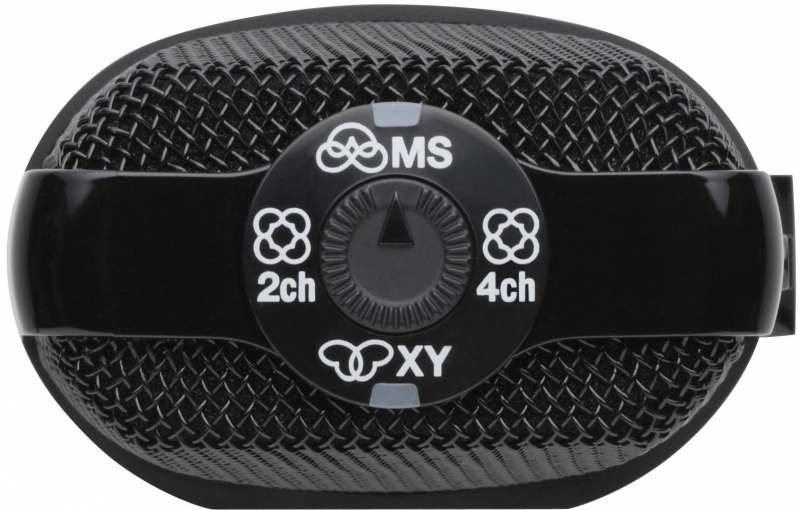

Handy Recorder with five built-in microphones and four different recording modes: X/Y, Mid-Side, 2ch surround and 4ch surround (multidirectional)
With its multiple microphones and recording modes, the H2n can handle just about every kind of application. Here are just a few ways it can be used:
Live recording of concerts and rehearsals, in either stereo or surround soundLocation videography-the H2n gives you plenty of options in postproductionCreating audio for YouTube videosGenerating lasting audio documents of important eventsAs a USB microphone providing input to recording software
Features
Five built-in microphones and four recording modes: Mid-Side (MS) stereo, 90 X/Y stereo, and both 2-channel and 4-channel surroundAnalog-type input gain controlAuto Gain provides three preset recording levelsStereo " Mic/Line In mini phone jack with Plug-in power (2.5V)Stereo " Phone/Line Output jack with dedicated volume controlBuilt-in reference speaker for fast monitoringLarge 1.8 inch backlit LCD displayRecords directly to SD and SDHC cards up to 32 GBSupports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formatsAuto-record and Pre-record featuresWAV to MP3 conversionInternal mixdown: four-track surround to stereoUp to 99 marks per recordingBuilt-in effects, including compression/limiting and low-cut filteringOnboard MS decodingNormalize and Divide functionsChromatic tuner and metronomeLoop playback with user-defined start and stop pointsVariable playback speed, from 50% to 150% for phrase trainingVariable pitch without affecting playback speedUSB port for data exchange to and from computer and use as a USB microphone2-in/2-out USB audio interface for PC/Mac computersSD card reader functionData recovery function automatically saves data if power fails or card is removedMounts directly to tripod or DSLRRuns on only 2 standard AA alkaline or NiMH rechargeable batteries, or AC adapter (AD-17, USB to AC type)Over 20 hours of operation with 2 AA alkaline batteries
Specifications
General
Recording media: 16MB-2GB SD cards, 4GB-32GB SDHC cardsBuilt-in memory: Up to 1 minute in 96kbps MP3 format (Recording overwrites any previous recording in memory)Mic arrangements: 90 X/Y stereo, MS stereo with adjustable side mic levelRecording modes: MS, XY, MS+XY (2ch), MS+XY (4ch)Microphone types: Directional (XY, MS mid mics), Bidirectional (MS side mic)Maximum sound pressure input: 120 dB spl (directional), 122 dB spl (bi-directional)
File formats
Stereo uncompressed PCM: 44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF)
Compressed MP3 (recording)
44.1kHz, 48kHz56 /64/80/96/112/128/160/192/ 224/256/320kbps(Not compatible with MS-RAW recording)
Compressed MP3 (playback)
44.1kHz, 48kHz32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps
4ch uncompressed PCM
44.1 / 48 / 96kHz,16 / 24bit WAV (BWF)(Two stereo files for each recording)
Digital processing
A/D conversion: 24-bit 128x oversampling
D/A conversion: 24-bit 128x oversamplingSignal processing: 32-bitRecording time (2GB card): 3:08:00 (44.1kHz/16bit WAV), 34:43:00 (128kbps MP3)
Additional features
Lo cut: 80Hz high-pass filterComp/Limiter: 3 types of compressors and 3 types of limitersAuto gain: Automatic input gain adjustment (3 levels)Pre rec: 2 seconds of pre-recordingAuto rec: Automatic recording start/stop, continuous standbyTuner: Chromatic, guitar, bass and alternate (A/E/G/D/DADGAD) tunings with automatic string detectionMetronome: 40-250 BPM range, five tones, pre-countSpeed: Playback speed adjustable between 50-150%Key control: Playback pitch adjustable ±6 semitones (Cannot be used with 96kHz files)AB repeat: Repeats playback between selected points in a fileFile divide: Divides a file into twoFile normalize: Maximizes file volume (Cannot be used with MP3s)File MP3 encode: Converts WAV files to MP3 formats at fixed bit ratesMark: Up to 99 marks (WAV files only)Surround mixer: Adjusts mix balance when playing back 4ch surround recordings
Other
Display graphic: 128x64 pixels backlit LCDInput gain: 0 to +39 dBInput jack: Line/mic stereo mini jack with plug-in power. 2 k impedance at input levels of 0 to -39 dBmOutput jack: Line/headphone stereo mini jackRated output level: 10 dBm (output impedance 10 k or more)Headphones: 20 mW + 20 mW (into 32 load)Built-in speaker: 400mW, 8, monoUSB: Mini-B type, Card reader operationUSB 2.0 high speed: Audio interface operationUSB 1.0 full speed: Supports 44.1 / 48kHz sampling rates and 16-bit rate, USB bus power operation supportedPower: Two AA batteries, AD-17 USB to AC adapter (DC 5V 1A), Continuous operation of 20 or more hours when recording 44.1kHz/16-bit WAV files using alkaline batteriesPhysical features: Tripod mounting socket, strap attachmentDimensions: 67.6mm (W) x 113.85mm (H) x 42.7mm (D)Weight: 130 g (without batteries)
