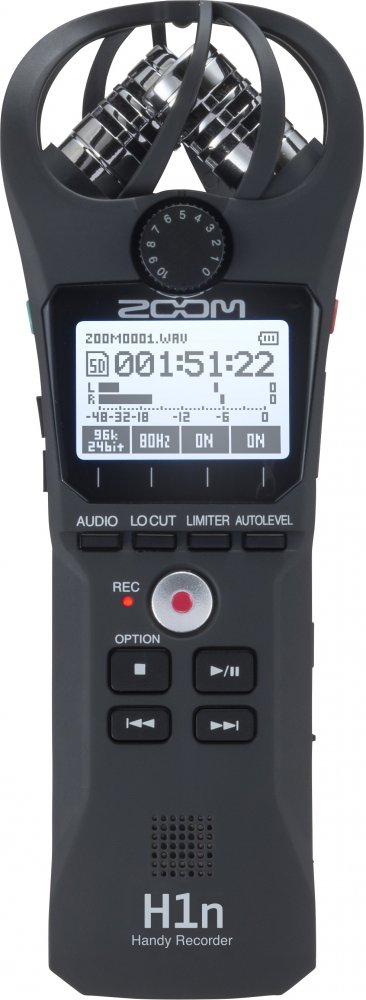

With the H1n, we've redesigned the user experience. One-touch button controls make it simple to record songs, audio-for-film, lectures, podcasting, and more. And its new monochromatic 1.25" LCD display is easy to read even in the brightest lighting conditions.

Distortion-Free Recording
An advanced onboard limiter offers distortion-free signal up to 120 dB SPL, cleanly recording the loudest of bands. A low-cut filter also helps eliminate pops and unwanted low frequency rumble.

Unlimited Overdubbing
The overdub function lets you add layers of audio, allowing for richer and fuller sounding recordings.

Transcription Made Easy
The H1n's Playback Speed Control lets you transcribe music, interviews and
other types of recordings without altering pitch.

Don't Miss the Moment
You can also set the H1n to auto-record, pre-record, and self-time, making sure you always capture the moment.

Mark and Sync
New tone generator makes it easy to calibrate your H1n and camera audio levels.

The Connections You Need
An " stereo mic/line input lets you record with your external microphones or other sound sources, and supplies plug-in power (2.5 volts). Connect headphones via the " headphone output with dedicated volume control. You can also use the H1n's built-in speaker to listen to your recordings.

The H1n's USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. It also allows the H1n to be used as a USB microphone and a microSD card reader.

Free Recording Software
The Zoom H1n comes with free download licenses for Steinberg's Cubase LE music production software and WaveLab LE audio editing software.

Maximum Capacity
The H1n is battery-powered and offers up to 10 hours of recording time.
Put it in your pocket, toss it in your backpack, or mount it to a camera-the H1n travels wherever you do.

One-touch button controls

1.25" monochrome LCD display

Intuitive menus for easy operation

Stereo X/Y 90microphones handle up to 120 dB SPL

Stereo " Mic/Line In mini phone jack

Stereo " Phone/Line Output jack with dedicated

volume control

Limiter button for input signal up to 120 dB SPL

Playback Speed Control, Voice Emphasize Filter,

and Stereo Bounce functions

Auto-Record, Pre-Record, and Self-Timer functions

Supports up to 24-bit/96 kHz audio in BWF-compliant

WAV or a variety of MP3 formats

Tone generator for filmmaking use with DSLR

and video cameras

Records directly to SD and SDHC cards up to 32 GB

Micro USB port for data exchange to and from computer

and use as an audio interface

Runs on only 2 standard AAA alkaline, Lithium, or

NiMH rechargeable batteries, or AC adapter (AD-17)

Up to 10 hours of operation with alkaline batteries

Simultaneous playback tracks: 2
Simultaneous recording tracks: 2
Functions:
Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing
Recording formats: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit
A/D conversion: 24-bit, 128x oversampling
D/A conversion: 24-bit, 128x oversampling
Signal processing: 32-bit
Recording media: microSD/microSDHC cards (Class 4 or higher, up to 32 GB
Display: 1.25" monochrome LCD (96 x 64)
Built-in stereo mic: Unidirectional condenser, 90 XY stereo format
Gain: - dB to +39 dB
Maximum sound pressure level: 120 dB SPL
Inputs:
1/8" stereo phone jack
Rated input level: - dB to -39 dBm
Input impedance: 2 k
Plug-in power supported (2.5 V)
Built-in speaker: Built-in 500 mW mono speaker
Output impedance: 8

Outputs:
1/8" stereo phone jack (combined line/headphones)
Rated output level: 20 mW + 20 mW into 32 load
Output impedance: 10 k or more
USB:
Micro USB port
Mass storage class operation: USB 2.0 high speed
Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
Transfer method: asynchronous
Power requirements:
2 AAA batteries (alkaline, nickel-metal hydride rechargeable, or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A
USB bus power
Battery life (alkaline batteries):
Approximately 10 hours
(continuous recording time using built-in mic, 44.1 kHz/16-bit)
Dimensions:
1.9 in (W) x 5.4 in (D) x 1.2 in (H)
50 mm (W) x 137.5 mm (D) x 32 mm (H)
Weight: 0.13 lbs / 60 g (without batteries)

What's included with the H1n

2 AAA Batteries

Steinberg Cubase and WaveLab LE

Quick Start Guide

Optional APH-1n Accessory Pack includes

Windscreen

AD-17 AC adapter

USB cable

Tripod stand

Padded-shell case

MA-2 mic stand adapter

Optional Accessories available separately

WSU-1 universal hairy windscreen

HS-1 hot shoe mount

MA-2 tripod to mic stand adapter

AD-17 AC adapter
