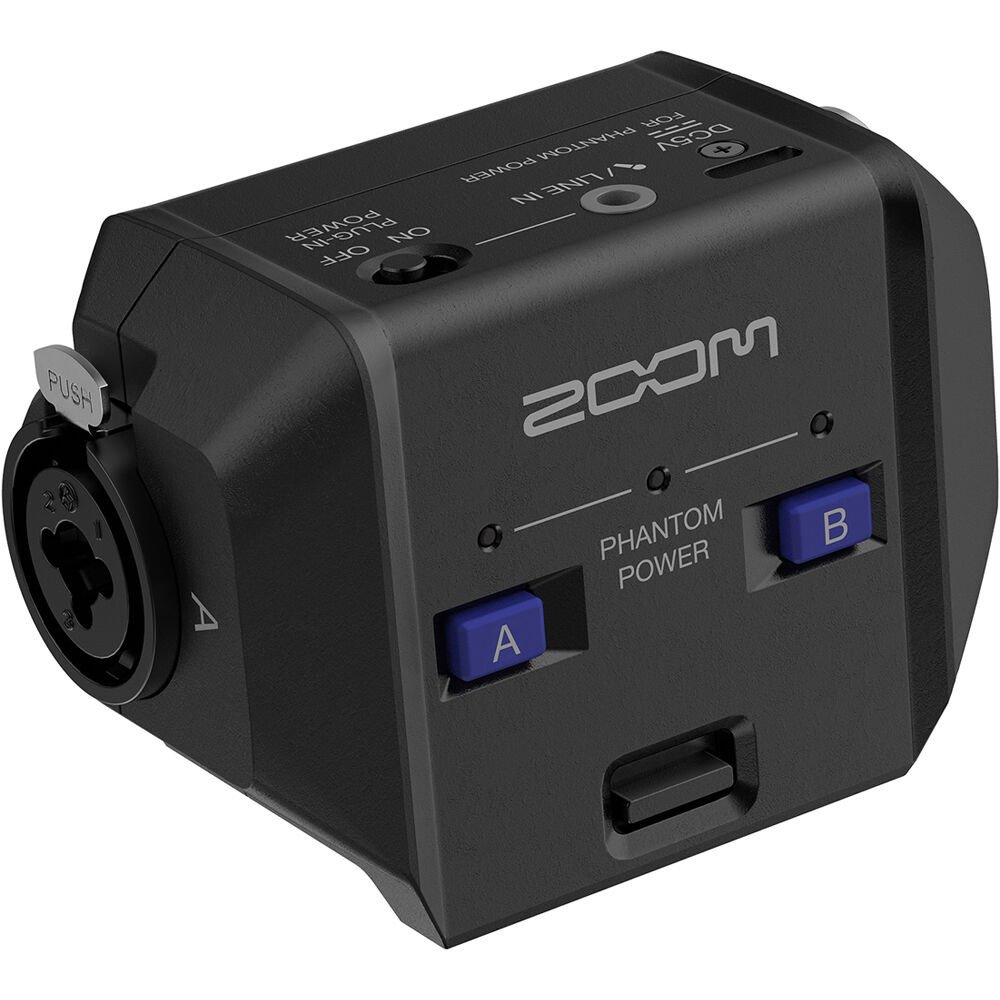

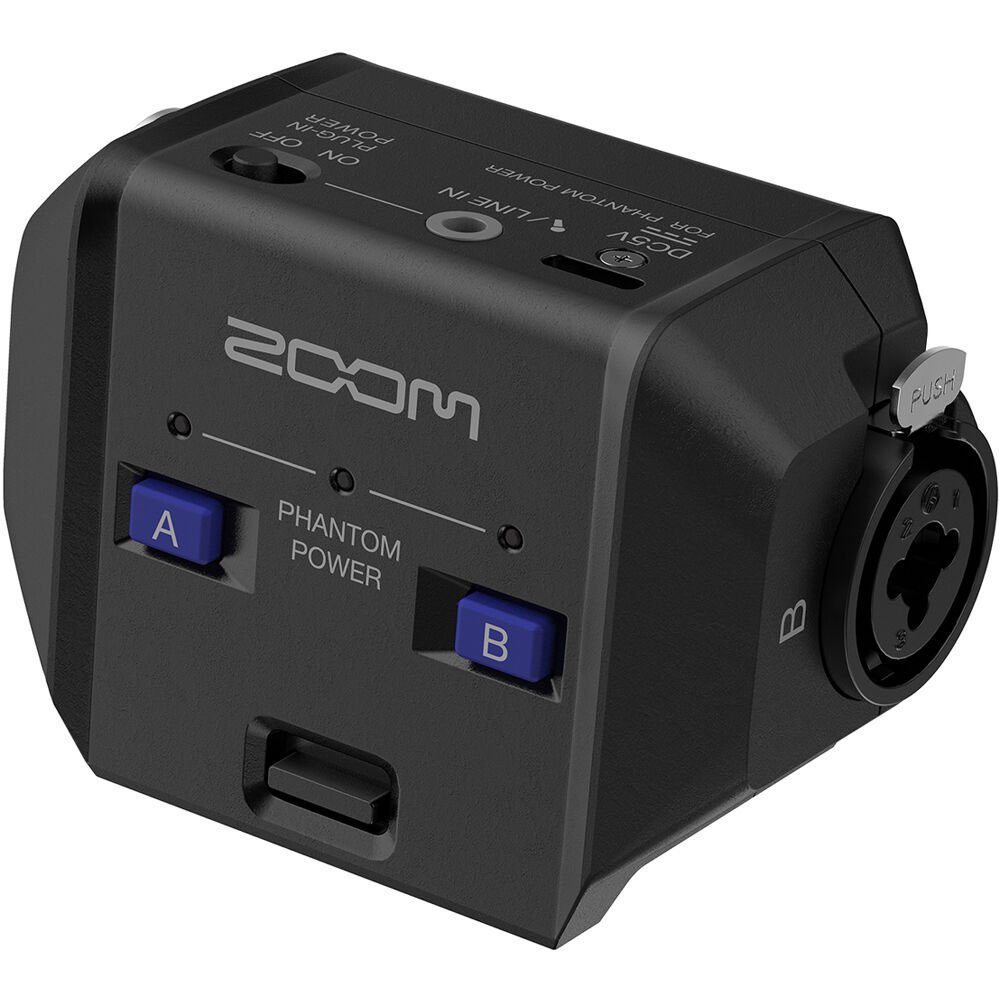

Zoom EXH-6e

UPC/EAN #4515260029907 MPN #ZEXH6E

$139.99

Be the first to write a review

Free shipping in Canada. Conditions

Dual XLR-1/4'' TRS input capsule for H6essential Portable Recorder

Expand Your Recording
The EXH-6e features 2 XLR/TRS inputs and a 3.5mm stereo mic/line input for an added level of flexibility in your recording. Plug in microphones, instruments, mixers, and more.

Input Types

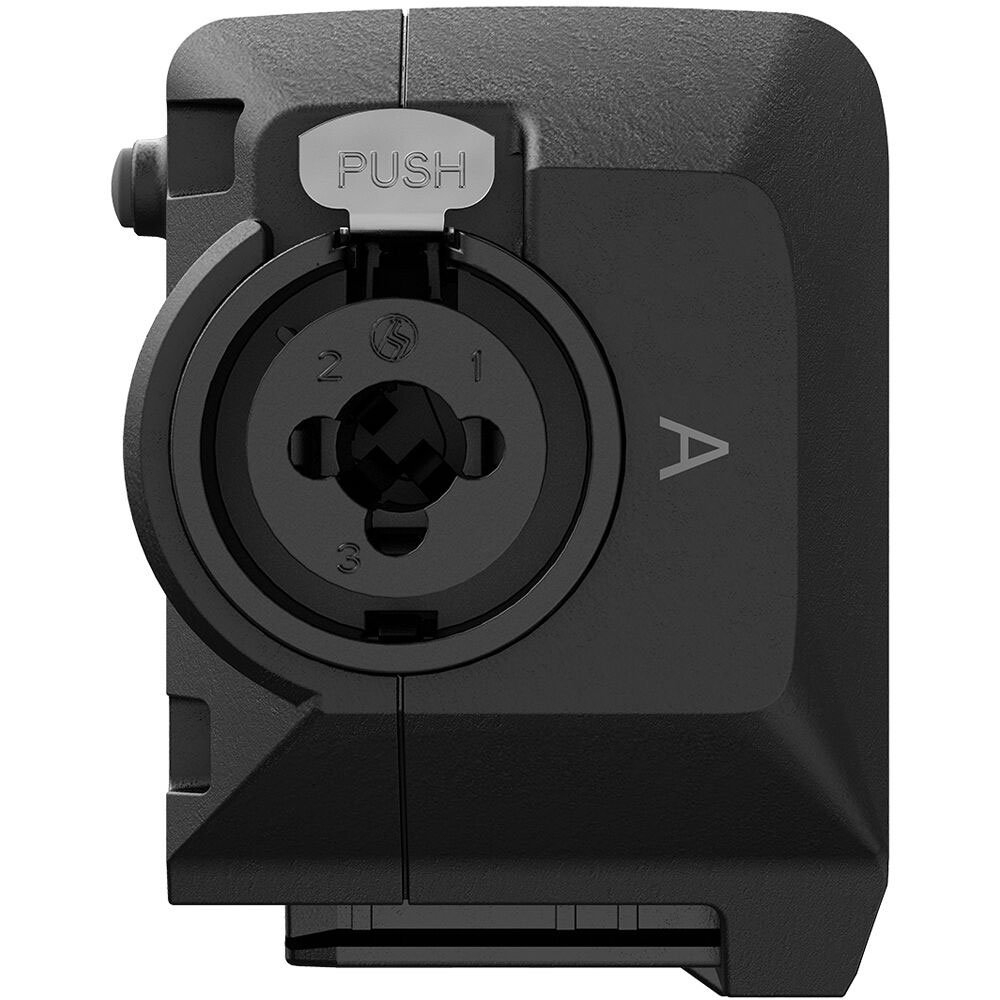

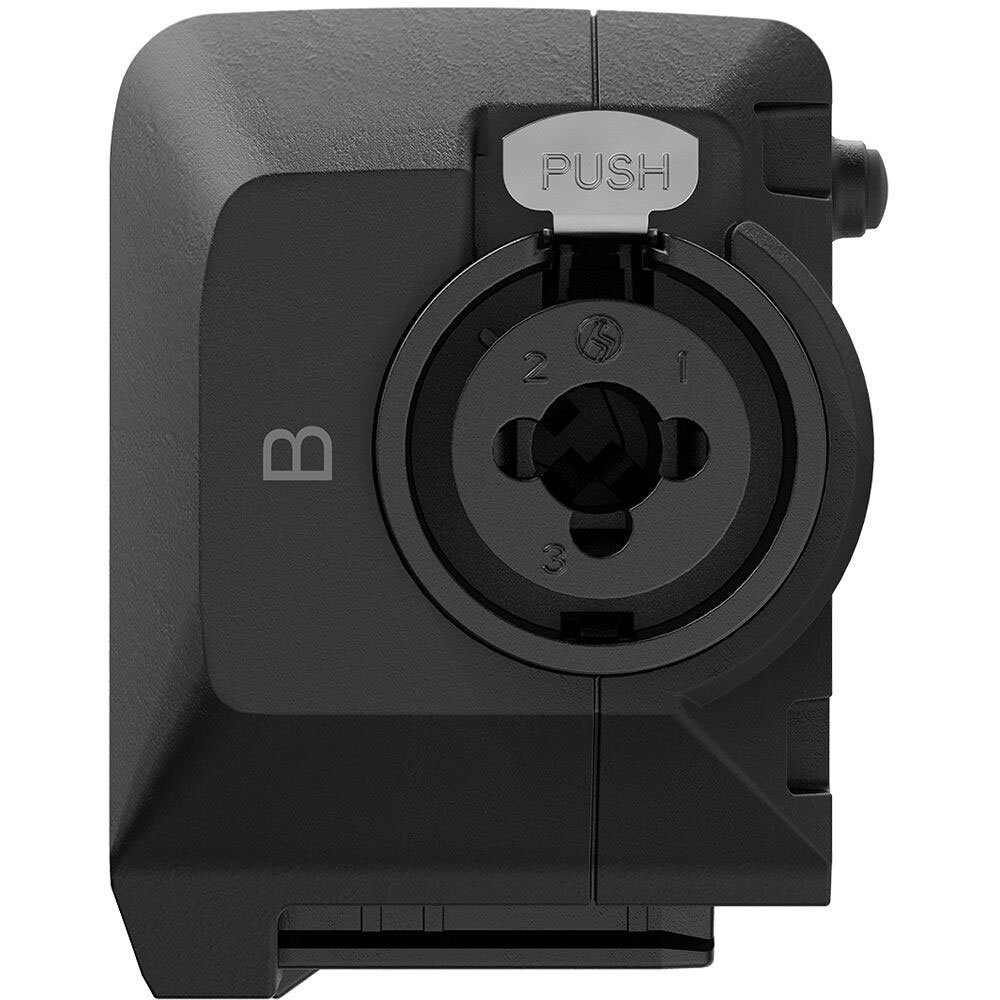

The EXH-6e features 2 XLR/TRS inputs with locking connectors to accept mic or line level input. Additionally, a 3.5 mm stereo mic/line input is available for lavalier microphones or stereo feeds.

Phantom Power

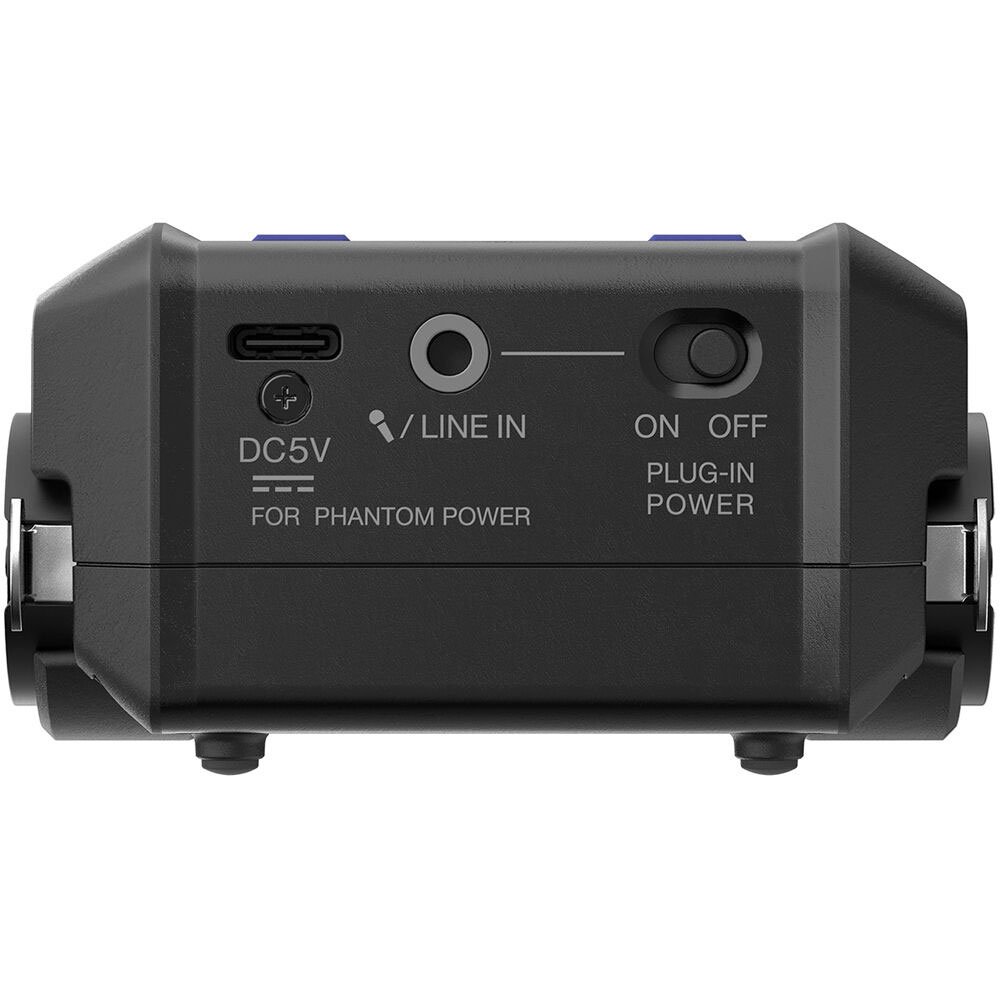

The EXH-6e can provide phantom power for the 2 XLR/TRS combo inputs. Connect the USB-C port of the capsule to an AC outlet or USB battery to power condenser mics. Plug-in power is also available for lavalier mics connected to the 3.5mm input.

Capsule System 3.0
The EXH-6e utilizes Zoom's Capsule System 3.0. This new connector provides a stable connection and allows for 32-bit float recording.

Features

Alternate Capsule for H6essential

Two XLR-1/4" TRS Locking Inputs

Accepts Mic or Line Inputs

Stereo 3.5mm Mic/Line Input for Lav Mics

Individually Selectable Phantom Power

Plug-In Power for Lav Mics

USB-C Port for External Power

Supports 32-Bit Float Recording

Specifications

INPUT A/B jacks

Connectors: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

Input gain: adjustment unnecessary

Input impedance: 3.8 k? or higher (MIC) / 39 k? or higher (LINE)

Maximum input level: '4 dBu (MIC) / +16 dBu (LINE)

Phantom power: +48 V, 10 mA maximum per channel

Equivalent input noise: '120 dBu or less (IHF-A) at 150? input

MIC/LINE jack

Connector: stereo mini jack

Input gain: adjustment unnecessary

Input impedance: 2 k? or higher

Dimensions: 78.1 mm (W) - 56.7 mm (D) - 43.9 mm (H)

Weight : 96 g

Compatible Models: H6essential
