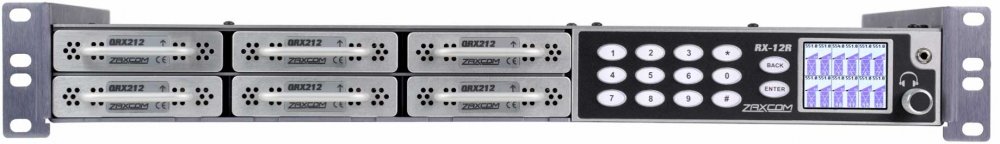

The RX-12R is a completely reimagined rack mountable receiver ideal for sound challenges in studio and network applications



Its ergonomic design takes up only one-and-a-half rack spaces in height.

Powerful Reception
As a wide-band receiver, its full tuning range is 512-698 MHz and features a 35 MHz tracking front end filter to eliminate interference from unwanted radio frequency (RF).

The RX-12R provides RF amplification and both antenna and power distribution for up to 6 Zaxcom QRX212 modules inside the RX-12R. Placing the QRX212 module in single channel mode will deliver 6 channels of true diversity audio and dual channel mode allows for up to 12 channels of audio when demand is less critical.

All QRX212 modules are hot swappable and can be added or removed at any time, making the RX-12R ideal for rental companies where receiver requirements can change on a daily basis.

Fully Digital
The RX-12R receives a 100% digital signal that is fully encrypted resulting in audio quality far superior to any analog system. Additionally, it's compatible with all Zaxcom modulations and transmitters.

Easy Control
A bright, full color LCD displays the menu while a built-in frequency scanner and Auto-Pick software eliminates the guess work and can coordinate and choose the best frequencies with a push of a button.

Connectivity

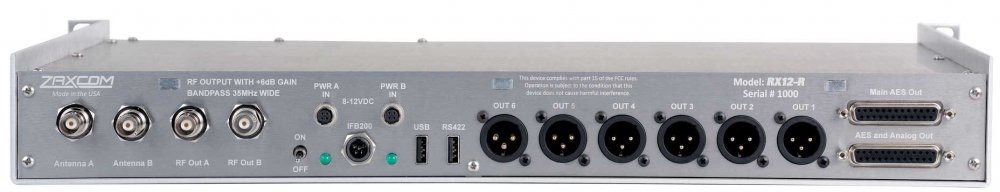

6 XLR analog outputs and two DB25 connectors configure 12 analog or 12 digital signals. An antenna in and RF loop through provide support to daisy chain up to three RX-12R receivers to one set of antennas.

You can monitor the internal audio via headphones and auto-switching 12V redundant DC input supplies power.

Advanced Features
When paired with a Zaxcom recorder, the RX-12R can re-frequency transmitters to match the RX-12R with a touch of a button via ZaxNet.

Specifications

Output
Analog Audio Output: Balanced 0dB @ -20 dBFS (2-channel receiver)
Analog Audio Output Connectors: 6 x Male XLR Outputs
Digital Audio Output Connectors: 2 x DB25
Headphone Output: 1 x 3.5 mm

Digital I/O
Connectors: 1 x USB / 1 x RS422

Receiver
RF Input Connectors: 2 BNC
RF Output Connectors: 2 BNC
RF Impedance: 50 ohm
RF Gain Input / Output: 0 dB
RF Amp Noise Figure: .5 dB
RF Amp IP3: +30 dB input
RF Filter Band Pass: 35 MHz
RF Tuning Range: 512 - 698 MHz

QRX212 Module
Receivers Per Module: 2
Receiver Modulation: Zaxcom Proprietary Digital
Tuning Range: 512 - 698 MHz
Power Consumption: 300 ma @ 12 VDC
Size: 5" x 3" x .8" (L x W x H)

Misc
IFB200 Interface: Switchcraft TA5-M
Power: 8 VDC to 18 VDC (2 amps w/6 x QRX212 modules)
Power Type: Dual input auto switching
Power Connectors: 2 x Hirose HR10A-7P-4P
LCD Screen: TFT daylight readable color
LCD Size: 2.2" diagonal
Size: 19" x 10.2" x 2.325" (L x W X H)
Weight: 7.6 lbs (loaded w/ 6 x QRX212 receiver modules)
Manufacturer Part Number : RX-12R
