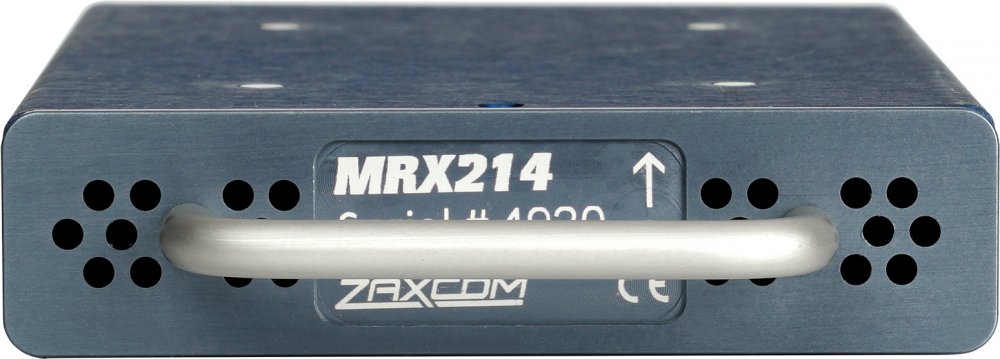

The Zaxcom MRX214 is a hot swappable module receiver designed for use in our Nova mixer / recorder, RX-12 and RX-12R.



CONNECTIVITY
MRX214 is a module style receiver compatible with the Nova mixer / recorder, RX-12 and RX-12R. The UHF diversity receiver utilizes the High Q tunable tracking front end filter within it's host device to combat interference and extend range. The module is compatible with any Zaxcom digital recording wireless transmitter and with all current Zaxcom modulations (Mono, Stereo, XR and ZHD96).

CHANNEL COUNT
Let's break down the name - M (module) RX (receiver) 2 (two transmitters) 1 (for no reason) 4 (up to 4 channels of audio).

RF PERFORMANCE
Part of Zaxcom's 4th generation of digital wireless receiver technology the MRX214 sets a new standard for RF performance. The ultra-low noise floor (-135 dB) RF design will provide ultra-long range. The MRX is almost impossible to overload. Close distance transmitters have virtually no effect on the reception of distant transmitters. The RF performance exceeds the previous generation of Zaxcom receivers by 5 dB while enhancing the rejection of interfering signals from things like walkie talkies, cell phones and HD Television transmission by 10 dB.

POWER
The MRX214 is the most power efficient digital wireless receiver on the market - the module draws 160 mA @ 13 VDC (80 mA per receiver).

Specifications

OUTPUT
Host Dependent

RECEIVER

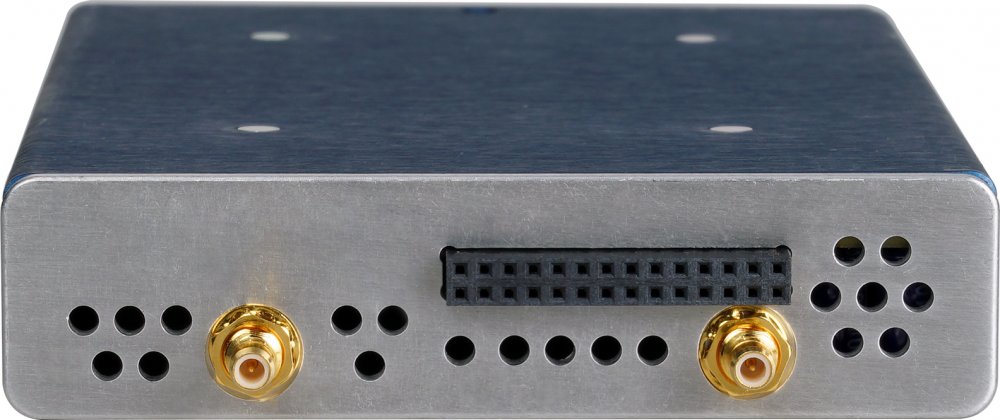

RF Connectors: Host dependent
RF Impedance: 50 ohm
RF Gain Input / Output: 4 dB
RF Amp Noise Figure: .5 dB
RF Amp IP3: +30 dB input
RF Filter Band Pass: 35 MHz
RF Tuning Range: 512 - 698 MHz

MRX214 MODULE
Receivers Per Module: 2
Receiver Modulation: Zaxcom Proprietary Digital
Tuning Range: 512 - 698 MHz
Power Consumption: 160 mA @ 13 VDC

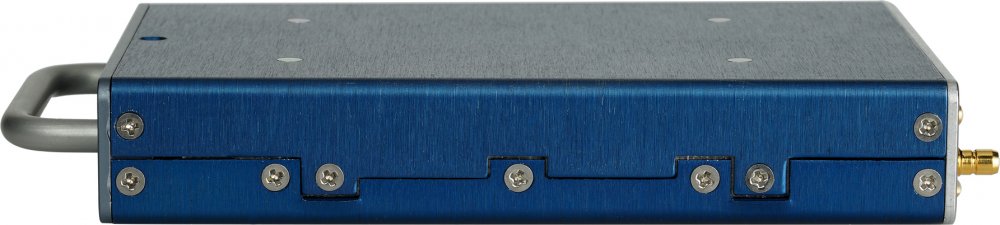

Size: 5" x 3" x .8" (L x W x H)
Weight: 7oz
Manufacturer Part Number : MRX214
