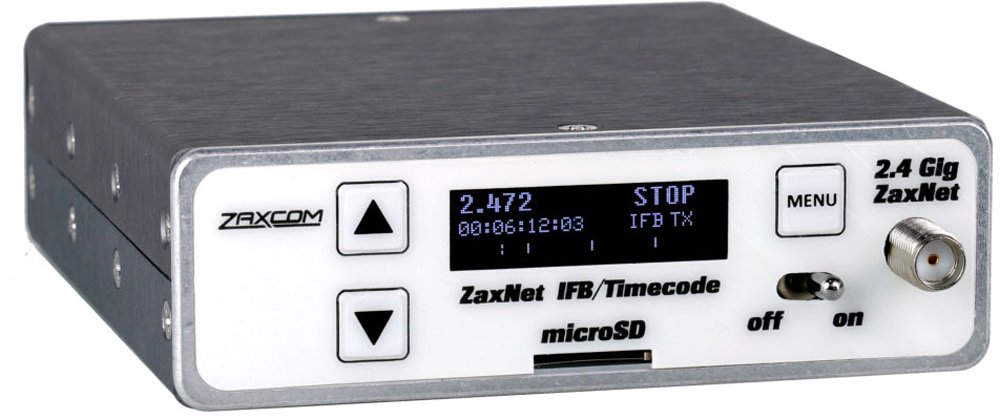

Zaxcom IFB300
MPN #IFB300
IFB audio, timecode & remote control transmitter
The IFB300 is a ZaxNet transmitter that sends high-quality, fully encrypted IFB audio, timecode, and remote control commands to Zaxcom Digital Recording Wireless transmitters and ERX receivers. The signals are carried on a single RF channel ocer 2.4 GHz which can be used license-free in almost any country.
Weighing 7.3 oz, it's constructed from an impact-resistant metal casing that's cool to the touch. A bright OLED display provides easy menu navigation.
CONNECTIVITY
The TA5 audio input offers balanced stereo line level or sample rate converting AES. The BNC connector provides timecode in.
New on the IFB300 is an RS422 port for direct connection to the Zaxom GUI Bridge so you can easily setup URX50/100 and remote control your wireless via any device that can access the internet.
ENCRYPTED AUDIO
The IFB300 transmits using 100% digital modulation and audio is fully encrypted to keep transmissions private, just make sure you don't give the director an ERX with your teams private IFB feed
INERNAL RECORDING
Audio can be simultaneously transmitted and internally recorded to a microSD card using MARF (Mobile Audio Recording Format) which eliminates file corruption common to recordings due to loss of power or early card removal.
THE ULTIMATE FLEXIBILITY
The IFB300 and ZGB combo gives you the ultimate remote control in the palm of your hand. You can remotely chance frequency, input level gain, output power levels, and record status right from the palm of your hand!
Specifications
IFB RF Transmitter
RF Power Output: 75 mW
RF Modulation: Digital Spread Spectrum
RF Frequency Range: 2.403 to 2.475 GHz
RF Frequency Step: 0.001 GHz (1 MHz)
RF Bandwidth: 1 MHz
Channel Separation: 2 MHz
Antenna Connector: 50-ohm SMA Female
Emission Designator: 180 KV2E
FCC Part: CFR Title 47, Part 15
IFB Audio Transmitter
Dynamic Range: 103 dB
Distortion: 0.01%
Frequency Response: 20 Hz to 12 kHz
Highpass Filter: Off or 30 to 220 Hz, Step
System Group Delay: 10 ms
IFB Analog or Digital Audio Input
Connector: TA-5M
Type: Balanced
Level: -10 dBu tp +4 dBu
Impedance: 10 k ?
ADC Bit-depth: 24 bits
ADC Sampling Rate: 48 kHz
Timecode I/O
Connector: BNC
Input Level Range: 1 to 5V, P-P
Output level 2V P-P
Impedance: 75 ?
Timecode Reader/Generator
Clock Accuracy: 1.54 PPM (1 frame out in 6 hours)
Timecode Type: SMPTE
Timecode Frame Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
Physical
Weight: 7.3 oz
Dimensions: 3.6? x 3.23? x 1.0?
External Power: 8 to 18 VDC @ 180 mA
Internal Power: N/A
Display: Graphic LCD Panel
