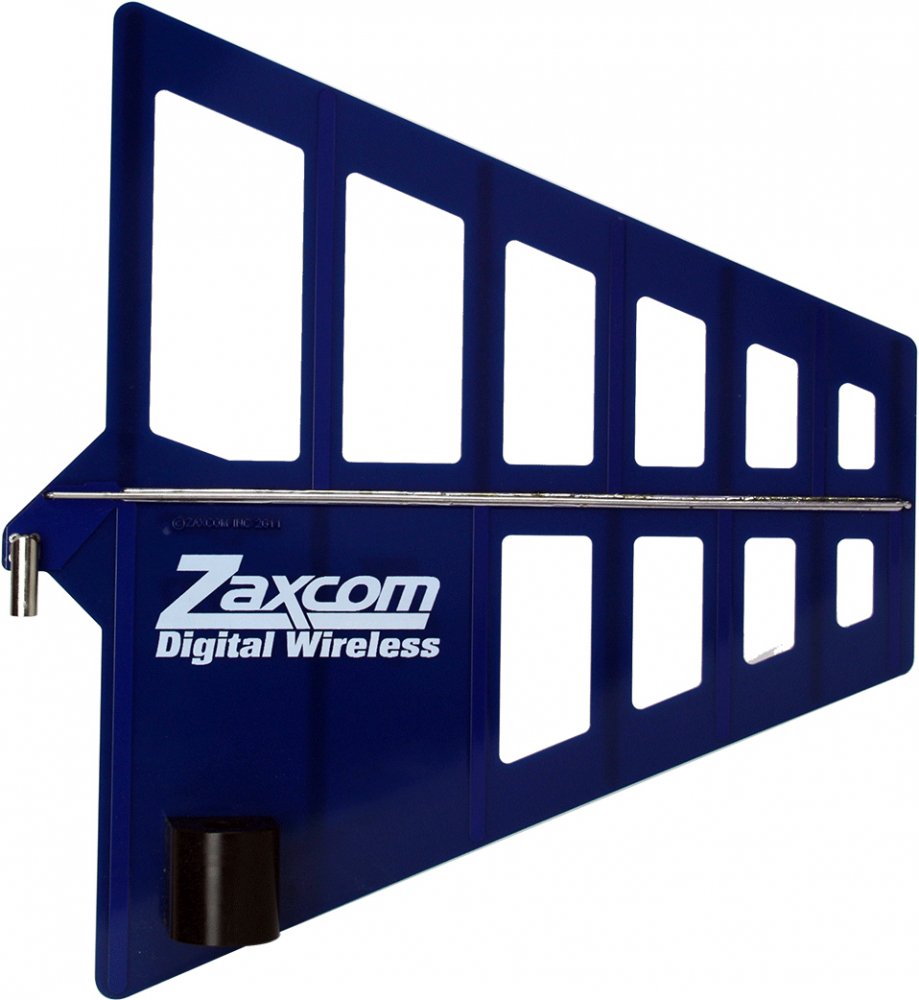

Zaxcom BlueFin

Zaxcom's BlueFin is an aerodynamic 8dB high gain directional antenna for use between the frequencies of 500 and 750 MHz.



It provides a low VSWR for use as a receiving or transmitting antenna. The BlueFin supplies 8dB of forward gain and attenuates interfering signals that are coming from directions greater than 45 degrees off the front of the antenna.

Features

COLORFUL AERODYNAMICS
WIDE BAND RECEPTION: Receives any frequency between 500MHz and 750MHz
AERODYNAMIC: Cut-outs for wind make the BlueFin perfect for exterior locations
REACH FARTHER: 8db of gain, the perfect companion for your QRX

Specifications

IMPEDANCE
50 ohms

CONNECTOR
BNC Female

SIZE
1 x 1

WEIGHT
0.6 Pounds

MOUNTING
5/8 Threaded Microphone Stand Mount

MAXIMUM TRANSMITTER POWER
10 Watts

FORWARD GAIN
8 dB

FREQUENCY RANGE
500MHz to 750MHz

USABLE BEAM WIDTH
90 Degrees
Manufacturer Part Number : BLUEFIN
