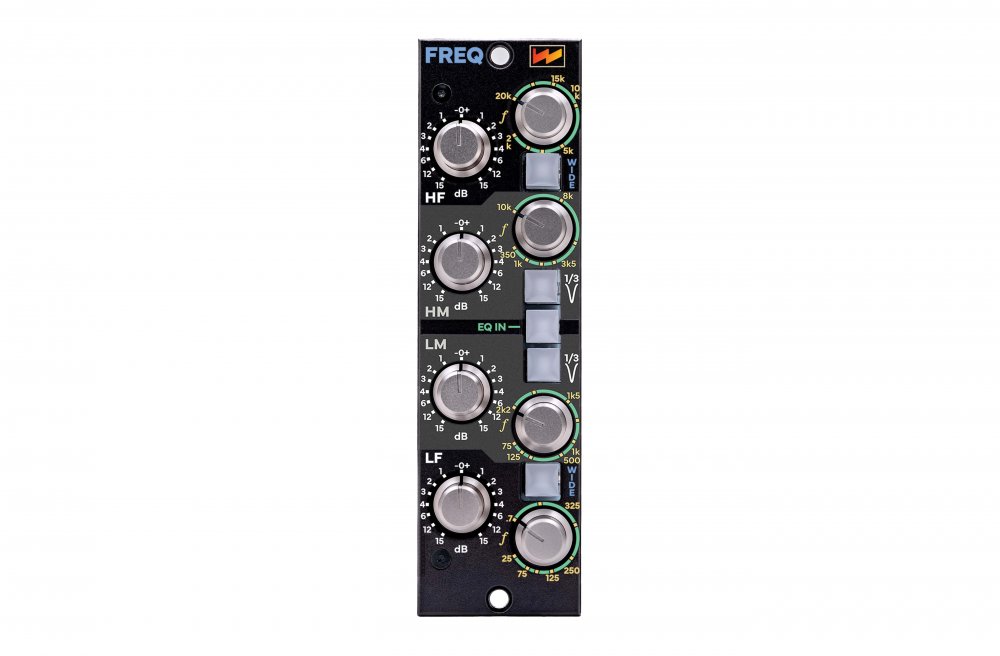

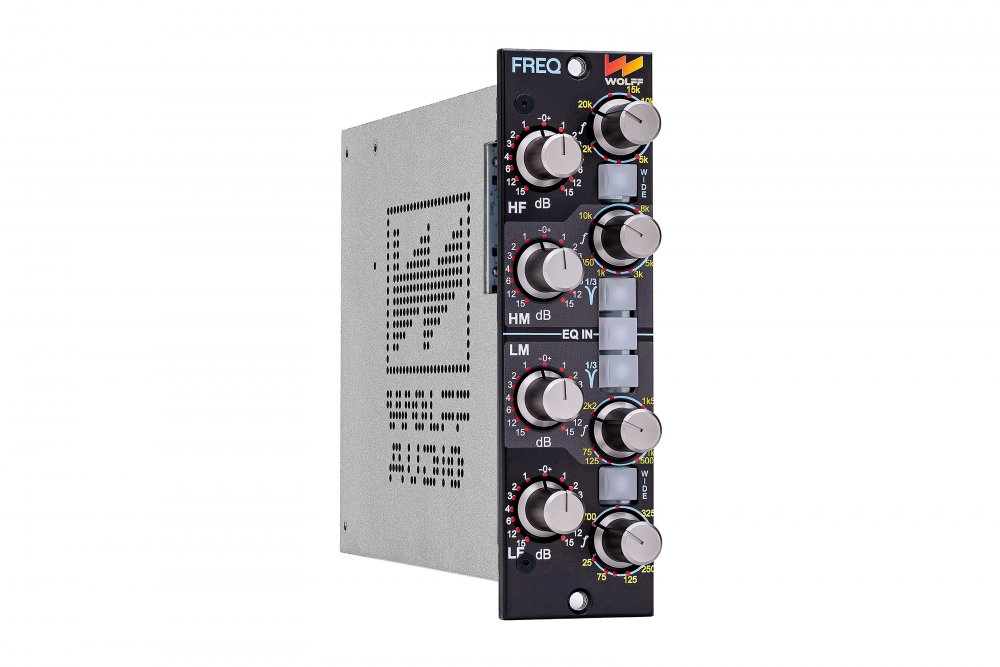

Wolff Audio Freq
UPC/EAN #860013278205
MPN #WLF-FREQ
$1120.00
Save 16.7%, MSRP $1344.00
Sweepable 4-band parametric EQ with Proportional Q, 1/3 octave notching, Cinemag transformer, and bypass switch for precise, clean, and flexible audio shaping.
The Wolff Audio FREQ is a highly versatile 4-band parametric equalizer designed for the 500 Series format. Engineered by Paul Wolff, a legendary name in EQ design, and named by Terry Lewis, this unit blends classic Proportional Q EQ characteristics with modern enhancements for surgical precision and tonal shaping. Whether you're making broad tonal adjustments or tight notches, the FREQ delivers exceptional accuracy and flexibility, making it a must-have for any professional audio setup.
Key features include Proportional Q, where wider Q settings are used for subtle adjustments, and narrower Q settings are applied when making deeper cuts. The HIGH and LOW bands offer a WIDE mode, acting as a gentle 3-octave-wide filter instead of a traditional shelving EQ, minimizing unwanted out-of-band clipping. The two MID bands feature a 1/3 Octave lock for precise frequency notching, helping eliminate problem frequencies with surgical precision. A Cinemag nickel and steel blended output transformer ensures transparent signal integrity with minimal coloration. Additional features include a hardwire relay bypass, a green signal indicator, and low distortion (<0.03%) for clean, high-headroom performance. Whether used for subtle tonal shaping or aggressive correction, the FREQ is built to handle it all effortlessly.
Features
4-Band Parametric EQ with Proportional Q for precise tone shaping.Wide & Narrow Q Modes for smooth boosts or surgical cuts.High & Low Bands with an additional WIDE mode for gentle shelving.Mid Bands with 1/3 Octave Lock for precise notching.Custom Cinemag Output Transformer for transparency and minimal coloration.True Hard-Wire Bypass switch for signal integrity.Green Signal Indicator for easy visual feedback.Low Distortion (<0.03%) and high headroom (+28 dBu clipping onset).500 Series Format for compatibility with professional studio setups.
Specifications
General
500 Series format parametric equalizerCustom Cinemag nickel and steel blended output transformerGreen signal indicatorPower consumption: Less than 100mA per rail
Equalization Features
4-band parametric EQ with Proportional QHigh Frequency (HF): 2K - 20K Hz, with "WIDE" mode (3-octave wide fixed filter)High-Mid Frequency (HM): 350 - 10K Hz, with 1/3 Octave Lock for surgical notchingLow-Mid Frequency (LM): 75 - 2K2 Hz, with 1/3 Octave LockLow Frequency (LF): 25 - 700 Hz, with "WIDE" mode (3-octave wide fixed filter)Proportional Q: Wide Q for minor adjustments, narrows as boost/cut increases1/3 Octave Lock on mid bands for precise problem frequency control
Performance & Audio Quality
Hardwire relay bypass switch (true bypass)Distortion: Less than 0.03% at 100Hz and higherDistortion primarily 3rd harmonic below 150HzClipping onset at +28 dBu
