Wisycom SPL2216
MPN #SPL2216
Wideband active antenna combiner/splitter: 2 x 2 (diversity) input are combined and then distributed in 16 x 2 (diverty) outputs

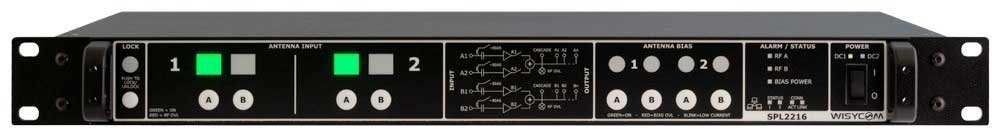

It allows a basic matrix-selection between 2 diversity areas: each input feed can be activated with a button on the front panel.
It provides antenna bias & diagnostic check and integrates the Wisycom Remote Antenna Protocol: using the same coaxial cable it creates a network to monitor and control remotely boosters (BFA) or antennas (LFA).
Thanks to the ethernet interface all of these functionalities can be supported on the PC using the Wisycom Wireless Manager program.
Features
Wideband: 170-1260 MHzHigh Rf robustness and linearity: for high density/equally spaced frequencies operations (i.e. with MTP40s Linear)Able to feed 16 diversity receiversCombine/Select signal from 4 antenna inputsRedundant DC supply and antennas diagnostic featuresWisycom Remote Antenna Protocol to control antennas/booster remotely thru coaxEthernet interface to access all of feature with a PC, making presets and real time monitoringCascade output to connect another SPL2216 or monitor devices
Specifications
Frequency ranges: 170 ÷ 1260 MHz
Input/output gain: +5dB approx.
OIP3Input/cascade gain: +1.5dB approx.
Amplifier linearity: ± 1 dB (typical)
Noise figure: 7,5 dB
Antenna booster powering: +12Vcc / 500mA MAX (for each BNC-female input connector A & B)

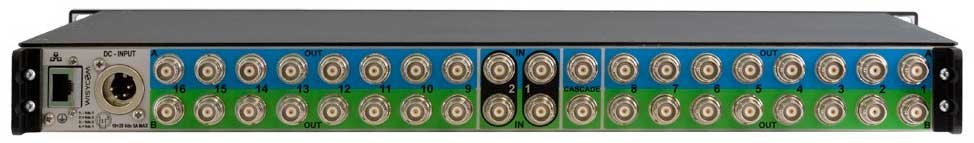

Connector:
input: 2+2 BNC-F
output: 16+16 BNC-F (SPL2216)
8+8 BNC-F (SPL2208)
cascade: 2 BNC-F
Impedance: 50
Managing interface: 10/100 Base TX Ethernet port and thru frontal tactile buttons
Power supply:
10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
1: -Vdc1
2: +Vdc2
3: -Vdc2
4:+Vdc1
Power consumption: 40W max
Temperature range : -25 ÷ +55 C
Material: aluminum
Finishing: black varnish
Dimensions: 44 x 483 x 351 mm (HxWxD)
Weight: 3 kg
