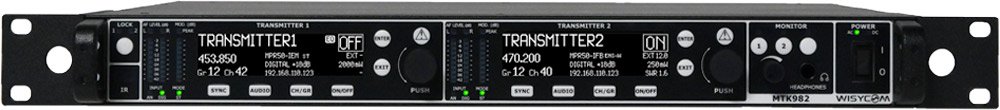

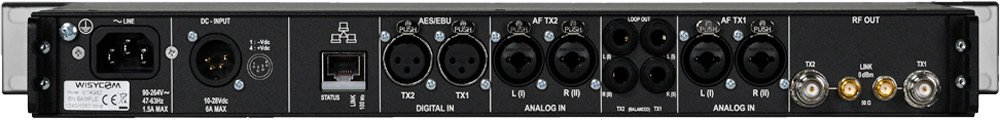

Wisycom MTK982
MPN #MTK982-US
UHF Rack Dual Transmitter, Mono/Stereo/Intercom digital direct synthesis (DDS), Up to 300 MHz bandwidth in 470/1260 MHz range (USA/Canada)
The Wisycom MTK982 is a versatile dual wideband, stereo IEM/IFB transmitter. The MTK982 provides the highest audio quality, extremely low spurious emissions, and is capable of generating multiple types of RF modulations.
Options:
DC: DC power supply (10-28VDC)
Features
330 MHz BandwidthDirect Digital Synthesis (DDS) of signal for the highest flexibility and qualityStereo, mono, and intercom audio modulationDSP audio processing (40bit floating point / 2Gflops) with multi-compandingLow interference output stage with wideband intermodulation phase cancellation2400 user-defined frequencies (40 groups by 60 channels.)Analog & digital input (AES3)Output power up to 2 WattRedundant power supply 230/110 Vac & 12 VDC (DC option)SWR (Stationary Wave Ratio) sensing on antenna outputsPrimary/Secondary outputs for distributed applications
Specifications
Frequency ranges:
EU: 470-700 MHz
US/CA: 470-663 MHz
JP1: 470-714 MHz
JP3: 1240-1260 MHz
Switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user customizable
Switching-window: 330 MHz tuneable
Frequencies: 5 kHz steps
RF Power: switchable typ. 10,20,30,50,75,100,150,200,250,400,500,750,1000,1200,1500,2000 mW (ERP)
Max RF output power: 2 Watt
NOTE: RF power can be limited on frequency base accordingly to specific country restrictions (software based)
Antenna connector: 2 x BNC type female
M-S I/O: 2 x SMA BNC type female connectors
RF impedance: 50 ?
Modulation: FM, MPX Stereo or mono, selectable with dedicated menu
Peak deviation: ±56 kHz for mono wideband, ±35 kHz for mono narrowband, ±48 kHz for stereo (preset mode)
Spurious emissions: < 2 nW
Noise Reduction system:
ENR , ENC, ENS
NONE-d50, no compander, pre-emphasis 50 ?s
NR, to work with Wisycom Intercom system
Other compander on request
AF bandwidth:
20÷20kHz (mono)
30÷15kHz (stereo)
NOTE: custom setting can change audio bandwidth (3/4/12/15/20kHz)
Audio input connector: XLR-3 / 1/4" (6,3mm) jack combo socket, electronically balanced
Audio input level: +18dBu
Pin Assignments:
XLR: 1=ground 2=hot 3 =cold
6.35mm (1/4") TRS: Tip=hot Ring=cold Sleeve=ground
Digital output: AES3 on XLR-3M (32kHz ÷108 kHz)
Monitor output: 6.35mm (1/4") jack socket, balanced
Monitor output level: 20+120mW@24? , 80+80mW@150?
Monitor out impedance: 25? for auricle
Managing interface: 10/100 Base TX Ethernet port on RJ45 connector
Display: 64 x 256 OLED (yellow)
Power supply: 90 - 264 V AC, 47/63 Hz
MPX Pilot tone: 19kHz
Tone squelch:
32.789Hz (for Wisycom wireless microphone, i.e. ENR/ENC)
131,8 (for Wisycom intercom, i.e. NR)
NOTE: custom setting can change the Tone squelch (30-260Hz and 18-38KHz)
DC options: 10-28 Vdc, 6A max
Temperature range -10 ÷ +55 C
Dimensions: 19"/1U 43,8 x 483 x 349 mm (HxWxD) with brackets
Weight: 4 Kg
