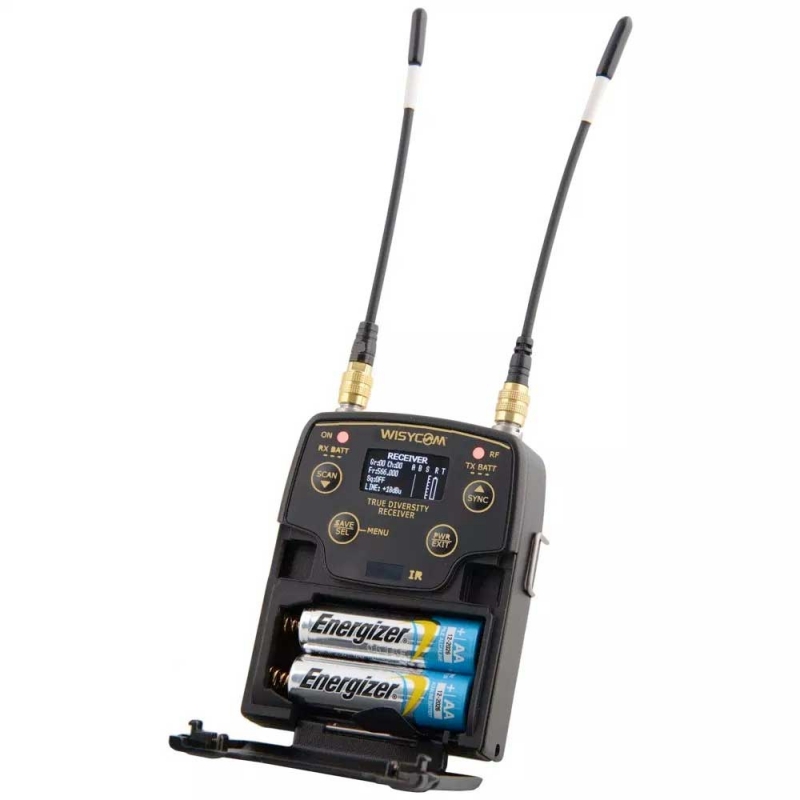

This receiver features a real TRUE DIVERSITY configuration along with a unique wide-band tuning range of 230 MHz of bandwidth.

The software selectable

analogue and digital outputs

wideband and narrowband DSP-FM operation

gives users options based on their project needs.

The receiver also offers convenient function buttons, including a dedicated frequency scan option.
Battery management is flexible as it features standard battery packs that can be charged with the dedicated charger or through the micro-USB-B connector.

True diversity receiver
DSP Analogue & Digital Audio Output (AES3)
230 MHz bandwidth

Wideband and Narrowband DSP-FM operation (SW selectable):

Narrowband allows more 50% band efficiency

Narrowband allows about 3dB extra sensitivity and noise immunity

High contrast OLED display
Automatic scan & transmitter programming through infrared
DSP based for extreme flexibility and multicompanding operations

Miniature design with integrated battery pack:

rechargeable lithium pack

2 x AA batteries

Operation and charger (lithium) thru USB connector

Monitor & control through USB and Wisycom Manager 2.0 (computer SW):

This transform MPR51 in a quick portable spectrum scanner!

Frequency ranges

470 ÷ 700 MHz

Switchable channels

2400 managed in 40 groups ofr 60 frequencies completely user customizable

Switching-window

Up 230 MHz

Frequencies

microprocessor controlled frequency synthesizer circuit, with 25 kHz minimum step;

frequencies is easily PC reprogrammed with USBmini interface or optional UPKmini programmer

Frequency error

< ± 2.5 ppm, within the rated temperature range

Modulation

FM mono, wideband or narrowband IFB (SW selectable)

Peak deviation

±54 kHz (wideband), ± 40 kHz (narrowband)

Antenna input impedance

50 ohm sma type (SWR < 1:2; typ. 1:1.4)

Sensitivity

2 V ( 6 dBV), for SND/N > 52 dB; in the whole switching-window **

Amplitude response

< 0.5 dB (for RF input signal:6 dBV ÷ 100 dBV)

Co-channel rejection

> 80 dB typical (for channel spacing 400 kHz)

Spurious emissions

< 2 nW (typical = 0.1 pW)

Noise Reduction system

ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized

ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis

ENS (for live application)

Others, compatible with most systems, thru an internal DSP emulation of SA572, SA575 and Rms envelope compander chip set, fully user programmable

AF bandwidth

30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 15 kHz (narrowband)

Frequency response

± 0.5 dB in the 30 Hz ÷ 19 kHz range (wideband)

± 0.5 dB in the 30 Hz ÷ 13 kHz (narrowband)

Distortion

0.3 % typical

SND/D ratio (Analogue)

104 dB typical**

SND/D ratio (AES3)

> 125 dB typical

Audio output

Electronically balanced on 3 pin mini-XLR Female connector

analogue or digital (SW selectable), impedance 200 ohm

Audio output level

MAX +18 dBu (peak deviation), adjustable in one dB step in a range of 54 dB

Digital output

AES3 @ 48 kHz

Monitor output

Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread)

Monitor output level

2 X 100mW @ 32 Ohm

Managing interface

Infrared/micro-USB

Display

OLED 128x64 (white)

Front buttons

Simple operation with 4 buttons to quickly monitor and setup the receiver.

One touch function for a frequency scan and sync function.

Powering
2 x IEC-LR6 1.5V size-AA alkaline or NiMh rechargeable

C3-V3 battery pack

KLIC 8000 or CR-V3R lithium (i.e. DR9708 duracell)

Battery life

approx. 7 hours with MPRLBP Lithium-ion battery pack CS-KLIC8000 type

Temperature range

-10 ÷ + 50 C

Dimensions

91mm x 71.5mm x 27mm (HxWxD) with clip

Weight

100 g approx. without batteries

*RMS value, A-weighted, 22 Hz / 22 KHz
