TWO TRUE DIVERSITY CHANNELS
With four internal receiver boards, the MCR54 boasts an unprecedented capacity for range and reliability.

MULTI-BAND
Wideband just isn't enough anymore!

Upgrade to a dual band system of 470-663 MHz & 940-960MHz to find your frequency, anywhere in the United States.

HIGH DENSITY
With the combination of Narrowband Modulation and Linear transmitters, set your channels every 200kHz without intermodulation distortion and get an extra 3dB sensitivity.

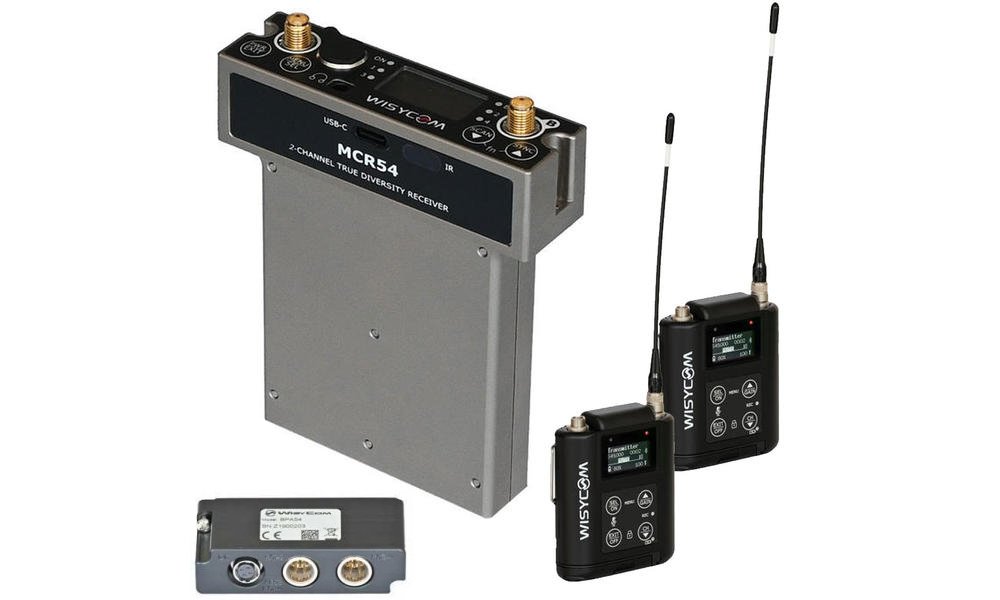

KIT INCLUDES:
1x MCR54 receiver with stand-alone or slot-in or adapter
2x Transmitters MTP60, Wide Tuning Range (470-663 & 940-960 MHz)
1x SLK54 back plate adaptor

MCR54 is a quadruple true diversity wireless microphone receiver system in a modular stand-alone or slot-in configuration. It's compatible with most camera's slots and multi-slot mixer accessories.

MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.

MTP41S is an extremely small and light pocket transmitter especially designed for professional wireless microphone applications. Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. It benefits of the LINEAR feature @20L power setting: allows EVENLY SPACED frequency allocation intermodulation free.

MTB40S LINEAR is an extremely small and light plug-on transmitter especially designed for professional wireless microphone applications. It benefits of the LINEAR feature @20L power setting: allows EVENLY SPACED frequency allocation intermodulation free.

SLK54-IK is a "SUPERSLOT/UNISLOT" kit for Ikegami, Panasonic, SuperSlot.

MCR54 Features:
Two channel true diversity receiver (4 receiver boards)
Exceptional compactness and high robustness
DSP analogue & digital audio output (AES3)
Up to 790 MHz bandwidth in 470/1260 MHz range
Multiband front-end filtering, high Q electronically tunable filter in 470-800 MHz, 1st narrowband filter 823-832 MHz, 2nd narrowband filter 940-960 MHz
Sofware selectable wideband and narrowband DSP-FM operation
Narrowband allows more 50% band efficiency
Narrowband allows about 3dB extra sensitivity and noise immunity
Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
High contrast OLED display
Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
DSP based for extreme flexibility and multi-companding operations
Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
Rear audio and power adapter

MTP60 Features:
The multi-band MTP60 currently has the widest tuning range of any wireless transmitter on the market (470 to 1075MHz)
Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
Dedicated hardware allows accurate real time position monitoring with advanced user interface
Advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
Embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
Enhanced robustness against self-interferences and antenna performances thru a proprietary "intermodulation cancellation" circuit
An integrated haptic engine that gives tactile feedback with different vibration patterns
FPGA based signal processing allows easy switching between wide and narrow band operation
Miniature design with flexible PCB (no connectors) for extended reliability
New ENS compander for a totally clear sound
Powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh)
Bluetooth interface and mobile app allows full control from mobile or tablet
Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
Bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
Max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
48V phantom power to use wired mic thru the PHA60 accessory
