Wisycom MCR54-B2 Dual

MPN #MCR54-B2 Dual

$3584.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

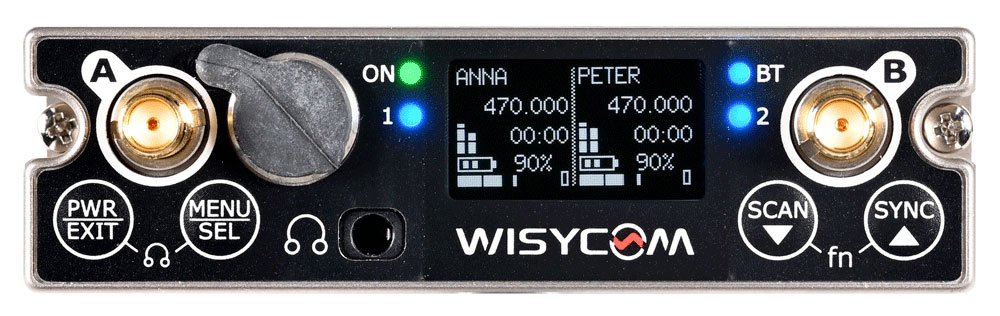

Dual multiband true-diversity miniature (camera) receiver with up to 790 MHz bandwidth

MCR54 DUAL is a camera dual true diversity wireless microphone receiver system in a modular stand alone or slot in configuration.

Each receiver has a dedicated filter and then can be tuned independently.

B2 is for Europe and USA market
Tunable: 470 - 800 + Fixed Band 1:823 - 832 + Fixed Band 2: 940 - 960 MHz (USA/EU)

Features

2 channels True Diversity receiver with indipendent tuning (4 Receiver boards!)

Exceptional compactness and high robustness

DSP Analogue & Digital Audio Output (AES3)

Up to 790 MHz bandwidth in 470/1260 MHz range

Next Gen Multiband front-end filtering:

High Q electronically tunable filter in 470-800 MHz

1st narrowband filter

2nd narrowband filter

Wideband and Narrowband DSP-FM operation (SW selectable):

Narrowband allows more 50% band efficiency

Narrowband allows about 3dB extra sensitivity and noise immunity

Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup

High contrast OLED display

Automatic scan & transmitter programming through infrared and Bluetooth 5

DSP based for extreme flexibility and multi-companding operations

Monitor & control through USB C or Bluetooth 5 on Wisycom Manager v3.2.1 (computer SW)

Rear antenna connectors and micro audio and power adapter

Specifications

Frequency range: MCR54 B2: 470 ÷ 800 + 823÷832 + 940÷960 MHz (USA/EU)
Switchable channels: 2400 user programmable frequencies, organized in 40 groups of 60 channels
Switching-window: up 790 MHz, each receiver can be tuned independently.
Frequencies: microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step.
The frequencies can be easily PC reprogrammed with USB C, Bluetooth 5 (long range) or optional UPKmini Programming
Frequency error: < ± 2.5 ppm, in the rated temperature range
Modulation: FM mono, wideband or narrowband IFB (SW selectable)
Peak deviation: ±54 kHz (wideband), ± 40 kHz (narrowband)
Antenna input impedance: 50 ohm sma type (SWR < 1:2; typ. 1:1.4)
Sensitivity:
2 ?V ( 6 dB?V), for SND/N > 58 dB;
5 ?V (14 dB?V), for SND/N > 98 dB
in the whole switching-window*
Amplitude response: < 0.5 dB (for RF input signal:6 dBµV ÷ 100 dBµV)
Adjacent chan. selectivity: > 60 dB typical (for channel spacing ? 400 kHz in WB and ? 250 kHz in NB)
Spurious emissions: < 2 nW (typical = 0.1 pW)
Noise Reduction system:
ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized
ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis
ENS (for live application)
Others, compatible with most systems, thru an internal DSP emulation of SA572, SA575 and Rms envelope compander chip set, fully user programmable
AF bandwidth: 30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 17 kHz (narrowband)
Frequency response:
± 1 dB in the 30 Hz ÷ 20 kHz range (wideband),
± 1 dB in the 30 Hz ÷ 17 kHz (narrowband)
Distortion: 0.3 % typical
SND/D ratio (Analogue): 100 dB typical*
SND/D ratio (Digital): > 125 dB typical
Audio output: Electronically balanced on 5 pin mini-XLR Female connector analogue or digital (SW selectable)
Digital sample rate: AES3 @ 48 kHz
Monitor output: headphone 3.5 mm jack socket
Managing interface: USB C, Bluetooth 5 (long range)
LEDs:
2 multicolour RGB LEDs to easy indicates Power & Bluetooth 5
2 multicolour RGB LEDs to easy indicates the audio status of the 4 RX
Display: OLED 128x64 (white)
Powering
- External = 6 ÷ 18 Vdc (3 W max)
- Autonomous. = with optional BCA 54 Battery Module
Power consumption: 1,85 Watt max (with 2 active receivers), 1,5 Watt max (with 1 active receiver)
Temperature range: -10 ÷ +55 °C
Dimensions: 104 x 87,6 x 25 mm (H x W x D)
Weight: 285g
*RMS value, 22 Hz / 22 kHz, unweighted
