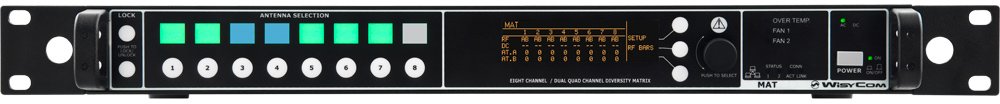

Wisycom MAT244-US
MPN #MAT244-X1
Wideband diversity matrix/combiner (150-1160MHz)
MAT244 is very flexible combiner especially designed to manage RF in a multi-site production environment.
It can:
- route RF in several possible configurations
- control antenna remotely,
- manage attenuation/boost for the different areas,
- monitor RF and interferences thru and integrated RF meter.
All of this can be done remotely thanks to an Ethernet interface and a very intuitive PC software.
MAT244 can be configure locally of by SW as a diversity combiner 4:2 with 6dB gain or in a non-diversity combiner 8:4 / 8:1
Features
Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)Wide bandwidth 150-840 MHz operationRemote management and monitor of alarms thru Ethernet 10/100 base TXAntenna booster supply toggled on each input independentlyVoltage and current monitoring on each booster supply with alarmProgrammable attenuators on each inputsRemote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)light window where the user can enter their own text to identify the 8 areas
Specifications
Frequency ranges:
150 ÷ 840 MHz (MAT244)
150 ÷ 960 MHz (MAT244X)
Input/output gain:
7 dB (Combiner 8:1)
0 dB (Combiner 8:4)
7 dB (Combiner 4:2)
OIP3:
30 dBm typ. (Combiner 8:1)
24 dBm typ. (Combiner 8:4)
30 dBm typ. (Combiner 4:2)
Amplifier linearity: ± 1 dB (typical)
Noise figure: 5.5 dB (each channel)
Antenna booster powering:
+12Vcc / 800mA MAX for ports 1A, 1B [2x4:2 conf] or for port 1,5 [other configuration]
+12Vcc / 230mA MAX (other ports)
Connector:
input: 8 BNC-F
output: 4 BNC-F
Impedance: 50
Managing interface: 10/100 Base TX Ethernet port
Display: 64 x 256 OLED (yellow)
Power supply: AC connector 90÷264Vac /47÷63Hz, (fuse protected) T2A-50W max
Temperature range: -25 ÷ +55 C
Material: aluminum
Finishing: black varnish
Dimensions: 44 x 483 x 398 mm (HxWxD)
Weight: 3,7 Kg
