Wisycom BFLR1
MPN #WSY-BFLR1
Wisycom BFLR1 RF over Fiber module, 170"1260MHz range, converts optical to RF, supports ANT/IFB modes, Bluetooth control, OLED display, 9"18Vdc powered

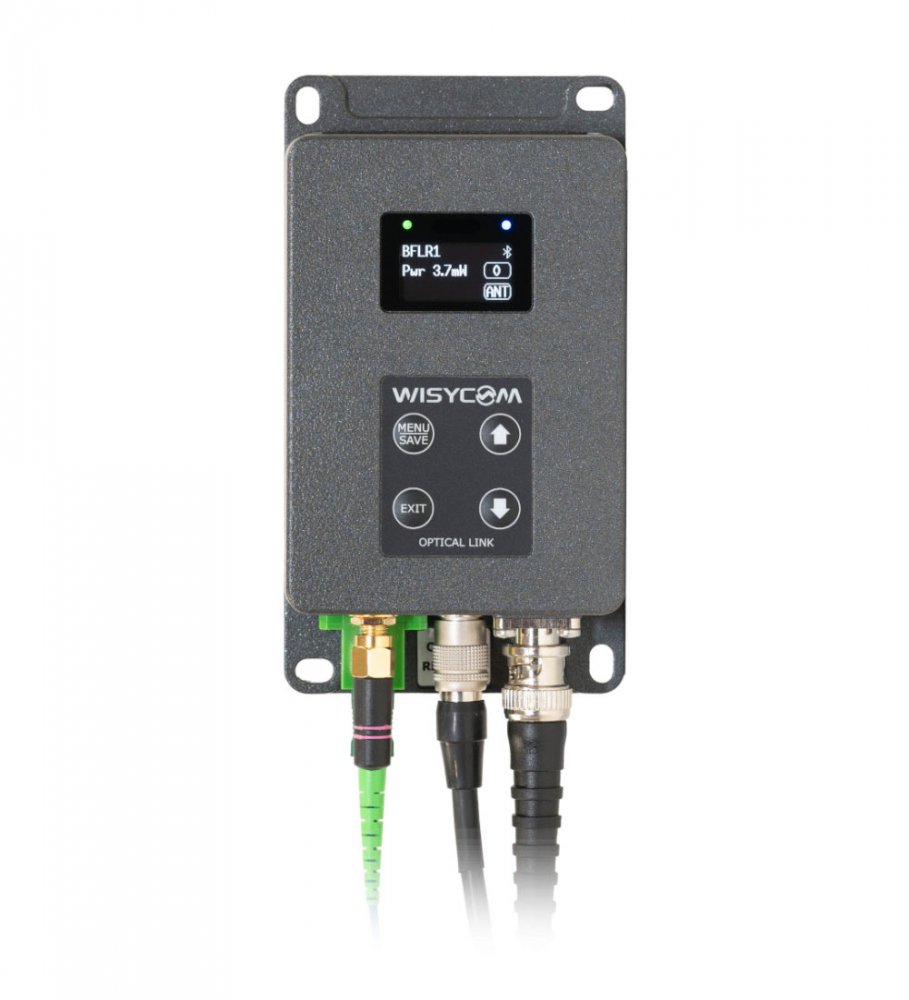

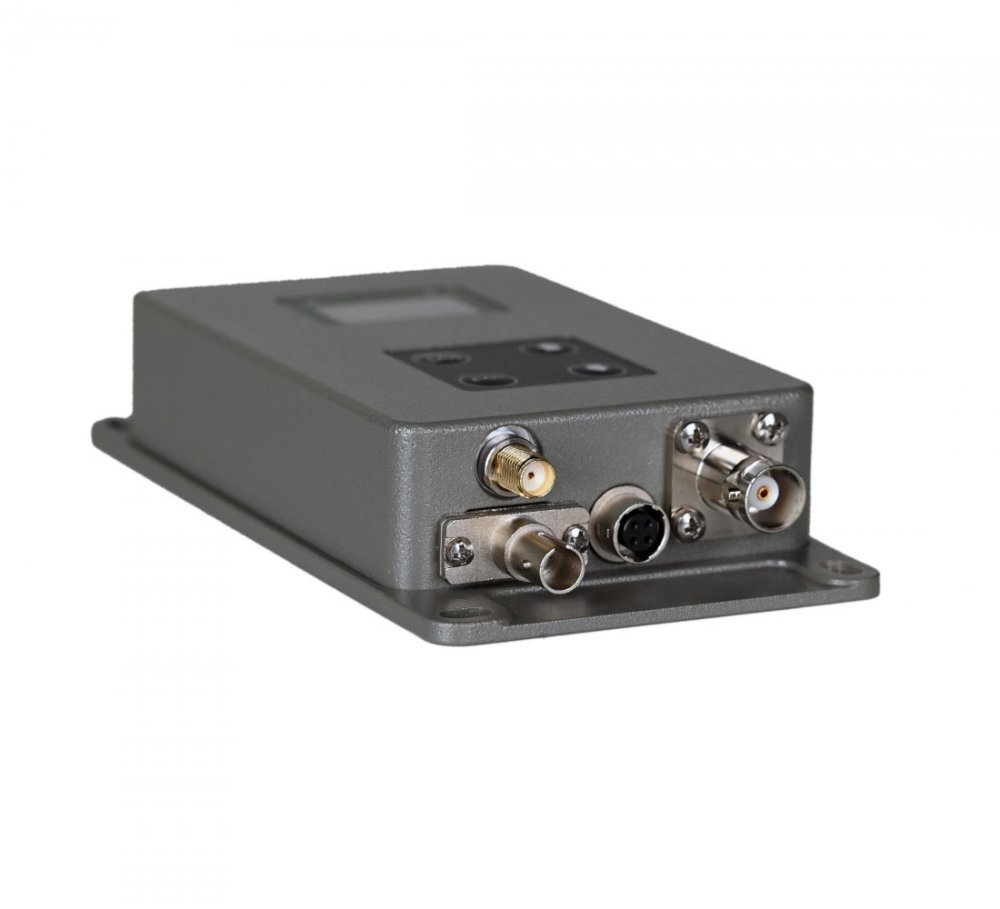

The Wisycom BFLR1 Module is a compact RF-over-fiber receiver designed to convert optical signals into RF with precision and reliability. Ideal for professional broadcast and live production environments, it supports two operating modes: ANT mode for receiving signals from remote antennas, and IFB mode for sending low-power IFB/IEM signals over fiber.
With a wide RF bandwidth of 170"1260 MHz, integrated Bluetooth control via the Wisycom BT App, and a high-contrast OLED display, the BFLR1 offers flexible, real-time configuration. It features selectable bandpass filters, remote power capabilities, and a durable design-making it a powerful tool for expanding and stabilizing wireless coverage in complex RF environments.
Features
RF Over Fiber Conversion: Converts optical signals back into RF signals using an internal photodiode.Dual Operating Modes: Supports ANT mode for remote antenna reception and IFB mode for low-power IFB/IEM signal transmission.Wide Frequency Range: Operates across 170-1260 MHz for broad RF coverage.Bluetooth App Control: Real-time monitoring and parameter adjustment via the Wisycom BT App.External Amplifier Support: Provides 12V, 200mA DC power for external devices like PAW or LBP amplifiers (in IFB mode).Smart LED Indicators: Dual RGB LEDs show system status, RF overload, Bluetooth activity, and alarms.High-Visibility OLED Display: Includes 128 - 64 pixel white OLED with intuitive 4-button interface.Flexible Power Options: Runs on 9-18 VDC and supports power over RF connector in ANT mode.Compact and Durable Design: Features M4 screw mounting and operates in temperatures from -10 degree C to +55 degree C.
Specifications
General Specifications
Product Name: Wisycom BFLR1 ModuleType: Portable RF over Fiber unitFunction: Converts optical signal to RF signal via photodiode
RF Specifications
Frequency Range: 170 to 1260 MHzRF Connector: BNC F or N F on requestAntenna Booster Output: 12 Vdc 150 mA maxExternal Amplifier Power: 12 Vdc 200 mA maxTunable Filter: 470 to 758 MHz with 40 MHz bandwidthFixed Filter Versions: F1 for Europe USA UK, F2 for Japan KoreaSelectable Band Pass Filters: 17 combinationsRF Working Modes: ANT for reception, IFB for transmission
Optical Specifications
Optical Connector: SC APC, ST APC or LC APC on requestOptical Power Output: 6 dBmWavelength Output: 1550 nmInput Optical Power Range: minus 6 dBm to plus 6 dBmWavelength Range: 1300 to 1650 nm
Interface and Display
Control: 4 button interface with display menuRemote Control: Bluetooth 5 via Wisycom BT AppDisplay: 128 x 64 pixel OLED white display
Indicators
LEDs: Dual RGB LEDs for RF overload, booster, status, alarms, Bluetooth
Power Specifications
Operating Voltage: 9 to 18 VdcConnector: Hirose 4 pinPower Consumption BFLT1: 2 W to 3.5 WPower Consumption BFLR1: 1.2 W to 3.5 W
Mechanical Specifications
Mounting: 4 M4 screw holesTemperature Range: minus 10 to plus 55 CelsiusDimensions: 70.2 x 127.1 x 26.1 mm
