Wisycom ADFA-B-F2

$1164.00

Save 10%, MSRP $1293.00
Free shipping in Canada. Conditions

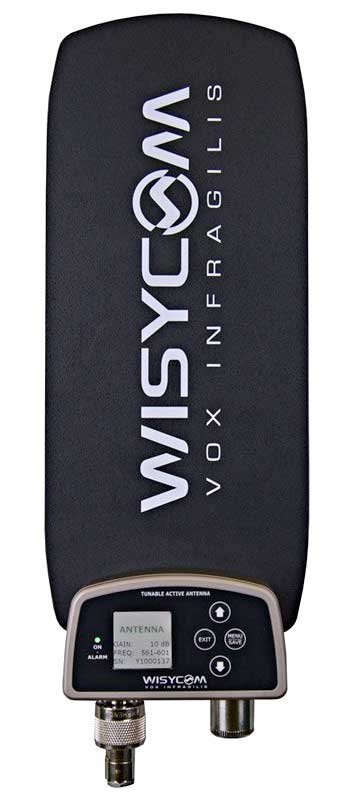

The Wisycom ADFA is an omnidirectional antenna with a unique design to achieve an ultra-wideband range.



The ADFA integrates a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4-key navigation button and a TFT display, or remotely with data connection on the same RF coaxial cable.

Using the latest Wisycom filter technology, the ADFA antenna gives full control of RF zones and allows users to build flexible and remote-controllable antenna systems.

Features

Wisycom ADFA Wideband Omnidirectional Antenna - Features:
  • Huge reception band: 410 to 730 MHz and 940 - 960 MHz
  • Remote controllable thru coax cable
  • RF gain from -12 to +27 dBu (1 dB step)
  • Easy configuration thru a TFT display
  • Tunable filter for interference control
  • Antenna off for RF zone disabling
  • Fixed band saw filter
  • (3) High Pass and (3) Low Pass filters
  • Waterproof with gasket sealing
  • Specifications

    The ADFA-B-F2 model has a BNC connector with the following filters:
  • Tunable Filter: 410 - 730 MHz
  • Selectable Filter:
  • High Pass: 470/520/550 MHz
  • Low Pass: 617/663/698 MHz
  • Fixed Filter: 940 to 960 MHz (USA/Europe)

  • Antenna
    Gain: 3 dBi typical
    Bandwidth: 410 to 730 MHz and 940 - 960 MHz
    Polarization: Vertical

    Booster
    Control: Display menu or remote thru coaxial cable (thru MAT244/MAT288/SPL2208/SPL2216)
    Gain: -12 to 27 dB typical (1 dB step selection)
    Bandwidth: 410 to 730 MHz and 940 - 960 MHz
    Gain Flatness: ± 1 dB
    Powering: +12 Vdc/65mA (Green LED, up to about 15 dB of gain);+12 Vdc/110mA (Blue LED, up to about 15 dB of gain)
    Full bandwidth bypass (0.8 dB attenuation) and RF OFF function

    Filter
    Tunable: 410 - 730 MHz

    Selectable
    High Pass: 470/520/550 MHz
    Low Pass: 617/663/698 MHz
    Fixed Filter: 940 to 960 MHz (USA/Europe)

    Mechanical
    Display: TFT - transflective (176 x 176 pixels, RGB)
    Material: Epoxy fiberglass
    Finishing: Black Matte textured weather-resistant coating
    Mounting: 5/8" and 3/8" thread (metal support and mounting base)
    Dimensions (H x W x D): 12 x 4.4 x 1.1 in | 305 x 111 x 28 mm
    Weight: 11.1 oz | 315 g
    Manufacturer Part Number : WSYADFABF2
