Stereo/dual mono next generation bus compressor with digital recall and 100% analog signal path
Legendary sound of Stereo Bus compressor has been true companion on countless recordings since 40 years. Often recognized as "mixbus glue", this particular compression sound have become industry standard. Now, we improve this design creating whole new level of versitality with unbeliveble modern DAW integration -
We present ngBusComp - fully analog, dual mono, stereo, mid-side compressor, with digital recall.

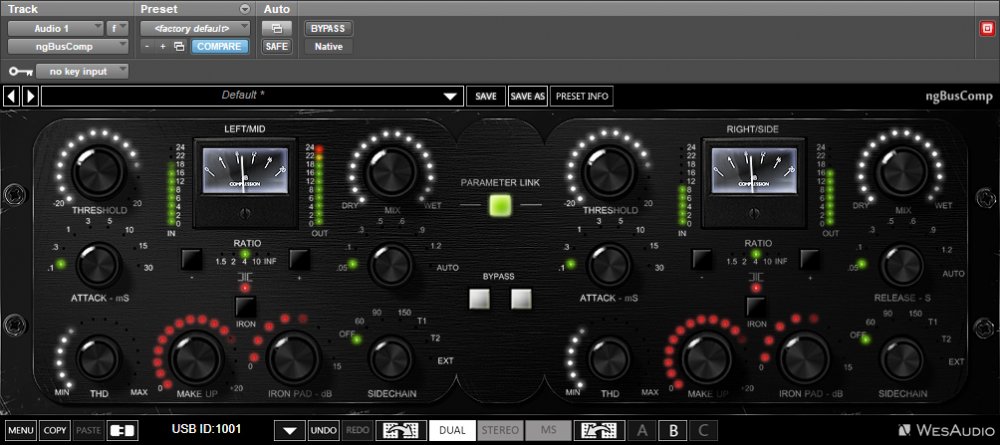

100% analog device with +26dBu of headroom powered by QUAD VCA THAT 2181,Dual mono and stereo compressionMid-side modeTwo selectable output stages - normal(electronically balanced), IRON (transformer balanced)IRON PAD - passive attenuator enabled in IRON mode allows to drive output transformer for musical saturationFlexible DAW/Live plug-in control for instant recallControllable thorugh standalone WesAudio applicationRelative parameter linking for better unit managementMIX KNOB FOR PARALLEL COMPRESSIONDetailed metering for both channels - Gain reduction, input and outputTHD - Proprietary THD with precise variable controlSide chain filters - 3 high pass filters at 60,90 and 150 Hz, and 2 tilt filters which are special "curve" designed filtersExternal side chain for each channel via TRS back connectorFIVE RATIO SETTINGS - 1.5:1 and 2:1 for gentle mixbus processing, 4:1 and 10:1 for large variety of applications, and INF (crash) mode!Management via Ethernet or USBA/B/C compare featureTOTAL RECALL AND PLUGIN CONTROL compatible with most DAWs.ANALOG AUTOMATION in DAW.5 Touch sensitive encoders per each channel allow to record automation in DAWFully digitally controlled and isolated analog circuit,True bypass,Free software and firmware upgrades.Size: 3U
THD+N(20Hz-20kHz) at 0dBu < 0.006%Frequency response: 0-300kHz (-3dB)Input impedance > 10kohmOutput impedance < 50ohmChannels crosstalk > 90dBMaximum input level: +26dBuMaximum output level: +26dBuDynamic range > 120dBAttack: 0.1, 0.3, 1, 3, 10, 30 (ms)Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)Ratio: 1.5, 2, 4, 10, INFSidechain Filter: 60, 90, 150, T1, T2THD: 0% to 8%
