WesAudio _Phoebe
MPN #_phoebe

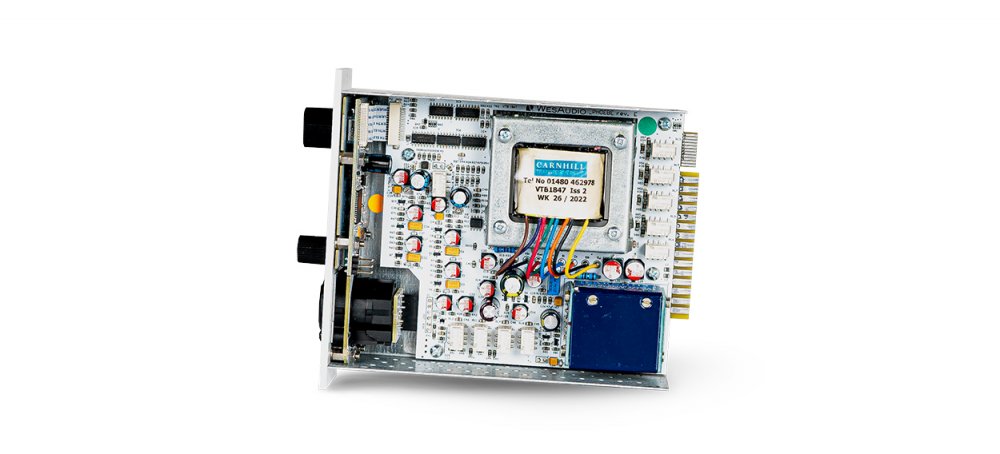

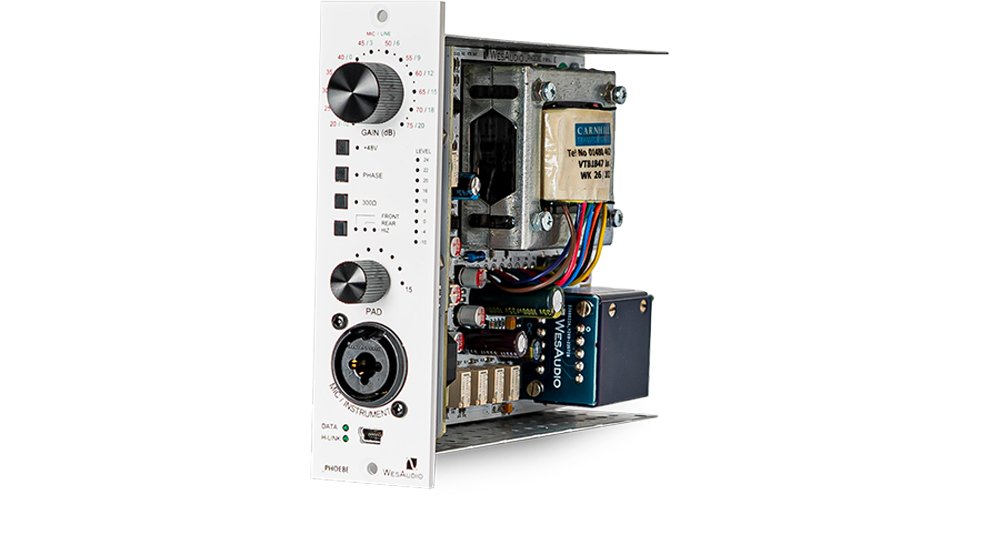

Class A microphone/line/instrument preamplifier with 100% analog signal path and digital recall
The most noble character of microphone preamplifiers now fully integrated with digital workflow. Dual amp vintage design with most demanded modern features! We are proud to present _PHOEBE " NG500 fully analog, Class A microphone/line/instrument preamplifier with digital recall.
Features

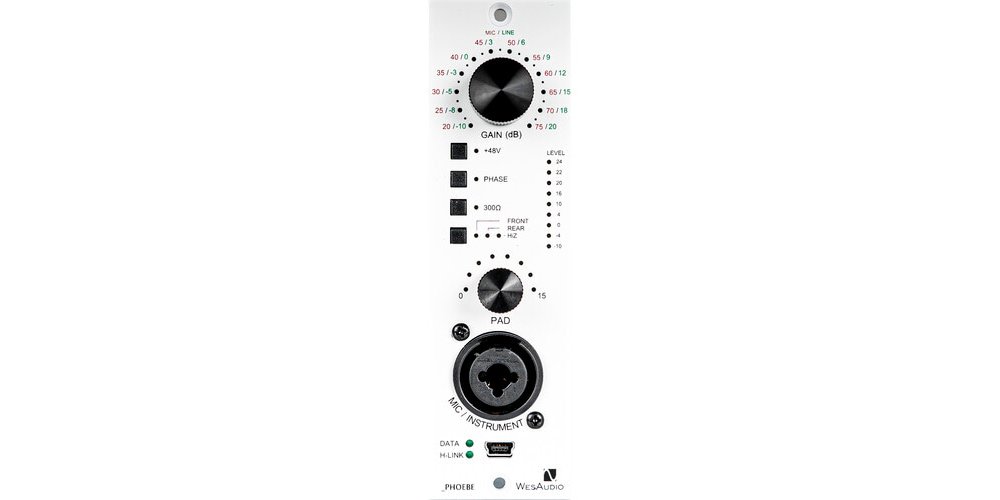

100% analog microphone/line preamp with +28dBu of headroom.Class A fully analog " inspired by famous British design based on dual amp topology.Microphone gain up to 75dB.Carnhill Transformers (input and output).Output signal metering on the front panel with clip detection.Phantom power and phase invert control.Switchable impedance input (1200/300Ohm).All controls/analog settings are fully manageable via the WesAudio GCon DAW plug-in.15dB OUTPUT PAD " passive output attenuation circuit with 1 dB step. (after the output transformer).Front panel XLR/TS socket which supports " HiZ instrument input (TS), line input (XLR), microphone input (XLR).Recallable signal source to be either back XLR Socket, or front panel XLR/TS socket.
Specifications
Frequency response: +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz
Distortion: 0.005% at 1kHz at +20dBu output
Line input impedance: 5.5k ohm bridging
Microphone input impedance: 300/1200 ohm
Noise: unity gain (better than -100dbU) Max gain +75dB (better than -70dbU)
EIN: better than -120dB
Max power consumption: 170mA(+16V); 100mA(-16V)
Dimensions: 38x133x145mm
