WesAudio _Mimas

UPC/EAN #5906660299073 MPN #WESM500CFET-1

$1224.99 (Special)

Save $124.01, Regular $1349.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

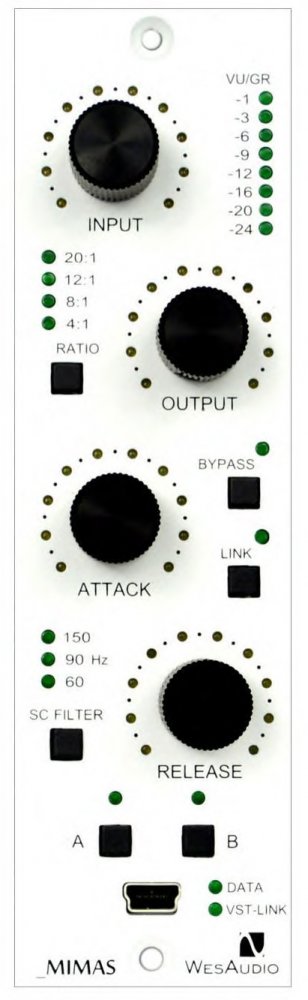

NG500/500 Series 1176-style compressor with digital recall and 100% analog signal path

Since year 1968 this style of compression dominated hundreds of recordings and to this day it is most commonly used signal processor in the industry. Lightning-fast attack and release times became main companions of audio engineers. WesAudio proudly presents _MIMAS - ng500 series implementation of legendary FET compressor. This time along with classic analog sound You will receive most demanded feature in audio industry - DIGITAL RECALL.

Features

Fully digitally controlled analog circuit,

+24dBu of headroom,

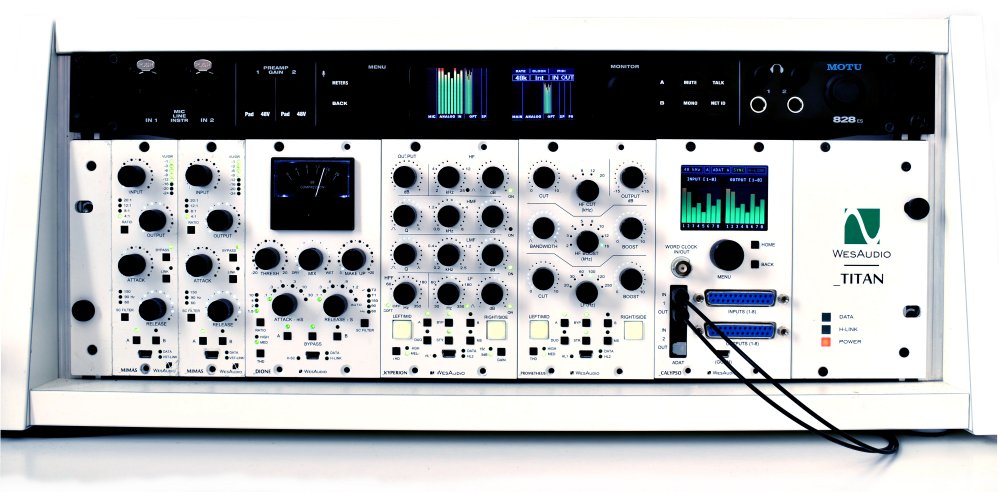

Digital recall can be acheived by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis,

Dedicated stereo plugin to manage two devices at the same time,

Digital sidechain - it is possible to send any track from your DAW as side chain signal to the compressor - It is enough to configure side chain feature in connected plugin,

4 touch sensitive encoders (allow to record automation of all parameters to DAW in real time),

True bypass,

Felectable VU(in/out)/GR meter (Switch can be accessed on the plugin),

Free software and firmware upgrades.

Specifications

Attack time: 20us - 800us

Release time: 50ms - 1100ms

Compression ratio : 4:1; 8:1; 12:1; 20:1; all button mode

True Bypass

SC High Pass filter - 60,90,150Hz

Output impedance : 600ohm

Freq. response : 20Hz do 20kHz (+/- 1dB)

Signal to noise ratio SNR : >83dB

Power consumption: 3W (100mA/+16V i 60mA/-16V)
