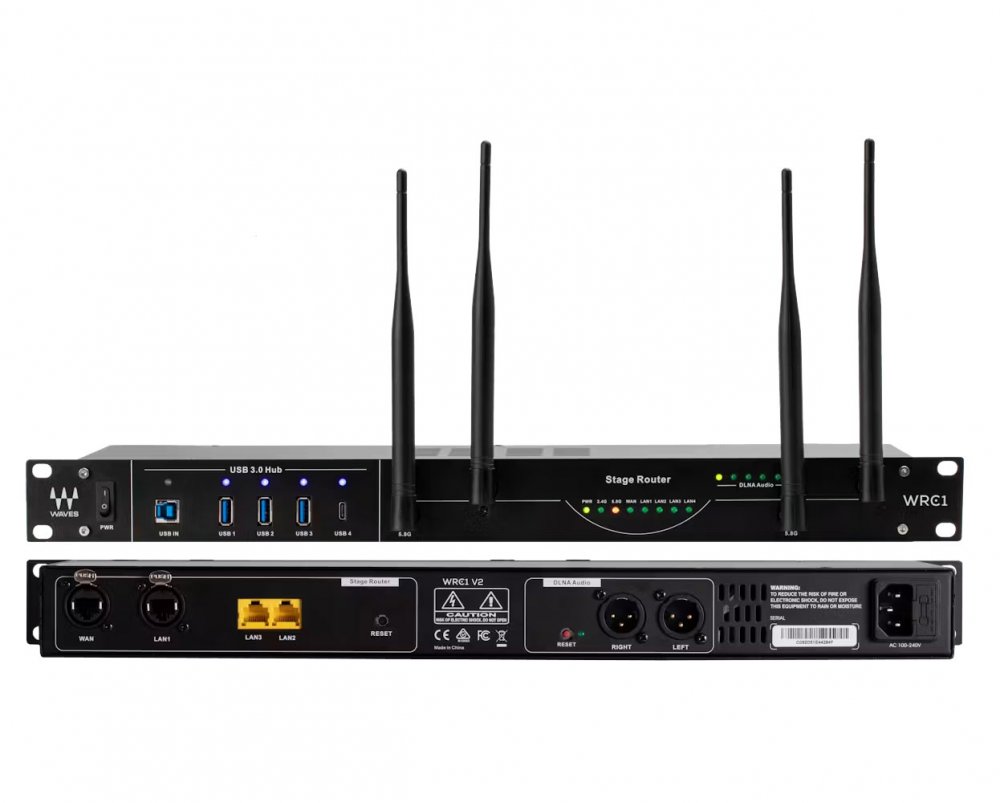

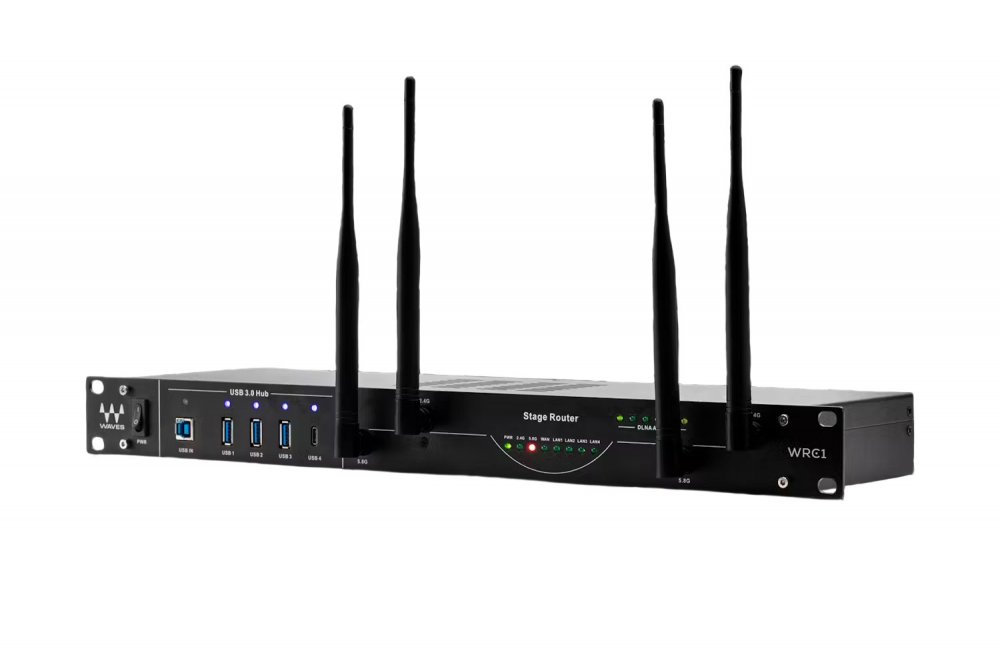

Waves WRC-1 V2 WiFi Stage Router
MPN #WRC1
1U rack Wi-Fi router for live sound, dual-band 2.4/5GHz, 5 RJ45 ports (2 lockable), DLNA player with XLR out, USB3 hub, SMA antennas, fanless, 100-240V, rugged build
The Waves WRC-1 is a robust, rack-mountable Wi-Fi router and access point purpose-built for the demanding environments of live sound, stage productions, and AV installations. Housed in a durable 1U chassis, it features dual-band Wi-Fi (2.4 GHz and 5 GHz) with MIMO technology for expanded range and bandwidth, ensuring stable and secure connectivity for control apps, wireless monitoring, streaming, and more.
With pro-grade locking RJ45 ports, an integrated DLNA player with balanced XLR outputs, and a 5-port USB3 hub, the WRC-1 supports a wide array of audio workflows-from personal monitor mixing via Waves MyMon to wireless file streaming. Its fanless, quiet design makes it ideal for noise-sensitive environments, while removable SMA antennas, internal universal power supply, and intuitive browser-based setup provide flexible and user-friendly operation. For added control, advanced firmware is available, enabling deeper network customization for installations that require it.
Features
Built for Stage and Broadcast Environments: Delivers reliable wireless connectivity for monitor control, playback, and live audio workflows.Rack-Mountable: 1U metal chassis fits standard 19-inch audio racks for easy integration.Quiet, Fanless Design: Ideal for use in noise-sensitive studios and live venues.Dual-Band Wi-Fi: Operates simultaneously on 2.4 GHz and 5 GHz bands for stable, high-speed wireless.MIMO Antenna Technology: True diversity with 4 removable front-mounted antennas improves range and performance.Secure Wireless: Supports WEP, WPA/WPA2, WPA mixed encryption, and WPS setup.Integrated DLNA Player: Stream audio from mobile devices directly to mixing consoles with balanced XLR outputs.Universal Internal Power Supply: Supports 100-240V operation with 30W max power consumption.Easy Configuration: Configure settings via browser on any standard computer.Optional Advanced Firmware: Add features like QoS, NAT, and guest Wi-Fi (advanced setup is not officially supported by Waves).
Specifications
General Overview
Product Name: WRC-1Type: Rack-mountable Wi-Fi router for live sound and AV environmentsApplication: Stage monitor mix control, DLNA playback, MyMon app, audio system managementFormat: 1U 19 inch rack-mountable chassis
Network and Connectivity
Ethernet Ports: 4 x Gigabit RJ45 (1 WAN and 3 LAN) with auto-sensingLockable Ports: 2 pro-grade RJ45 portsUSB Ports: 5-port USB3 hub with universal fast chargingAntenna Configuration: 4 removable antennas (SMA connectors, 2 per band)Wi-Fi Bands: Simultaneous dual band operation (2.4 GHz and 5 GHz)Wireless Throughput: Up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHzRF Output: Up to 100 mW EIRP
Audio and Media Features
DLNA Player: Integrated, with balanced XLR L/R analog outputsCompatibility: iOS, Android, MacOS, Windows via WRC-1 networkStreaming Capability: Direct playback from mobile devices to mixers
Design and Build
Enclosure: Rugged all-metal chassisCooling: Fanless design for silent operationMIMO Technology: True diversity for enhanced range and throughputConfiguration: Managed via browser-based interface
Power and Environment
Power Supply: Internal universal supplyVoltage: 100 to 240 VACFrequency: 50 to 60 HzPower Consumption: 30W, 0.4A
Security and Management
Encryption: WEP 64 or 128 bit, WPA, WPA2, mixed encryptionWPS: SupportedFirmware Options: Basic: Wi-Fi password and IP configuration, Advanced (user-installed): QoS, NAT, firewall, guest Wi-Fi
Included Accessories
Antennas: 4 removable antennasCables: Power cable and adapters
