MPN #SGBRI-SG

$4470.00

Financing available
Free shipping in Canada. Conditions

64ch Dante-SoundGrid bridge, bidirectional routing, 0.52-0.78ms latency, 44.1-96kHz, 1RU rack, plugin-ready, redundant PSU support, Waves plugin integration



The Waves WSG Bridge is a 1U rack-mountable interface that seamlessly connects Dante and SoundGrid networks, enabling bidirectional routing of up to 64 channels at sample rates from 44.1 to 96 kHz. Designed for live sound, broadcast, and studio applications, the WSG Bridge allows you to integrate Waves' acclaimed real-time plugin processing into any Dante-based system using a SoundGrid server (sold separately).

Engineered for ultra-low latency performance-as low as 0.52 ms one-way at 96 kHz-the WSG Bridge features robust I/O with dedicated RJ45 ports for both Dante and SoundGrid, USB connectivity for firmware updates, and support for future expansion via HBUS ports and optional clock modules. Redundant power input options ensure uninterrupted operation in mission-critical setups. Bring professional-grade plugin processing and flexible network audio routing together with the WSG Bridge.
  • Seamless Dante-SoundGrid Integration: Routes up to 64 audio channels bidirectionally between Dante and SoundGrid networks.
  • Add Waves Plugins to Dante: Enables real-time processing with Waves and third-party plugins via a connected SoundGrid Server.
  • Ultra-Low Latency: Typical latency under 0.8 ms at 44.1-96 kHz sample rates for real-time performance.
  • Professional I/O Support: Handles 64 channels at lower sample rates or 32 channels at higher rates (88.2/96 kHz).
  • Rugged 1U Rackmount Design: Compact and road-ready with a standard rack-mountable enclosure.
  • Flexible Clocking: Supports clocking via SoundGrid, Dante, or future external options.
  • Future-Ready Connectivity: Includes USB port for firmware updates and HBUS jacks for expansion.
  • Redundant Power Option: Dual 48V DC inputs for primary and optional secondary power supply (sold separately).
  • Compatible with Studio and Live Environments: Ideal for touring, broadcast, and installed AV systems requiring high-end plugin processing.
  • General Specifications
  • Product Type: Dante to SoundGrid audio network bridge
  • Function: Bidirectional routing of 64 channels between Dante and SoundGrid
  • Enclosure: 1 RU rack mountable
  • Weight: 6.3 lb or 2.8 kg
  • Dimensions: 1.75 in H x 19 in W x 8.5 in D

  • Audio Routing
  • Dante I/O: 64 channels at 44.1 or 48 kHz, 32 channels at 88.2 or 96 kHz
  • SoundGrid I/O: 64 channels at all supported rates
  • Latency: 0.787 ms at 44.1 kHz, 0.778 ms at 48 kHz, 0.580 ms at 88.2 kHz, 0.520 ms at 96 kHz, Round-trip latency is double

  • Supported Sampling Rates
  • 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • 176.4 kHz and 192 kHz (clocking supported)

  • Clocking and Synchronization
  • Clock Sources: A: Dante input, B: SoundGrid input
  • EXT: Optional future external word clock input, Synchronization: Via Ethernet

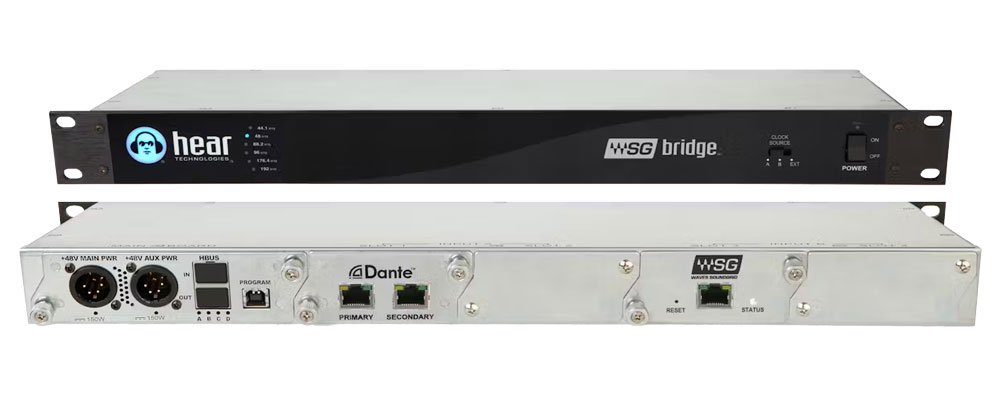

  • Connectivity
  • Dante Interface: 8 pin RJ45 100BaseT or 1000BaseT
  • SoundGrid Interface: 8 pin RJ45 1000BaseT
  • USB: USB 2.0 for firmware updates and future use
  • HBUS: RJ45 input and output for future expansion

  • Power Requirements
  • Main Power: 48 VDC, 400 mA
  • Secondary Power (Redundant): 48 VDC, 400 mA
  • External Supply Input Voltage: 100 to 240 VAC, 50 or 60 Hz
