Waves eMotion LV32D
MPN #LV32D
32 stereo or mono input channels, SoundGrid-ready, 8 plug-in slots per channel, 16 aux sends, 8 groups, 32-bit floating-point mix engine, 0.8ms latency, 96kHz.
Waves eMotion LV1 32 Stereo Channels is a premium digital mixing solution designed for front-of-house, monitor, and broadcast live sound applications. Built on Waves' SoundGrid audio networking platform, this software-based mixer supports up to 32 stereo or mono input channels and 28 bus/return channels, delivering precise mixing capabilities with ultra-low latency as low as 0.8 ms and sample rates up to 96 kHz.
Designed for flexibility and performance, the LV1 32-channel version offers 16 aux sends, 8 audio groups, and L/R/C/Mono panning. Each channel supports up to 8 plug-ins (Waves or third-party), and the included eMo series plug-ins (Dynamics, Filters, Generator, EQ) are specifically tuned for live use. The interface supports up to four multitouch screens, enabling a highly customizable and intuitive workflow ideal for high-pressure live environments.
Features
32 stereo or mono input channels for FOH and broadcast live mixing16 stereo aux sends and 8 audio groups for flexible routingUses SoundGrid network for low-latency audio and plugin processingBuilt-in eMo plug-ins: dynamics, EQ, filters, and signal generatorRun up to 8 plug-ins per channel (Waves or third-party)32-bit floating point mix engine with latency as low as 0.8 msCompatible with up to four multitouch screens for hands-on controlFull support for scene recall, user presets, and custom layersExternal insert support and A/B input switchingWorks offline or online; portable or fixed system setupsWindows and macOS compatibleIdeal for complex stage setups, touring rigs, and live broadcasting
Specifications
General Specifications
Mixer Type: Digital software mixerFormat: Downloadable softwareChannel Count: 32 stereo/mono input channels, 28 bus/return channelsAudio Engine: 32-bit floating pointLatency: As low as 0.8 msSample Rates: 44.1, 48, 88.2, 96 kHzCompatibility: macOS 10.10.5 to 10.13 / Windows 8.1 or 10 (64-bit)
Audio Networking
Network Standard: SoundGrid infrastructureExternal I/O: Patch up to 16 SoundGrid-compatible interfacesPlugin Processing: External SoundGrid DSP serverOptional DSP Redundancy: SupportedCable Support: Cat 5e, Cat 6, Cat 7
Channel Features

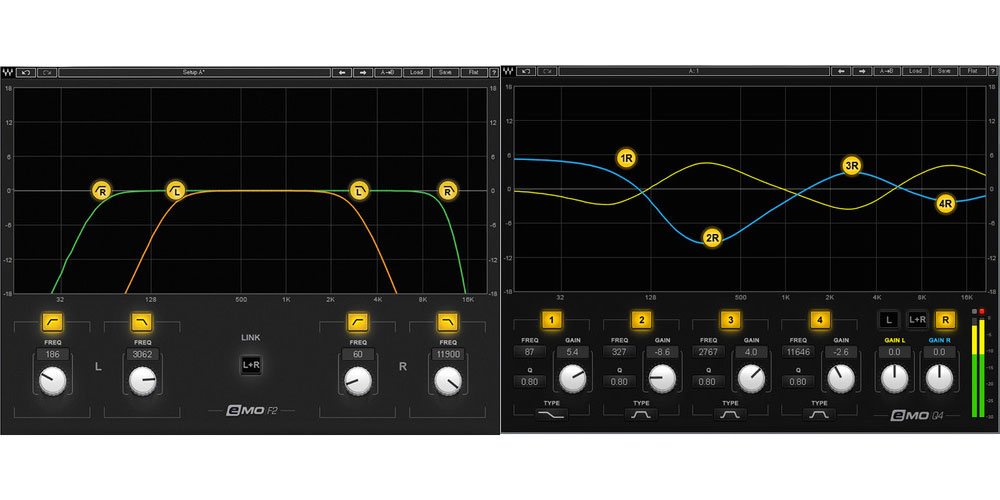

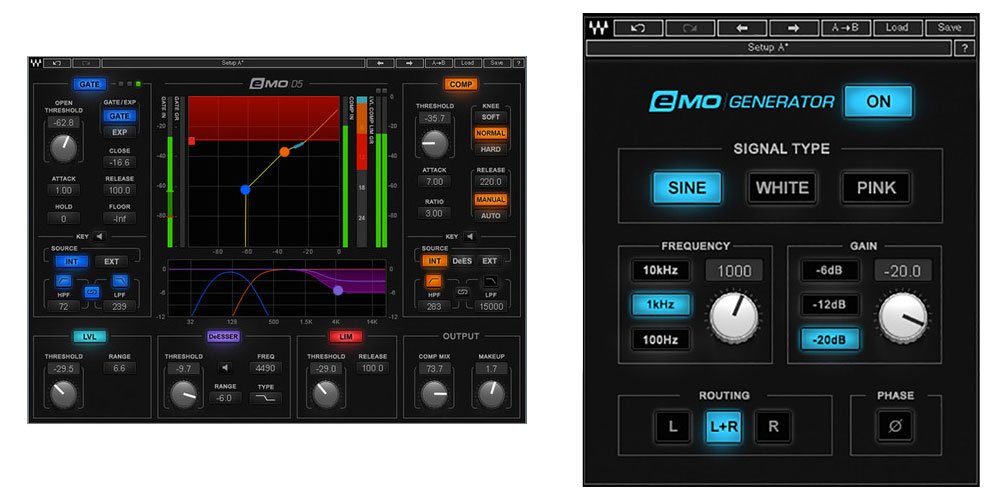

Plug-ins per Channel: Up to 8 SoundGrid-compatible plug-insPlug-in Formats: Waves and third-partyBuilt-in Plug-ins: eMo D5 Dynamics, F2 Filter, Generator, Q4 EQGroup Buses: 8 audio groupsAux Buses: 16 aux (mono/stereo)Output Options: L/R/C/Mono panning, multiple outputs with digital trimStereo Imaging: Advanced imager with balance, rotation, widthInput Options: A/B switching, preamp control, digital trimDelay Alignment: Output delay groupsControl Groups: 16 link control groups with DCA fadersDCA Spill: Supported
Control & Monitoring

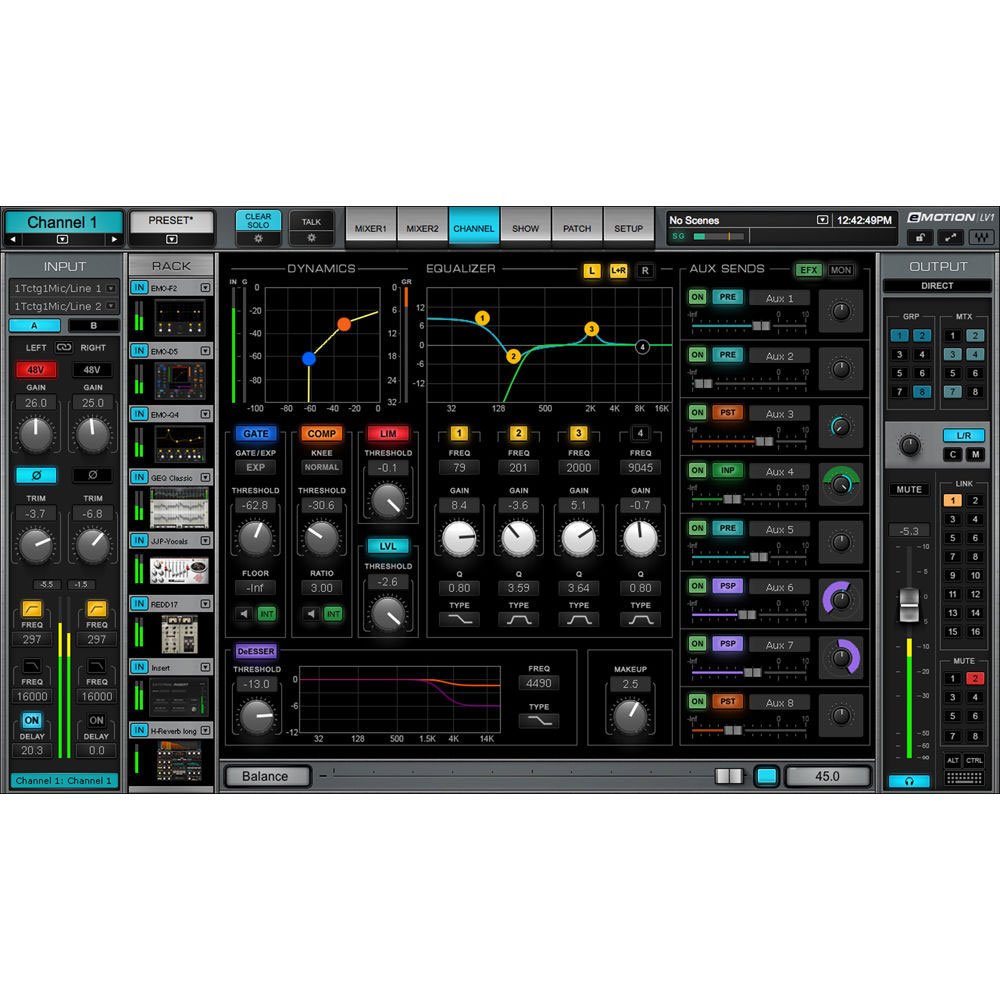

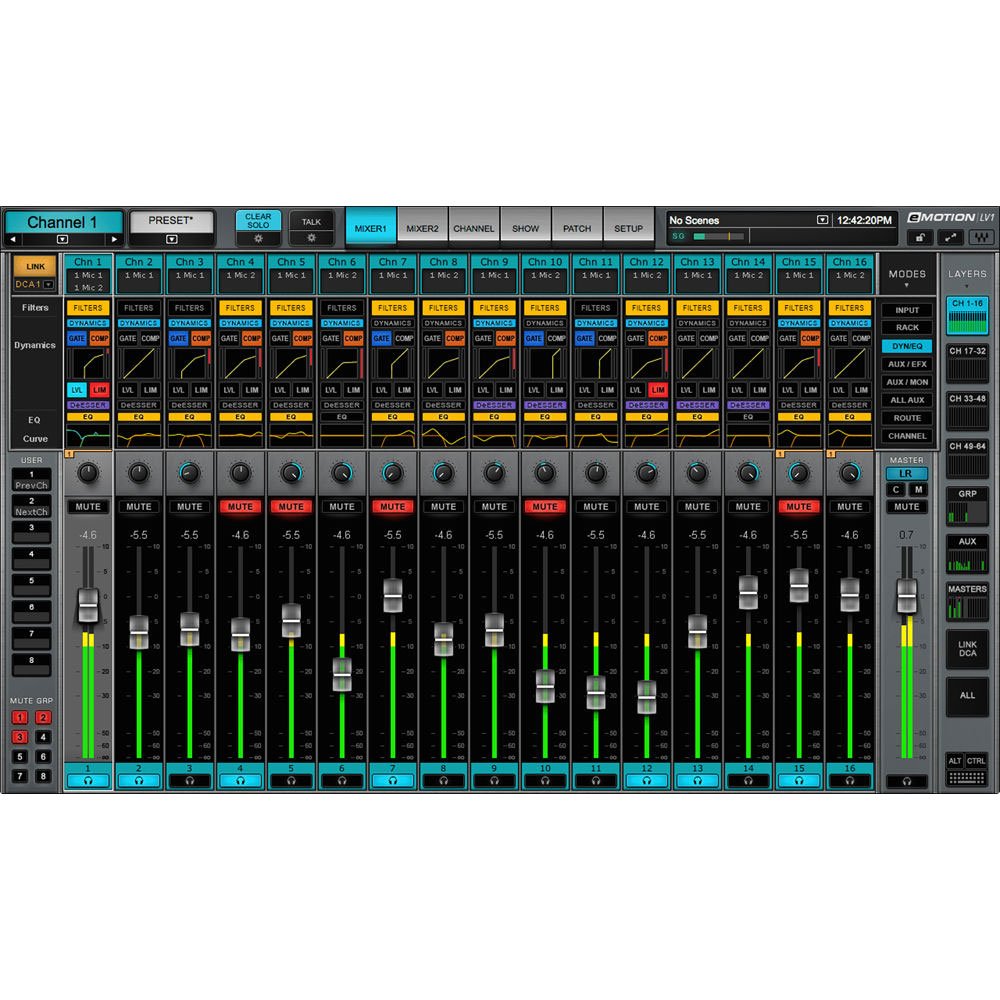

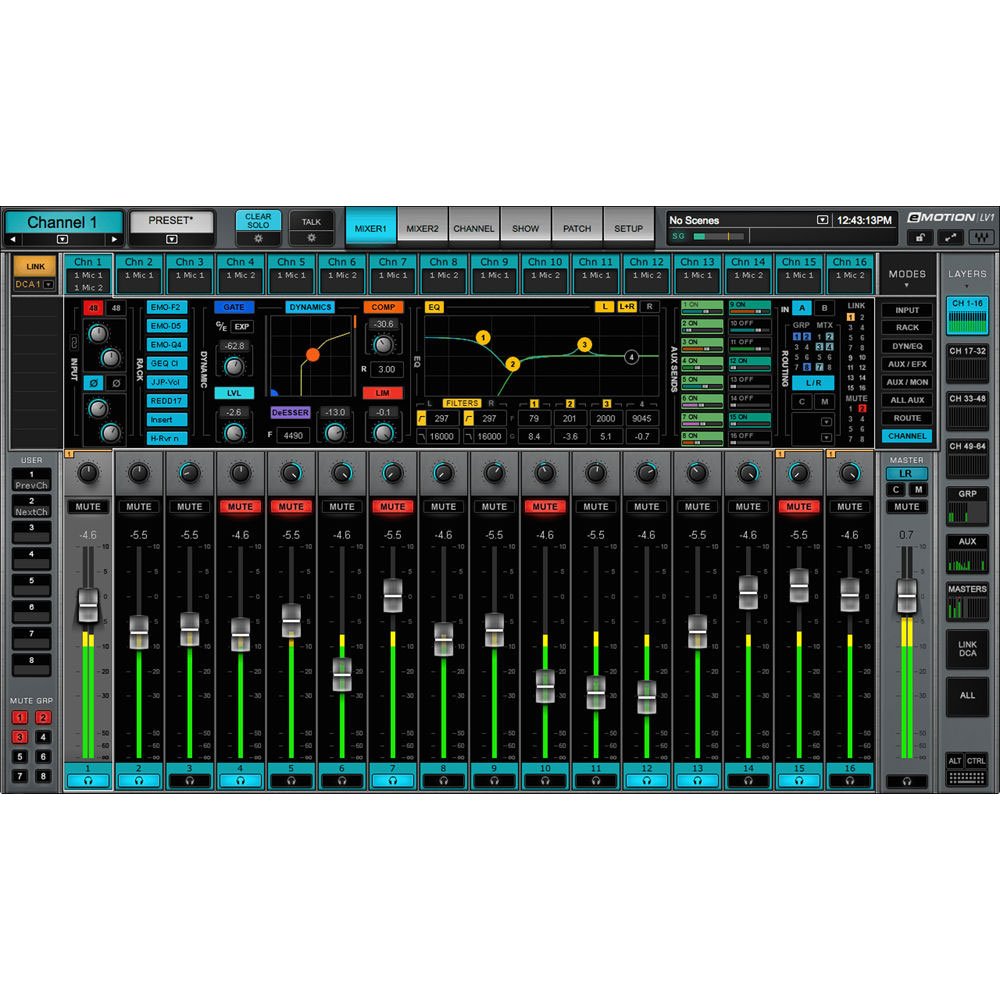

User Interface: Touch-optimized with visual slidersDisplay Support: Up to 4 multitouch screensControl Surfaces: MIDI fader/knob, iPad app (DAW Remote HD), MIDI Show ControlScenes: Up to 1000 scenes with recall filters and safe optionsMetering: Full metering and clip indicatorsMonitoring: Solo-in-place with auto solo-safeUser Customization: 8 assignable keys, custom layers (8 per mixer, 16 channels per layer)
Workflow & Features
Control Windows: Mixer 1, Mixer 2, Channel, Show, Patch, SetupOffline Mode: Full offline config and patchingRouting: External inserts, full FX rack supportPresets: Compatible with Waves MultiRack and StudioRackScene Automation: MIDI-triggered scene changesShow Lock: Lock plug-ins, routing, and controls
System Requirements
macOS: CPU: Intel i5 or later, RAM: 6 GB, Resolution: 1280 x 768Windows: CPU: Intel i3 or later, RAM: 8 GB, Resolution: 1280 x 768Tablets: Windows 8.1/10 (64-bit), Intel i3 or laterBoot Camp: Supported for Windows on Mac
Included in the Box
Waves eMotion LV1 32 Channel Mixer Software (Download)eMo D5 Dynamics Plug-IneMo F2 Filter Plug-IneMo Generator Plug-IneMo Q4 Equalizer Plug-In
Usage
Ideal for FOH, broadcast, and monitor mixing with seamless studio integration and advanced SoundGrid DSP routing and control.
