Waves DirectOut EXBOX.SG
MPN #EXBOX.SG
128ch SoundGrid/MADI conversion, 3 MADI ports (SC, BNC, SFP), 4 network ports, PoE, 1/3 rack width, dual PSU, 44.1-96kHz, low-latency, rugged compact build

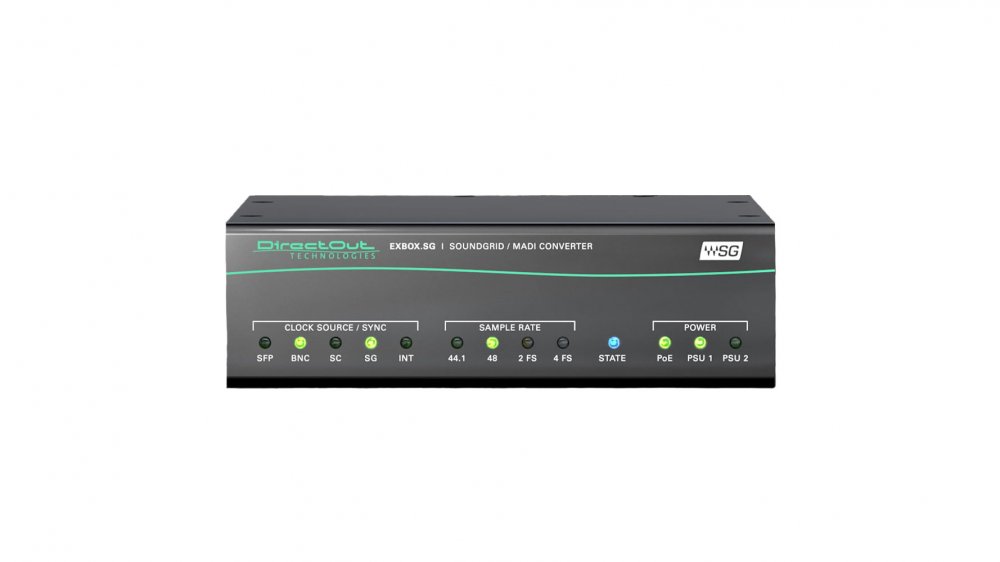

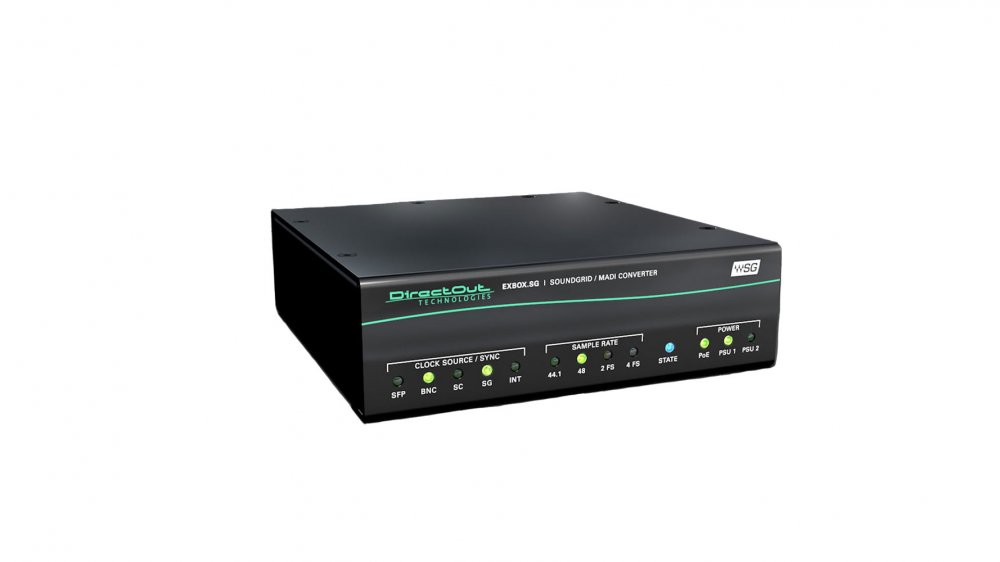

The DirectOut EXBOX.SG is a high-performance SoundGrid-to-MADI converter engineered for low-latency, high-channel-count audio integration in professional live and broadcast environments. Supporting up to 128 audio channels at 48 kHz (or 64 channels at 96 kHz), it provides seamless conversion between Waves SoundGrid networks and MADI systems via three versatile MADI ports-Optical SC, Coaxial BNC, and an SFP slot for custom configuration. This compact 1/3-rack unit is purpose-built for demanding applications, including OB vans and stage setups, where space, stability, and flexibility are key.
With four Gigabit network ports, including one PoE-enabled, the EXBOX.SG eliminates the need for additional switches and allows direct connection to plugin servers and redundant recorders. Dual redundant power supply options (2x external + PoE), along with informative front-panel LEDs for system status and sync, ensure reliable operation in mission-critical environments. Fully controllable via SoundGrid's control panel or DirectOut's globcon software, the EXBOX.SG is a rugged and agile solution for modern audio routing and system integration.
Features
Seamless Format Conversion: Converts up to 128 audio channels between SoundGrid and MADI systems with low latency.Versatile MADI Connectivity: Includes optical SC, coaxial BNC, and SFP slot for multiple MADI interface options.Compact and Rack-Mountable: One-third rack width; fits three units side-by-side in a single 1U rack space.Flexible Network Ports: Four network ports with integrated switch, including one PoE-enabled port.Multiple Power Options: Runs on dual external power supplies and Power-over-Ethernet for added redundancy.Reliable for Live & Mobile Use: Built tough for OB vans and live sound environments.Visual Status Indicators: Front panel LEDs display clock, sample rate, power, and device status.Broad Format Support: Handles 128 channels at 48 kHz or 64 channels at 96 kHz, with MADI and SoundGrid compatibility.Remote Control Ready: Supports control via SoundGrid control panel, globcon, and MIDI over network.Expandable and Customizable: Compatible with various SFP modules and optional rackmount kits.
Specifications
General
Product Type: SoundGrid to MADI audio format converterApplication: Live sound, OB vans, broadcast, studio
Audio Channels
Channel Count: 128 channels at 48 kHz or 64 channels at 96 kHz
MADI Connectivity

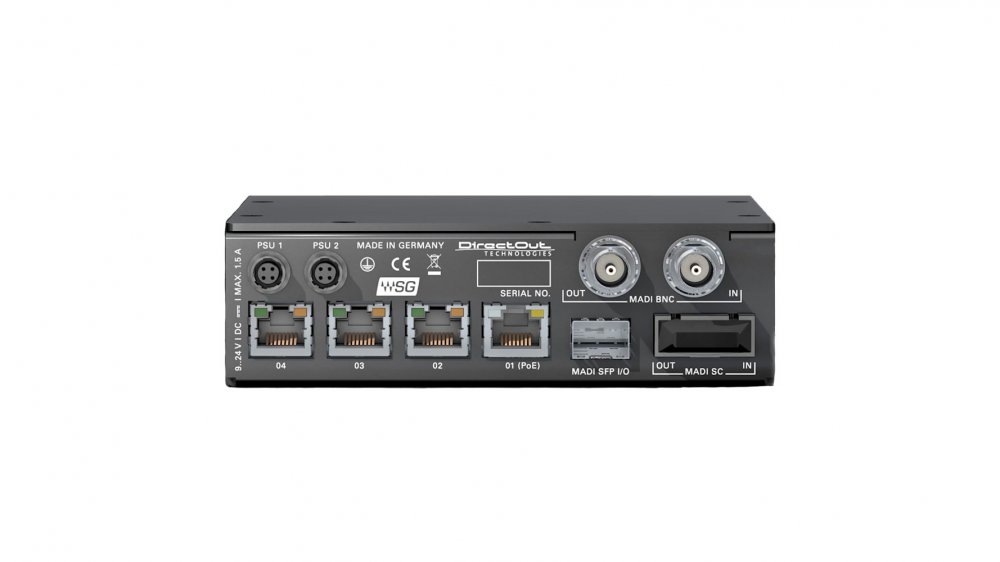

Coaxial Port: 1 x BNC 75 ohmOptical Port: 1 x SC socket (multi-mode)SFP Port: 1 x empty cage, compatible with LC multi-mode/single-mode or HD-BNC coax transceivers
Network Connectivity
Network Ports: 3 x RJ45 (1 Gbit/s)PoE Port: 1 x RJ45 (1 Gbit/s with Power-over-Ethernet IEEE 802.3af)Network Audio Standard: SoundGridNetwork Layer: Layer 2
Digital Audio Specifications
Sample Rates: 44.1, 48, 88.2, 96 kHz ±12.5 percentMADI Formats: 48k/96k frame, 56/64 channel, S/MUX
Synchronization
Network Sync: Via SoundGridWord Clock In: 1 x coaxial BNC (also switchable from MADI input)
Control and Monitoring
Remote Software: SoundGrid control panel, globconRemote Control Methods: MIDI over NetworkStatus Indicators: Front panel LEDs for clocking, sample rate, device state, and power
Power Supply
External Power: 2 x Hirose connectors (9 to 24V)PoE: Supported (IEEE 802.3af)
Physical Dimensions
Width: 140 mmHeight: 42 mmDepth: 140 mmWeight: Approximately 1 kgForm Factor: 1/3 of 19 inch rack width (3 units fit 1 RU)
Accessories and Options
SFP Modules: Optional LC single-mode or multi-modeRack Mount: BOXMOUNT.XL for 19 inch rack useVariants: Single mode SC socket, Dual PSU version available
