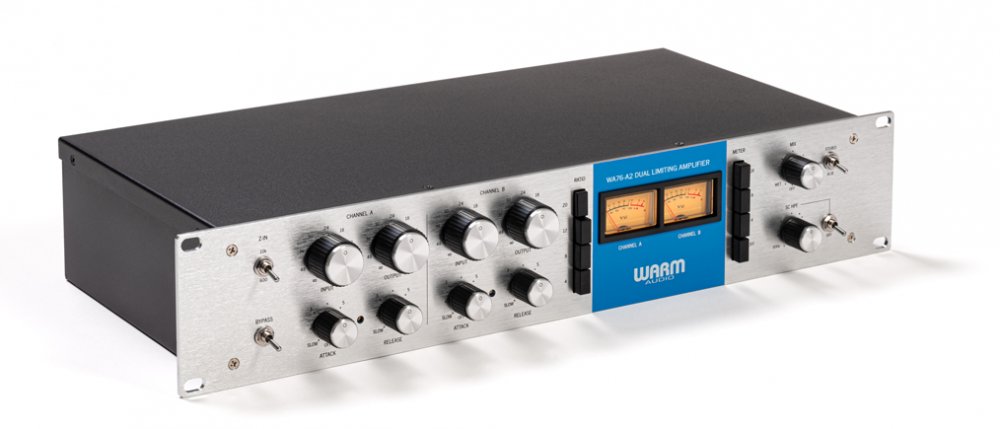

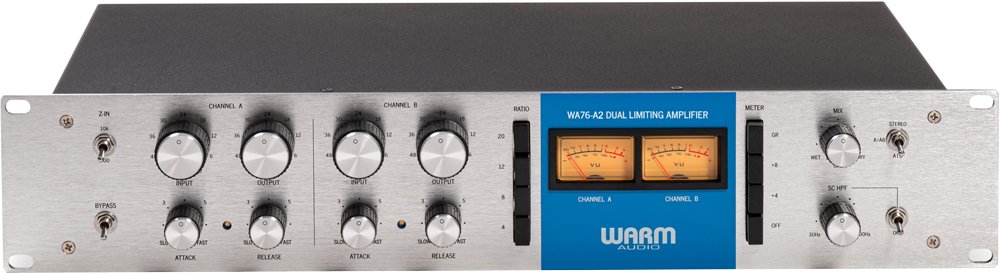

Warm Audio WA76-A2
UPC/EAN #50031640610
MPN #WA76-A2
$1699.00
Save 19.1%, MSRP $2100.00
Dual-Channel Vintage Analog FET Compressor. Faithful Dual-Channel Recreation Of The Fastest and Most Powerful "Blue-Stripe" Studio Compressor With Added Recording Features
The WA76-A2 accurately reproduces 2-channels of the fastest and most powerful studio compressors of all time known for its extra "grabby" attack, powerful dynamic control, and vintage analog grit. Using premium and custom components like O-12 (input) and 5002 (output) transformers from CineMag, WA76-A achieves authentic 76 "blue stripe"-style compression, known for its gritty preamp stage with unmistakably analog character. Added modern controls to achieve parallel compression, active & true bypass, selectable input impedance, and sidechain flexibility make WA76-A an ideal choice for modern recording workflows that require vintage tone shaping. WA76-A2 recreates the legendary tone & control of the vintage 76-style compression used in studios by artists like Jack White, The Beatles, David Bowie, Led Zeppelin and many more.
Features
Classic Studio Compression With True Analog Grit: The WA76-A2 is a faithful recreation of the vintage 76 "blue stripe"-style 2-channel FET studio compressor with added features to meet modern recording workflows. Recreating the lauded original vintage "Blue Stripe" version of the 76 compressor known for its extra "grabby" fast attack and vintage analog grit, the WA76-A2 offers the ideal blend of vintage circuitry and modern controls to deliver ultimate flexibility without sacrificing vintage analog character.Critical Classic Controls + Bonus Modern Add-Ons: WA76-A2 delivers vintage circuit design and has all of the traditional 76-style compression controls; attack, release, ratio, input, output, and meter display. In addition to the classic controls expected on a 76-style compressor, WA76-A2 is a stereo unit and has dry/wet mix for parallel compression, selectable input impedance, active & true-bypass, and variable sidechain high-pass filtering to tackle unruly bass that dominates the compressor's attention.Custom CineMag Transformers: Just like in the vintage 76-style compressors from revision "A" to D", the WA76-A2 uses custom large-core, CineMag input & output transformers. The transformers inside the WA76-A2 use the exact same spec data and materials (nickel and steel) used by Reichenbach Engineering in the original vintage designs known for delivering vintage analog grit to any signal chain.Premium Components & Accurate Blue Stripe-Style Circuitry: WA76-A2 uses premium poly film capacitors, carbon resistors, and a vintage-voiced preamp stage. These key components complete a circuit that cuts no corners in delivering an authentic vintage 76-style "blue stripe"-style compression experience.Hand-Tested In Austin, TX: Like all Warm Audio gear, WA76-A2 is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.
Specifications
100% Analog Discrete 2-Channel FET CompressorFaithful Recreation Of The Vintage "Blue Stripe" FET Compressor With Added Recording FeaturesVU Meter Options: Gain Reduction | +8dB Output | +4dB Output | "Off" Powers off unit100-230v IEC Inlet Universal Power SupplyClass-A Line-Level Output Amplifiers100% Discrete Audio Signal Path Using 600? Input Impedance AttenuatorSelectable 10k? Input Impedance To Better Match Modern Audio Interface Specifications100% Dry-Wet Mix Control | Variable Sidechain High Pass Filter: 30 - 300Hz, 12dB/OctaveActive Bypass For Running Unit As Line Amplifier & True Bypass Option For A/B Comparisons3 2-Channel Operating Modes: Stereo Linked | Primary:Secondary | Dual-Mono2U 19? Rackmount ChassisUtilizes Premium O-12 Input & 5002 Output Transformers From CineMag USAVintage-Spec Attack & Release: Attack = 20 µS - 800 | Release: 50 mS - 1.1 Second"All-Buttons-In" Setting For Experimental & Hard-Limiter TonesFrequency Response: ± 1 dB 20 Hz - 20 kHzBalanced XLR & TRS Inputs & OutputsTotal Amplifier Gain: 58dBSignal-To-Noise Ratio (SNR): 84dBTotal Harmonic Distortion (THD): -58dB (at -18dBu)
Popular Uses
Stereo Bus Compression With Analog Grit
Add Vintage Vibe To Stereo Vocals & BGVs
Perfect Stereo Drum Room/Overhead Mic Compression With Vintage Analog Tone
Dynamic Control For Heavy Electric Guitars With Vintage Analog Vibe
Artists, Producers, & Engineers Of The Original Style of Compression
Led Zeppelin
Jack White
David Bowie
Chris Stapleton
The Beatles
Chris Lord-Alge
