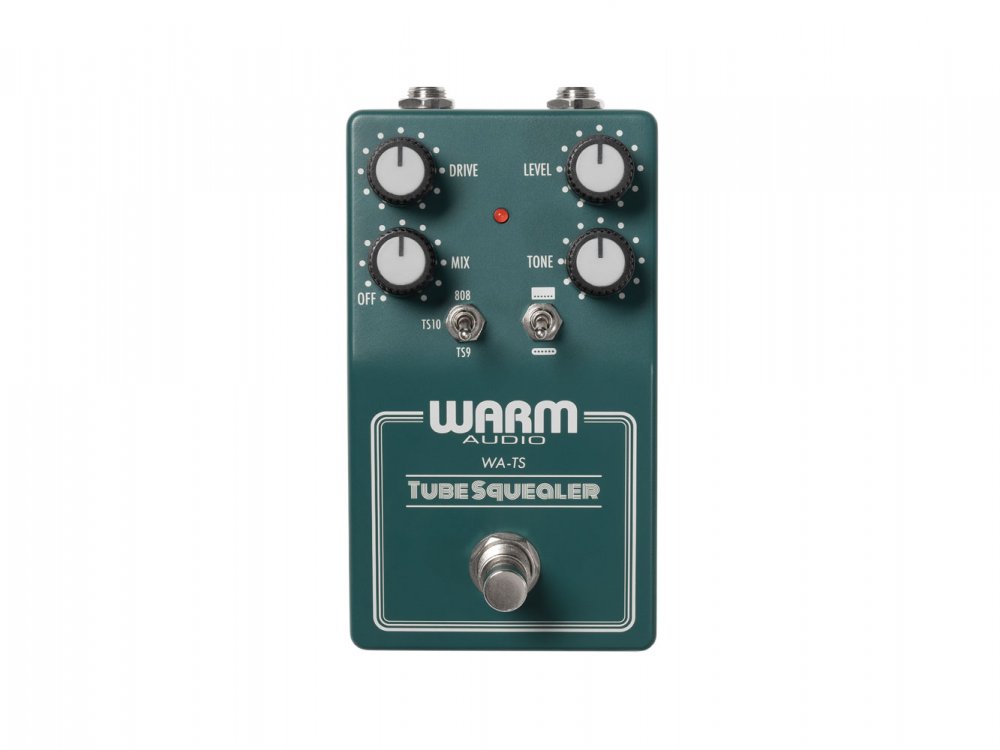

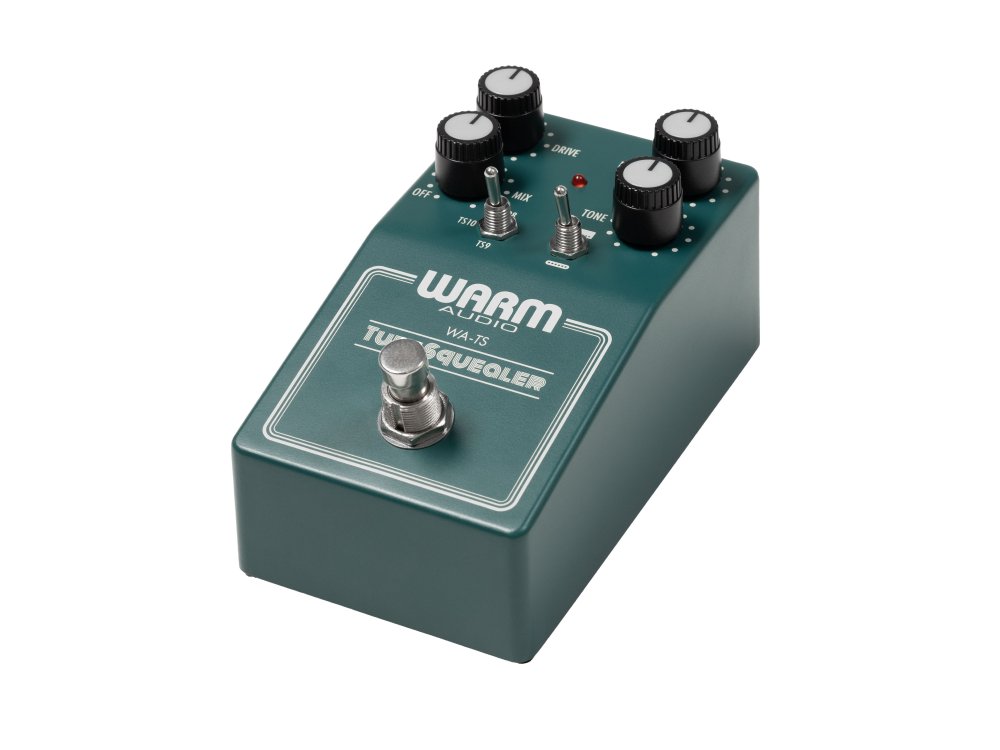

Warm Audio WA-TS Tube Squealer
UPC/EAN #850031640832
MPN #WA-TS
$229.00
Save 15.2%, MSRP $270.00
Three-mode overdrive pedal recreating 808, TS9 & TS10 circuits with mix knob, pickup voicing, voltage boost & true/buffered bypass. Premium analog, hand-tested.
The Warm Audio Tube Squealer authentically recreates three legendary tube-driving overdrives-808, TS9, and TS10-responsible for shaping decades of iconic guitar tone. Each mode delivers its original soft-clipping character, while modern updates expand its versatility. A mix knob blends clean and driven tones, a pickup-voicing selector optimizes performance for single-coils or humbuckers, and an external voltage booster increases headroom for dynamic playing. Select between true or buffered bypass to suit any rig. Built with premium analog components including JRC4558 op-amps, discrete transistors, and diodes, and hand-tested in Austin, TX, Tube Squealer delivers vintage authenticity with modern reliability.
Features
Faithful recreation of three legendary overdrive circuits: 808, TS9, and TS10Three-mode, soft-clipping, tube amp-driving overdrive pedalMix knob for blending clean and driven signalsPickup voicing selector optimized for single-coils or humbuckersSelectable true/buffered bypass for flexible pedalboard integrationExternal voltage doubler for increased headroom (+9V to +18V operation)Premium 100% analog circuitry with JRC4558 op-amps, discrete transistors, diodes, and JFETsSymmetrical clipping topology authentically recreating original Japanese pedal designsClassic level, drive, and tone controls with added flexibilityHand-tested and inspected in Austin, TX with 5-year warranty
Specifications
General Specifications
Product Name: Tube SquealerModel Number: WA-TSBrand Name: Warm AudioUPC Number: 850031640832MAP Price: $229Country of Origin: Taiwan
Product Dimensions
Dimensions (inches): 5.1 (W) x 2.75 (H) x 2.63 (D)Dimensions (cm): 13 x 7 x 6.7Weight (lbs): 1Weight (kg): 0.45
Packaging " Single Unit
Box Dimensions (inches): 5.14 (L) x 4.1 (W) x 8.1 (D)Box Dimensions (cm): 13.1 x 10.4 x 20.6Box Weight (lbs): 1.4Box Weight (kg): 0.64
Packaging " Master Pack
Master Carton Dimensions (inches): 8.9 (L) x 20.9 (W) x 11 (D)Master Carton Dimensions (cm): 22.5 x 53 x 28Master Carton Weight (lbs): 15.5Master Carton Weight (kg): 7Units per Master Pack: 10
Certifications & Compliance
CE Certified: YesWEEE Compliant: YesProp 65 Compliant: YesHazmat: NoLithium Batteries: No
Technical Specifications
Type: Three-mode, soft-clipping, tube amp-driving overdrive pedalCircuit Modes: 808, TS9, TS10Bypass Options: True or Buffered (selectable)Voltage Boost: External doubler for increased headroomPickup Voicing Selector: For humbucker/single-coil optimizationMix Knob: For blending clean and overdriven signalsCircuit Topology: Symmetrical clipping with analog authenticitySignal Path: 100% analog circuitry
Controls
Knobs/Switches: Level, Drive, Tone, Mix, Pickup-Voicing Selector, Circuit Selector, Voltage Boost, Bypass Selector
Electronics & Components
ICs: 2 (including JRC4558 op-amps)Discrete Transistors: 3JFETs: 2Diodes: 4Voltage Supply: Switch-cap voltage doubler
Performance
Power Consumption: 12 mA (standard mode), 25 mA (boosted mode)Input Sensitivity: 500k ohmMaximum Output Level: +2.1 dBu @ 9V, +9 dBu @ 18V
I/O

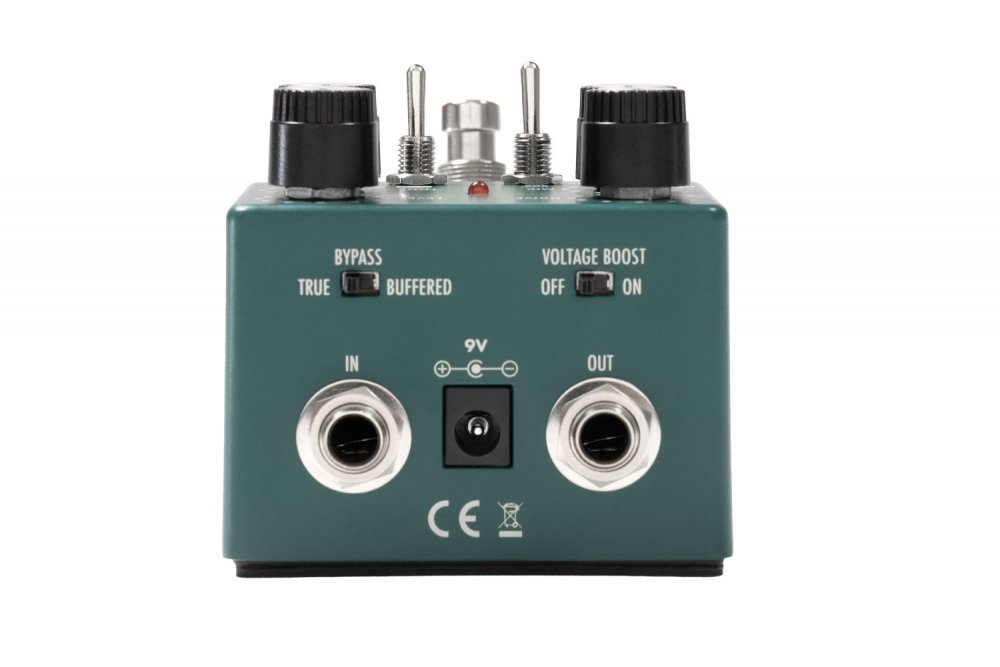

Inputs/Outputs: 1/4'' mono input, 1/4'' mono outputPower Input: 9V DC, center-negative
