Warm Audio WA-TOT Throne of Tone
UPC/EAN #850031640825
MPN #WA-TOT
$349.00
Économisez 14.9%, Prix suggéré $410.00
Dual-sided British amp-inspired overdrive, two voicings, low/high gain, boost/OD/distortion modes, presence and voltage control, premium analog design, true-bypass.

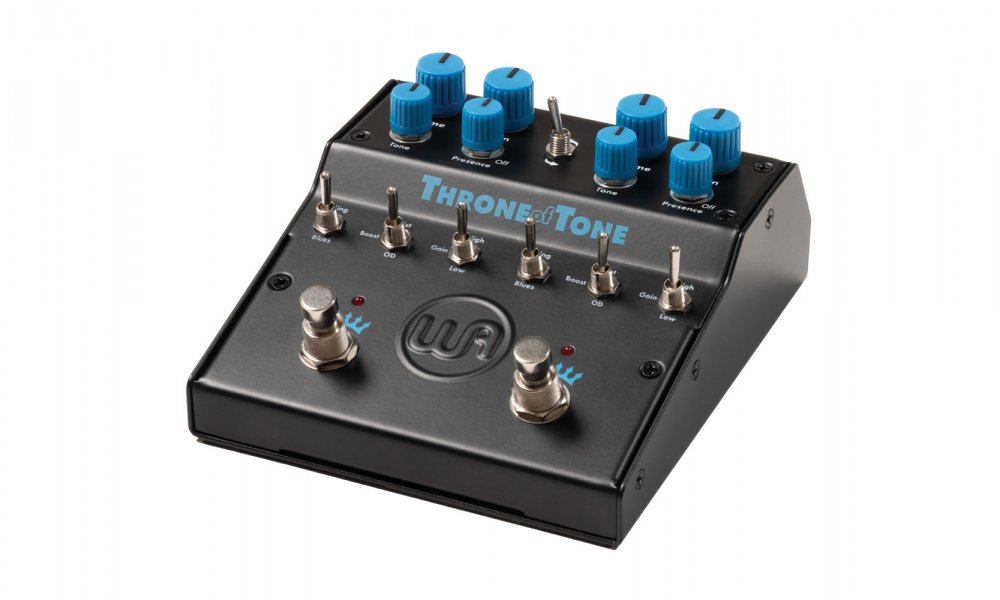

The Warm Audio Throne Of Tone combines two legendary British amp-inspired blues circuits in a powerful dual-sided overdrive pedal. Designed for maximum flexibility, each side offers two voicings, selectable low/high gain, and three drive modes-boost, overdrive, and distortion. Independent tone, gain, and presence controls plus an external voltage boost (9V"18V) allow precise shaping from subtle breakup to soaring leads. With premium analog components, true-bypass operation, and hand-testing in Austin, TX, Throne Of Tone delivers uncompromising amp-like response. Whether used for stacked overdrives, as a "channel two" into a clean amp, or boosting breakup tones, Throne Of Tone defines overdrive royalty.
Caractéristiques
Combines two classic British amp-inspired overdrive circuits in one pedal for authentic blues and rock tonesDual voicings with selectable low and high gain levels for flexible drive shapingThree drive modes per side: boost, overdrive, and distortionIndependent tone and presence controls for precise frequency shapingRear-mounted voltage boost (9V"18V) for added headroom and dynamicsTrue-bypass switching with send/return jacks for adding pedals between circuitsUses premium all-analog components including 24 diodes and JRC4580/TL072 op-ampsExternal controls only-no need to open the pedal for adjustmentsHand-tested in Austin, Texas, with a 5-year warranty for reliability
Spécifications
General Specifications
Product Name: Throne Of ToneModel Number: WA-TOTBrand Name: Warm AudioUPC Number: 850031640825
Physical Dimensions
Product Dimensions (inches): 6.75 (W) x 5 (H) x 2.63 (D)Product Dimensions (cm): 17.1 x 12.7 x 6.7Product Weight (lbs): 2.4Product Weight (kg): 1.1
Packaging - Single Unit
Box Dimensions (inches): 7.3 (L) x 3.9 (W) x 8.9 (D)Box Dimensions (cm): 18.5 x 9.9 x 22.6Box Weight (lbs): 2.9Box Weight (kg): 1.3
Packaging - Master Pack
Master Carton Dimensions (inches): 20.4 (L) x 15.4 (W) x 9.7 (D)Master Carton Dimensions (cm): 51.7 x 39.1 x 24.6Master Carton Weight (lbs): 30.5Master Carton Weight (kg): 13.8Units per Master Pack: 10
Certifications & Compliance
CE Certified: YesWEEE Compliant: YesProp 65 Compliant: YesHazmat: NoLithium Batteries: No
Technical Specifications
Design: Dual-sided British amp-inspired overdrive pedalDrive Modes per Side: Boost, Overdrive, DistortionVoicings per Side: 2 (Classic British amp-style)Gain Levels per Side: Low / HighSignal Path: 100% AnalogBypass: True-bypass, including FX loopPresence Control Range: 500 Hz to 2.3 kHz (per side)Voltage Control: Selectable 9V or 18V external voltage doublerFX Order Swap: Yes (toggle switch)
Controls

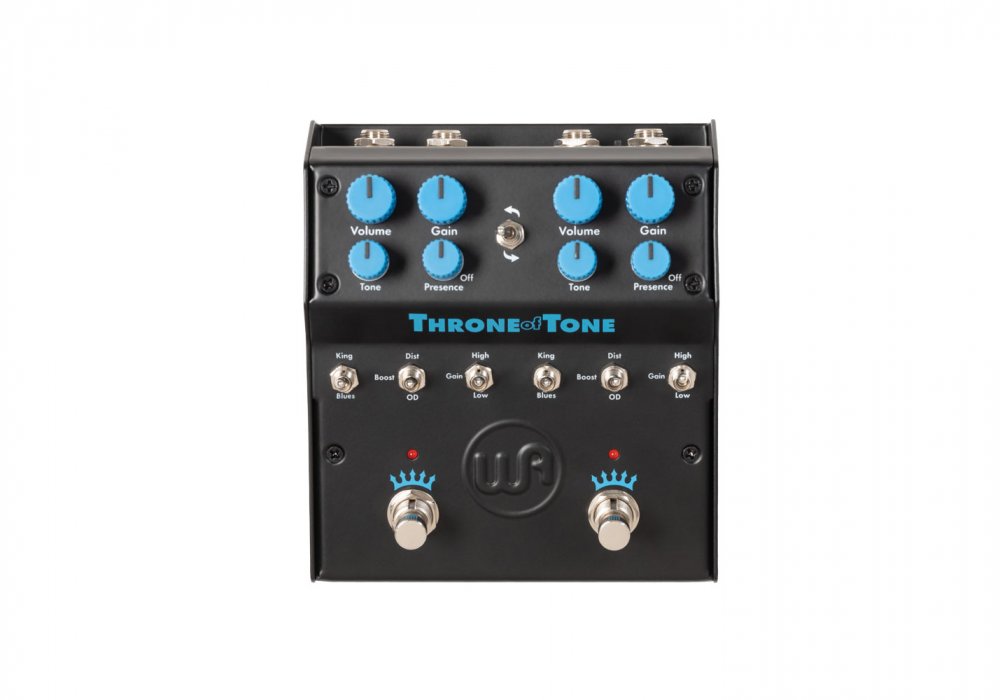

Per Side Controls: Volume, Gain, Tone, Presence, Voicing Select, Drive Mode Select, Gain Level Select, On/Off footswitchGlobal Controls: Voltage Boost switch, FX Order Swap switch
Electronics & Components
ICs: 4 total (including JRC4580 and TL072 op-amps)Diodes: 24 totalVoltage Doubler: Dual switch cap power supplyPower Consumption: 24 mA @ 9V, 43 mA @ 18VInput Impedance: 1 MohmMaximum Output Level: +7.1 dBu @ 9V, +14.6 dBu @ 18V
Inputs & Outputs

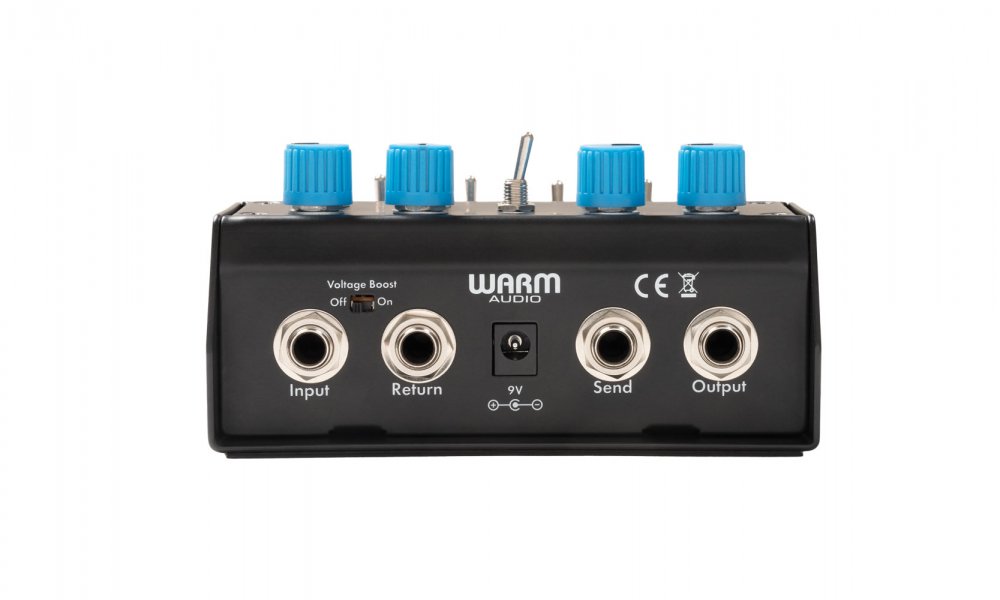

Input: 1/4'' monoOutput: 1/4'' monoFX Loop: Unbalanced 1/4'' send & return jacksPower: 9V center-negative DC power jack
