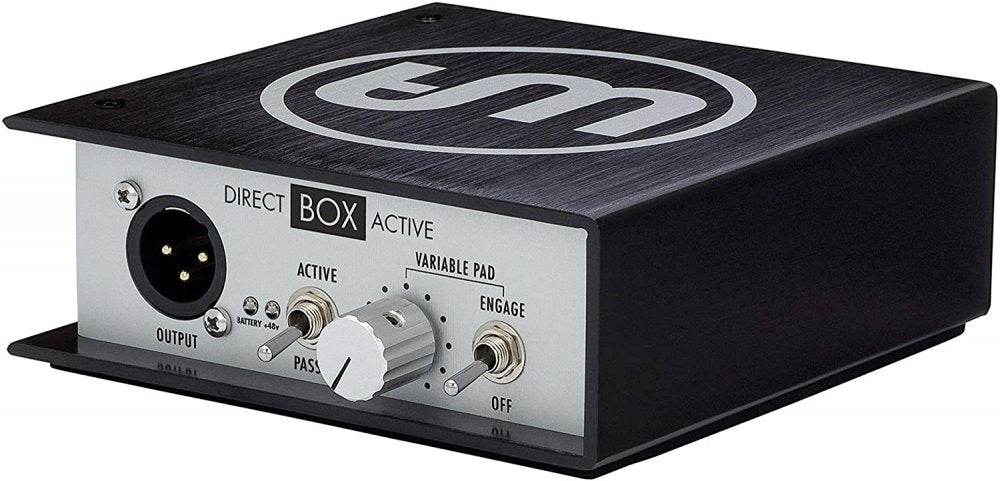

Warm Audio WA-DI-A
Premium active direct injection (DI) box with custom-wound CineMag USA output transformer, powered by 48V Phantom or two 9V batteries and can also be used passively
Warm Audio DI boxes offer the rare versatility of having an onboard variable pad knob which attenuates your input signal all the way from -3dB to -30dB, which will easily tame any instrument input source.

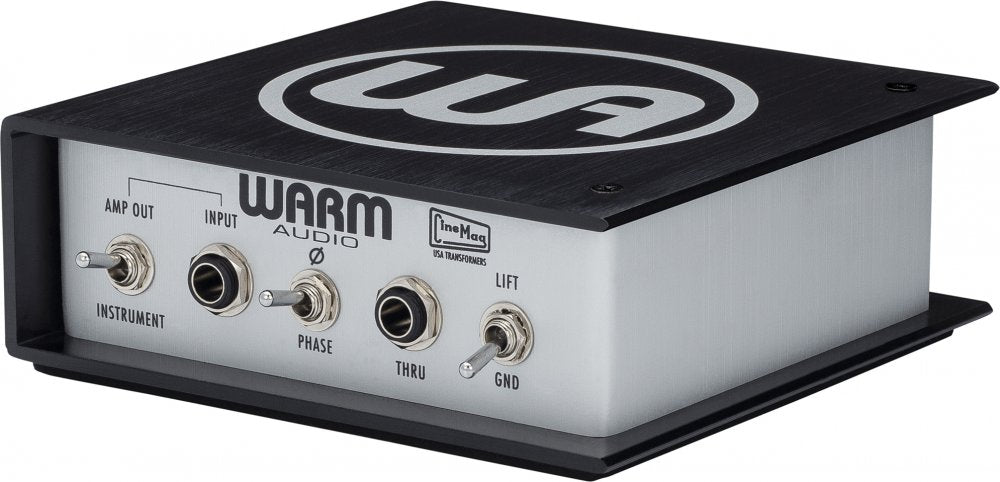

Both of our Direct Boxes (active or passive) offer a Thru-put jack that is jumpered to the input jack. It is a convenience jack allowing you to send your instrument's signal to a second place in addition to the live mixer or recording device. Our Direct Boxes can also take a recorded signal at line level and send it to another line input while simultaneously sending signal out of the XLR mic level output of the Direct Box.
Typical Applications For A DI Box
Connecting electronic instruments such as guitar, bass, keyboard, or drum machines directly to a PA or recording system. Simply put, a DI box converts the high impedance, unbalanced output signals to low impedance, balanced output signals. By doing so, the instrument signals are now converted to the proper voltage level for the PA or recording system - which greatly reduces and/or eliminates connections which could cause tonal shifts and distortion.
Passive Or Active
Direct Box Active is best for instruments with passive pickups, especially acoustic instruments. The Direct Box Active can also operate in "passive" mode. Direct Box Passive is best for balancing the signal of instruments with active electronics, but still performs extremely well on passive pickups by producing a frequency range that exceeds the bandwidth of most passive DI boxes on the market.

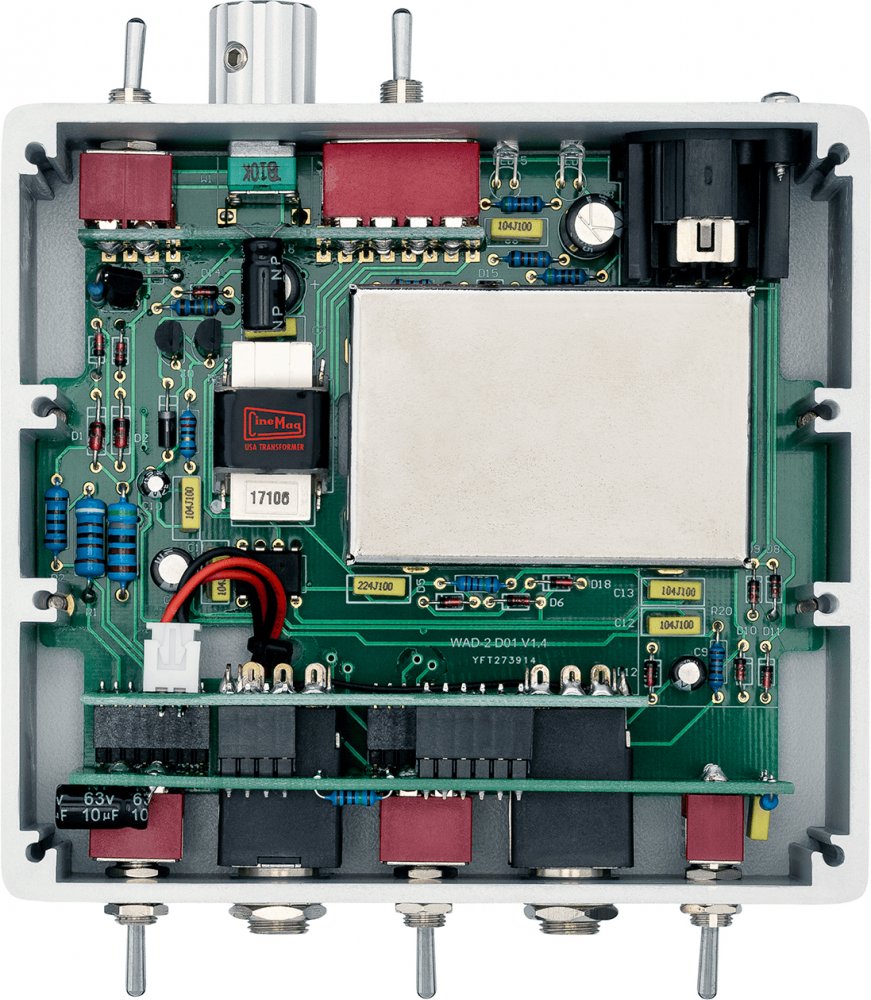

POWER: 48V PHANTOM OR TWO 9V BATTERIES. CAN ALSO BE USED PASSIVELYCUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMERCONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATIONIDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRETOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARDRUGGED ALUMINUM CONSTRUCTIONPAD: VARIABLE FROM -3 TO -30DBBALANCED OUTPUT: 600 OHMS, MIC LEVELINPUT IMPEDANCE: 1 MEG OHMSTHD: .01% FROM 20HZ TO 50HZ. LESS THAN .003% FROM 50HZ TO 20KHZFREQUENCY RESPONSE: 10HZ TO 90KHZ +/- 0.5DB
