Universal Audio LA-2A
UPC/EAN #819937000034
MPN #UA-LA2A
$8149.00
Save 19.9%, MSRP $10179.00

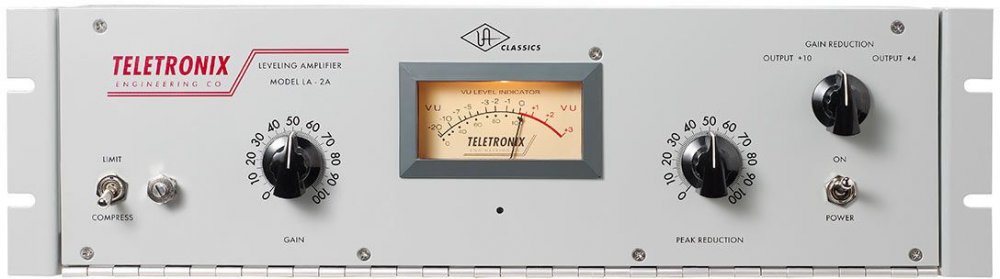

Teletronix LA-2A Classic Leveling Amplifier. True to the Original Design, our Famed Tube-Amplified T4 Electro-Optical Classic Compressor
Audio professionals passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics. A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion an accomplishment at the time, still appreciated today.

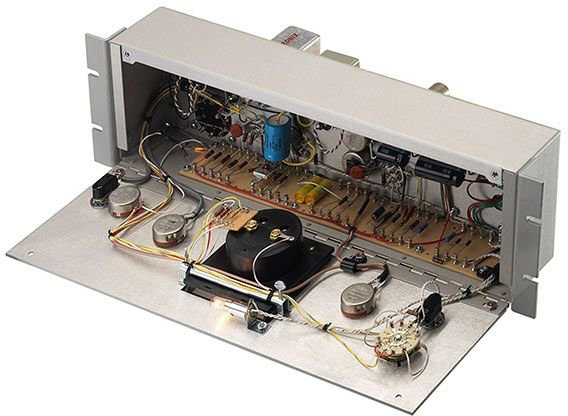

Universal Audio now announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every new LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.
Features
True to the original in design, manufacturing and performanceLag free, distortion free optical attenuator systemDistortion less than 0.5% THD0 to 40 dB gain limitingBalanced stereo interconnectionFrequency response 1 dB, 30 to 15,000 cpsOutput level of 10 dBm and 40 dB gainLow noise less than 70 dB below +10 dBm output
Specifications
Input Impedance
50, 150, 250, 600 ohms
Output Load Impedance
50, 150, 250, 600 ohms

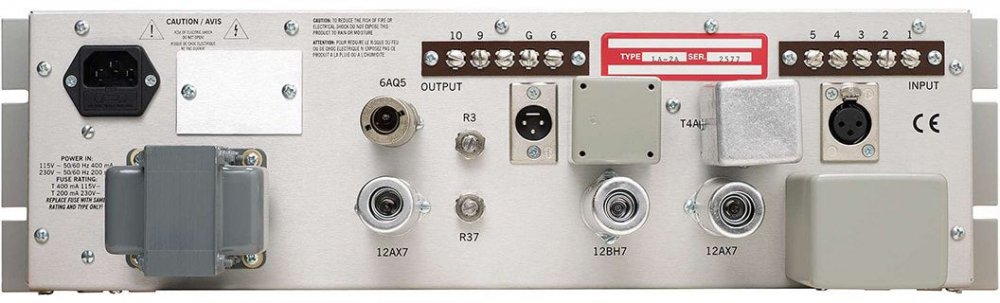

External Connections
Jones Barrier terminals and XLR connectors
Frequency Response
+0/-1 dB 30 Hz to 15kHz
Gain
40 dB ±1dB
Input Level
+16 dB maximum
Output Level
+10 dB nominal, +16 dB maximum
Distortion
Less than 0.5% THD (0.25% typical) at ±10 dBm
Noise
70 dB below +10 dBm output level
Attack Time
10 milliseconds
Release Time
0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
Meter
dB gain reduction and dB output
Power Requirements
35 watts, 120/240 volts, 50/60 Hz
Environmental
Maximum operating temperature 160F
Dimensions
19" Rackmount chassis, 3U
Weight
13 lbs.
