United Studio Technologies UT-Tube67
UPC/EAN #753459600269
MPN #UT-Tube67
$1799.00
Économisez 20%, Prix suggéré $2250.00
Vintage-inspired tube condenser mic with NOS EF86 tube, custom capsule, and transformer. Delivers silky, full-bodied tone for vocals, instruments, and studio use.

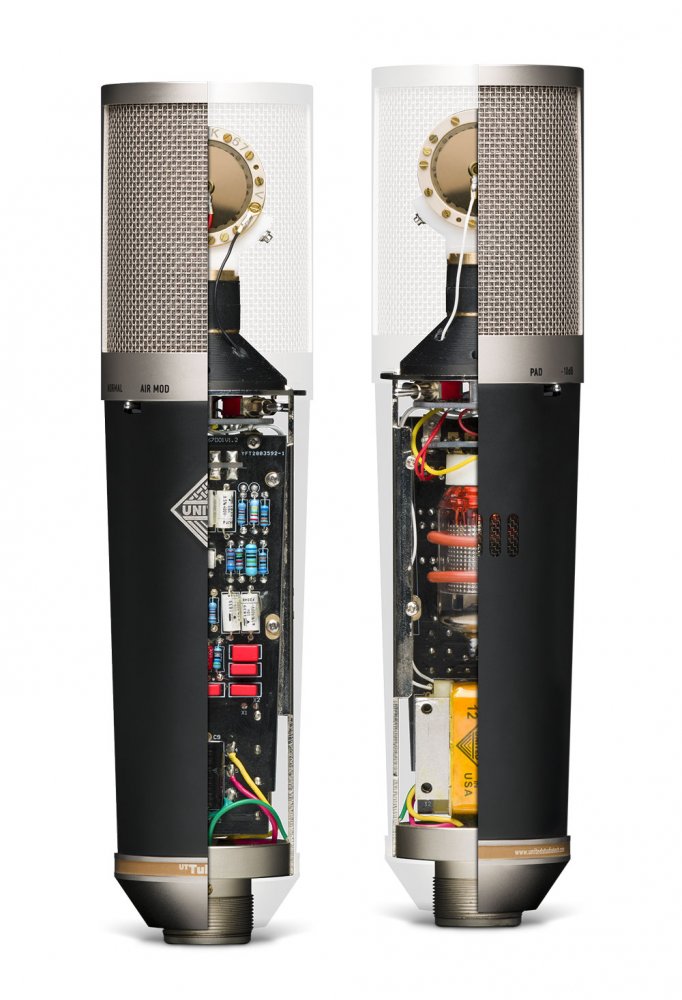

The United UT Tube67 is a faithful homage to one of the most legendary studio microphones ever made, renowned for its velvety, full-bodied tone that has shaped countless classic recordings since the 1960s. Designed around a NOS EF86 pentode vacuum tube, a custom United K67 dual-diaphragm capsule, and a US-made UT-BV12 transformer, this microphone delivers the silky-smooth top end and warm, intimate character that engineers and artists prize for vocals and instruments alike.
With its switchable "Air" mod for subtle high-frequency lift, wide polar pattern selection (Cardioid, Omni, and Figure-8), and boutique-level construction, the UT Tube67 excels in capturing everything from vocals and acoustic instruments to full ensembles. Built with uncompromising attention to detail - including a custom Sommer 7-pin cable, regulated power supply, and precision assembly in the USA - the UT Tube67 is a versatile studio workhorse that combines vintage magic with modern reliability.
Caractéristiques
Faithful reproduction of the classic 67-style German tube microphoneUses NOS 1960s EF86 pentode vacuum tube for silky-smooth toneCustom United K67 capsule, dual-diaphragm/backplate, 24k gold-sputtered, 6 µm MylarCapsule design based on a 1970s golden sample with enhanced low"midrange responseCustom-wound, US-made UT-BV12 transformer with high-nickel laminations and copper Faraday shield for reduced RFISwitchable Air Mod for subtle high-end lift and smoother transientsWide polar pattern selection: Cardioid, Omni, Figure-8Frequency response: 20 Hz " 20 kHzHandles SPL up to 137 dB @ 0.5% THDLow self-noise (<11 dB) for clean recordingsBuilt-in 80 Hz high-pass filter and -10 dB padOutput impedance: 38 ? via gold-plated XLR (from power supply)Solid brass body with nickel electroplate / black satin finishIncludes: high-performance power supply, custom Sommer Octave 7-pin cable (6 m), shockmount, and vintage-style pouchDesigned, assembled, and tested in the USA
Spécifications
General Specifications
Microphone Type: Condenser microphone, Dual-diaphragm, dual-backplate K67 capsule, 6-micron 24k gold-sputtered Mylar diaphragmAmplifier: NOS EF86 pentode vacuum tubePolar Patterns: Cardioid, Omni, Figure-of-8Frequency Response: 20 Hz to 20 kHzMax SPL: 137 dB @ 0.5% THDSelf Noise: Less than 11 dB
Output
Custom-wound United UT Series transformer (USA-made)Output impedance: 38 ohmsConnector: 3-pin XLR (24k gold-plated), pin 2 hot, pin 1 ground (from power supply)
Additional Features
High-Pass Filter: 80 Hz (12 dB/octave)Pad: -10 dBSwitchable "Air" mod for subtle high-frequency lift and transient clarityIncludes regulated high-performance power supplyCustom Sommer Octave 7-conductor cable (6 m / 19.7 ft)Suspension shockmountVintage-style storage pouch
Construction
Body: Solid milled brassFinish: Nickel electroplated / black satin paint

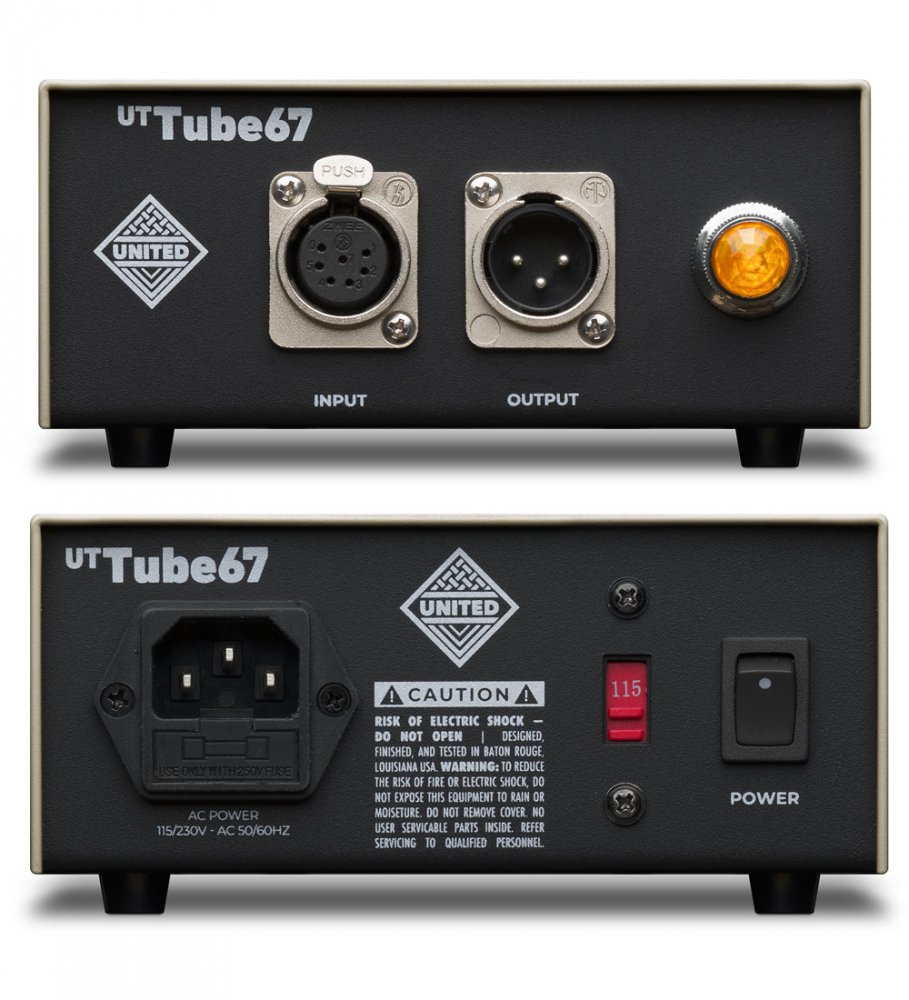

Power Supply
Power Input: 110-120 VAC or 220-240 VAC (switch selectable)Connector: IEC320 3-conductor receptacle
Power Supply Dimensions
Height (with feet): 67 mmHeight (w/o feet): 60 mmWidth: 143 mmDepth: 171 mm
Microphone Dimensions
Height: 244 mm (9.6 in)Diameter: 60 mm (2.375 in)Shockmount depth: 119 mm to 183 mm (4.69 in to 7.2 in)
Recommended Applications
Vocals: Male, Female, GroupInstruments: Acoustic & Electric Guitar, Acoustic Bass, Brass, Woodwinds, Piano, Percussion, CymbalsEnvironments: Room capture, Hall captureOther: Podcasting, Narration, Broadcast, Sample capture
