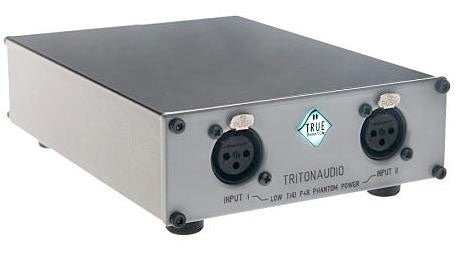

Triton Audio True Phantom
UPC/EAN #764804148572
MPN #TRUE PHANTOM
True Phantom is a breath of fresh air when used with any such mic. It does not affect the frequency response of the microphone but lowers the mic output's THD significantly.
For powering condenser microphones, the IEC 61938 Phantom Power supply has been the standard for years. Although being proven technology, there are several disadvantages to the current implementation. The microphone signal, for instance is not completely available to he microphone preamp. To the microphone's circuit, the 6K8 resistor presents a load, this causes distortion and reduces the available signal. Also, with the IEC 61938 Phantom Power implementation, isolation from the rest of the preamp or mixer circuit is not complete, this can negatively affect noise performance.
True Phantom uses patented technology which overcomes these problems. True Phantom's electronics enable the microphone to operate at no-load condition, which lowers distortion, compared to the current implementation it achieves lower distortion and an increase of the signal-to-noise ratio.
Features
Dual channel for stereo recordingXLR in and OutputsPower on indicatorGround lift switchBuilt-in High end Phantom blocking circuitDirect switch, bypasses the Phantom Blocking circuit
Specifications
Low THD P48 Phantom Power Supply115V / 230V ACStereo XLR IN & OUTGround Lift switchDirect switch
