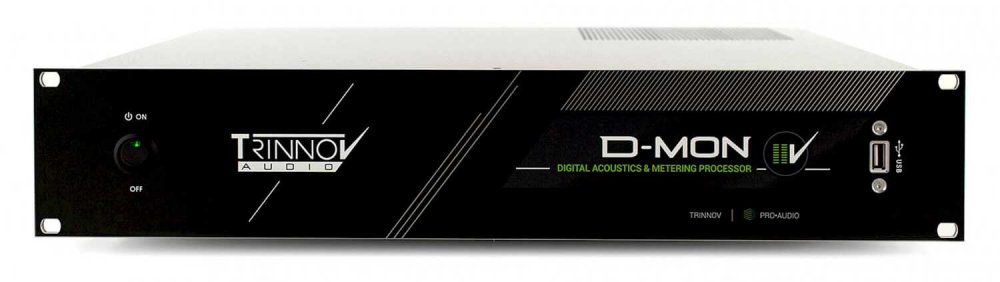

Trinnov Audio DMON Optimizer
Multichannel processor featuring Trinnov Optimizer technology, EUCON integration for Avid Pro Tools and processing capability from stereo up to Dolby Atmos, base unit
The D-MON Series is a new range of Digital Monitoring Processors, with the acclaimed Optimizer room correction and EUCON integration for AVID Pro Tools systems. The D-MON will fit exactly into your studio configuration. Whatever your speaker sets may be, whether your mixes are in stereo, 5.1, 7.1 or even Dolby Atmos up to 9.3.6.
MODULAR AND UPGRADABLE
The D-MON series redefines professional audio monitoring.
Comprehensive feature set and unforessen flexibility makes it one of the most sustainable monitoring solution ever designed.
D-MON supports from 6 up to 18 acoustic Optimization channels. Start with what you need and upgrade later via software update. 6 Optimizer channels are included on the base unit and it is upgradeable for up to 18 Optimizer channels.
Our world-renowned room correction Optimizer Technology is recognized as best-in-class by users and reviewers across the professional, commercial cinema and high-end audio worlds.
Introduced to the pro audio market in 2006, its revolutionary solution was quickly embraced by many of the most demanding music, broadcast and post-production sound engineers.
Optimizer technology is now used in nearly 2,000 studios across the globe with nearly 10,000 high-performance installations worldwide.
MULTIPLE SPEAKER SETS
D-MON is a powerful processor when it comes to integrating multiple speaker sets
You can not only optimize up to 18 speakers but also mix and match them in any way or form.
Use your main sub with your near fields, create a 5.1 out of two sets or optimize only your surrounds, the possibilities are endless.
PERFECT MATCH FOR DOLBY ATMOS
D-MON meets Dolby's requirements for Atmos.
Whether you mix TV or Music content, D-MON accomodates any Atmos Home speaker layouts.
Optimize any system from 5.1.4 up to 9.3.6.
MATRIX BASS MANAGEMENT
D-MON supports and helps with the integration of multiple subwoofers.
Bass manage any speaker to one or multiple subwoofers.
Advanced management system with custom filter details (freq, slope, shape)
INTEGRATES WITH AUDIO OVER IP
Ravenna/AES 67 support, compatible with Aneman
Dante compatibility mode
Add an extra 16in/16outs at 48kHz to every D-MON processor
? Both Analog and Digital professional inputs and outputs
? Integrates easily from MIDI and GPIO to Avid and EUCON protocols.
? A zero latency Switching Matrix to route all signals.
? An Internal Mixer which can create various sums of stems.
? Trinnov?s Optimizer to perfectly tune any speaker sets.
MADE FOR ONE ANOTHER
Our brand-new hardware remote controller ?La Remote? is the perfect companion to our D-MON.
Access all monitoring function by the touch of a button.Customize all buttons and labels to your workflow.Easy set-up via our web-based configuration software.Added talk back microphone and headphone volume knob.
6 Optimizer channels included on the base unit upgradeable up to 18 channelsLatency-free Audio Routing Matrix, User assignable Functions (Main, Alt, Cues, Talk-Back, Listen-Back...,)16 channels low latency mixerFull control via Trinnov La RemoteEucon compatible, ICON DControl/DCommand compatible. Custom integration via midi or GPIOAll OPTIMIZER functions for best Room Correction from Stereo to full Atmos 9.3.6 Speaker SetsAoIP RAVENNA, with DANTE compatibility via AES67 (48 KHz) (software upgrade from Dec. 1st 2021)Matrix Bass Management, with several subwoofers per speaker-set (software upgrade from Dec. 1st 2021, for previous and new machines)

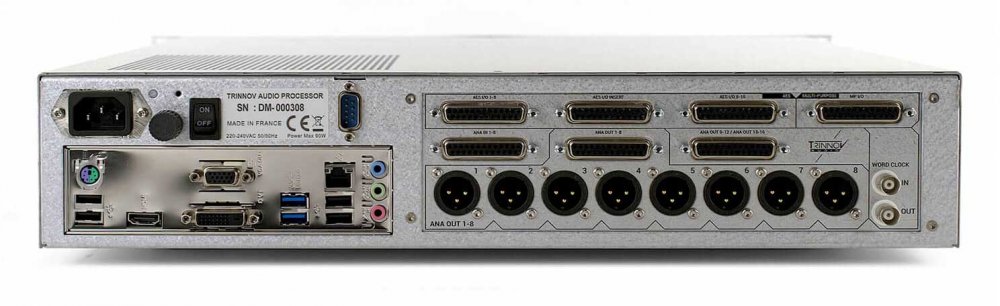

DIGITAL AUDIO CONNECTIVITY
AES3 Outputs (DB25) Tascam Pinout: x16
AES3 Outputs (DB25) Tascam Pinout: x16
Ravenna/AES67: 16 inputs/16 outputs
Dante compatibility: Yes (48kHz)
Wordclock (BNC): x1 Input, x1 Output
ANALOGUE AUDIO CONNECTIVITY
Balanced inputs (DB25): x8
Balanced outputs (DB25): x16
Balanced outputs (XLR): x8
AUDIO OVER IP CONNECTIVITY
Ravenna / AES67: 16 inputs/16 outputs
Dante Compatibility: Yes (48kHz)
PTP Leader Clock: No (sync via AES/EBU or WC)
MULTI PURPOSE I/O (DB25)
General purpose control inputs: x2
General purpose control outputs: x1
Talk Back / Listen Back inputs: Balanced inc. 36V Phantom power
Headphones output: x1 unbalanced
MIDI: x1 Input, x1 Output
SWITCHING & SUMMING
Sources: 8 Cues/TB/LB
Monitor Selection: Programmable presets & profiles
Switching: Any input, bus or Optimizer out to any physical out
Summing: 18 in / 16 bus
Native resolution (up to 12 channels): 96kHz
Native resolution (above 12 channels): 48Khz
Per channel: 31 band EQ, FIR EQ, gain, polarity and delay
Per channel delay setting: Meters / Milliseconds / Frames
Global delay setting: Meters / Milliseconds / Frames
ADC Resolution / Sampling Rate: 24 Bits/96 kHz
DAC Resolution / Sampling Rate: 24 Bits/96 kHz
A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
Processing Sampling Rate: Native, up to 96kHz
Processing Resolution: 64 bits floating point
Clock / Jitter: attenuation > 50 dB Above 100Hz
Power requirement: 240V / 110V - 50 / 60Hz (Manual Switch)
Power consumption: 60W
Mains fuse: 1A slow blow
Analogue section PSU: Dedicated linear PSU with toroidal transformer
Digital section PSU: Switch-mode PSU
WEIGHT & DIMENSIONS
Dimensions (W x H x D) mm: 444 x 89 x 405
Dimensions (W x H x D) inches: 17 1/2" x 3 1/2" x 16"
Shipping box dimensions (W x H x D) cm: 68 x 56 x 21
Weight: 9.60kg / 21.1 lbs
Shipping weight / volume: 12.50 kg / 0.08 M3
Rackmounting: 2U - Fixed Rack Ears
Write a review about the Trinnov Audio DMON Optimizer
May 3, 2023
Best piece of studio gear in 20 years!
I have used several room correction systems including Anthem ARC, Dirac Live, and SonarWorks (older version). They all have their merits, but the Trinnov room correction is VERY different. Quite remarkable. Astounding how it snaps the image into focus, with the phase correction obviously working magic far beyond simply putting a custom EQ on things. Read more
Integrating a subwoofer was so easy. Despite the inherent sophistication, measurement are dead simple and fast with the 4 capsule 3D mic.
I demoed an ST2, but settled on the D-Mon as I wanted the enhanced IO functionality and it also has a better software interface for control. It can switch between different monitor sets with and without sub with ease. I am not using the surround functionality, though it is there. There is a bit of a learning curve with setup, but once that has been conquered the day to day is dead simple and reliable. Easily the best addition to my studio arsenal in 20 years.
