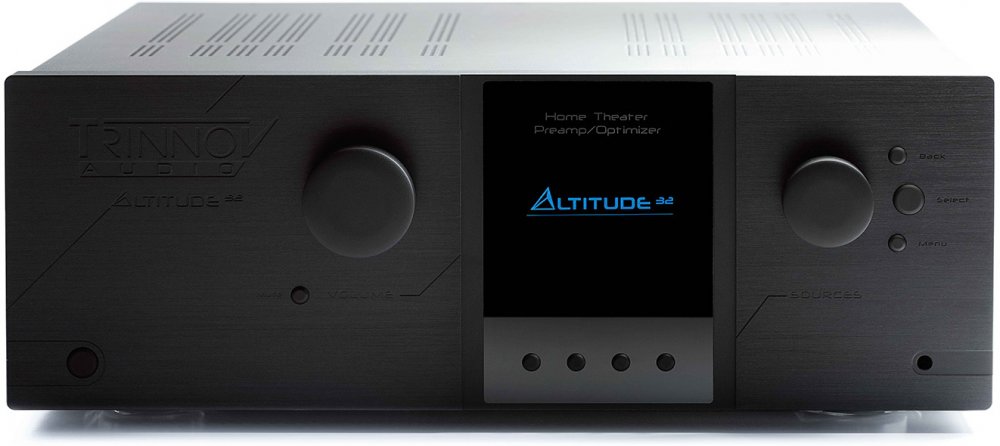

Trinnov Audio Altitude 32-816
MPN #AL32-816
36-Channel reference immersive sound AV processor with 8-ch digital inputs, 16-ch digital audio processing and 16 balanced analog outputs
THE ULTIMATE EXPERIENCE IN IMMERSIVE AUDIO
Peerless in performance, configurability and sound quality, the Altitude32 remains the unchallenged reference processor for Immersive home theater systems. Nothing has been left to chance: high-channel count, huge processing power and exclusive patented technologies unleash the full potential of immersive sound, enabling all formats and the widest range of speaker layouts.
UPGRADABLE BY DESIGN
The hardware architecture of the Altitude32, unique among home theater processors, challenges the concept of obsolescence by enabling the integration of new technologies, new features, and product upgrades through a pure software implementation provided at no cost to Altitude owners. This is a truly sustainable product that gets better over time with the introduction of new features and a scalable, modular hardware design that enables easy system expansion up to the full channel counts of home Atmos and DTS:X and to a maximum of 64 outputs.
Its revolutionary hardware architecture runs not on the multiple sets of DSPs found on other processors but instead on a single multi-core Intel hardware platform and TrinnovOS operating system. This enables Trinnov to bring new technologies and features to market months and years ahead of competition.
+4 CHANNELS
This feature increases the capacity of each Altitude32 model by extra discrete channel decoding and Optimization.
By enabling the use of 4x AES/EBU outputs in addition to the analog outputs, Trinnov further unleashed the potential of the Altitude32.
This update comes free of charge to all Altitude32 owners who can now add extra subwoofers or channels to their system to increase its performance.
STEP BY STEP WIZARD
First-time users will find the Altitude Wizard an invaluable tool for setup and calibration.
This onboard software guides the integrator through the entire process, step-by-step. From configuring the speaker layout, setting up the input and outputs, to the microphone setup and calibration, the Wizard greatly simplifies the process of getting the Altitude up and running.
UNIQUE REMAPPING TECHNOLOGY
In real-world rooms, we can?t always place speakers where we should. And in any case, Dolby, DTS, and Auro each have a different idea where they should go. Trinnov?s exclusive, patented Remapping is the only solution.
During calibration, Trinnov?s unique 3D microphone precisely maps the location of each loudspeaker in the room regarding distance, azimuth and elevation.
When decoding a particular soundtrack, we know the intended placement of each of the various sound elements. Then Remapping, taking the reality of the room into account, ?remaps? errant sounds to the proper locations by using adjacent speakers and the principle of stereo imaging.
UNIQUE BASS MANAGEMENT
The Bass Management solution in the Altitude gives users the most sophisticated tool available for managing low frequencies.
Complete flexibility regarding high and low pass frequencies, filter types and filter slopes is just the beginning. The low frequency content of any channel can be fed to any combination of subwoofers, and there is no limitation to the number of subwoofer channels other than the number of available outputs.
HDMI UNBOUND
HDMI and its evolving standards continue to create challenges for manufacturers, integrators and end users. Rest assured that the Altitude philosophy of sustainability applies to HDMI. The Altitude?s modular hardware design ensures that future developments of the HDMI standard will not make the processor obsolete. All Altitudes will be upgradeable to HDMI 2.1.
Today, our proprietary software platform enables users to monitor and analyze all incoming and outgoing HDMI data directly on the Altitude, in addition to providing unique tools that can address HDMI incompatibility issues.
Going further, our unique intermediate bass management system is ideal for immersive systems using smaller height channel speakers. It can redirect low frequencies not just to subwoofers, but from a speaker with limited bass capability to the closest, more-capable speaker, before sending the lowest frequencies to the subs.
REMOTE ACCESS
Through its Paris-based server, Trinnov enables remote access to any processor connected to the Internet.
Integrators can remotely access each processor they have installed, with full control of all parameters, thus eliminating the need to be on site to adjust a customer?s system or to diagnose problems.
In addition, the Trinnov factory support team, based in the United States and France, and acknowledged as among the best in the industry, also has remote access to provide higher-level remote assistance and troubleshooting.
Features
Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decodersTrinnov's world-renowned Loudspeaker/Room OptimizerExclusive 3D remapping technologyRemote access over the InternetUnique Bass Management solution
Specifications
OBJECT BASED DECODING (ALL VERSIONS)
Dolby Atmos Native Decoding & Up-mix: Up to 34 discrete channels
Auro-3D Native Decoding & Up-mix (Auromatic): Up to 13.1
DTS:X Pro: Up to 30.2
Speaker Layouts support: All
IMAX Enhanced: Yes
OBJECT BASED DECODING
Future 3D Audio CODECs by software upgrade: Yes
Dolby Atmos / Auro-3D / DTS:X Manual Mapping: Yes
CHANNEL CAPABILITIES
Max Channels: x20
Max Optimizer Channels: x20
Max Subwoofers: x20
Max Crossovers (2/3/4 way): 8/5/4
Full Input / Output Matrix (all versions): Yes
Configuration presets (all versions): 29
CHANNEL BASED AUDIO DECODING
Dolby: Digital, Digital Plus, TrueHD
DTS: Digital Surround, High Res Audio, HD Master Audio
PCM: Up to 24 bits / 192 KHZ
Roon: YES
HDMI CONNECTIVITY
Output 1: HDMI 2.0 / HDCP 2.2
Output 2: HDMI 2.0 / HDCP 2.2
ARC / eARC: Available on Output 1
4K to 1080 Downscaling: Available on Output 1
Inputs: 8 (full matrixing to the outputs coming in 2021)
OSD: Basic functions (coming in 2021)
Maximum resolution: 4K UHD on all ins/outs
Maximum bandwidth: 18Gbps on all inputs
Frame rates supported: 24/25/30/50/60 fps 120 fps (HD only)

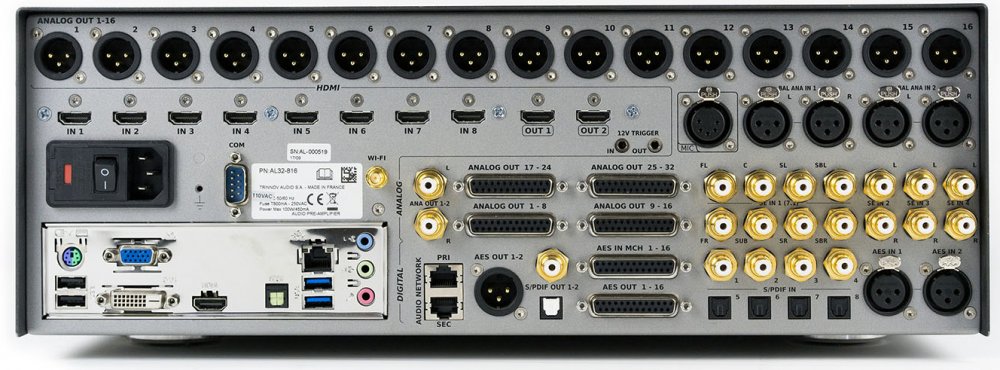

DIGITAL AUDIO CONNECTIVITY
S/PDIF Inputs: x4 (2 optical, 2 coaxial)
S/PDIF Outputs: x2 (1 optical, 1 coaxial)
AES3 Inputs (XLR): x2
AES3 Outputs (XLR): x1
AES3 Outputs (DB25) : x8 upgradeable to 16
AES3 Input Compliance: DCI
Audio Network: Dual ports (for future use)
ANALOGUE AUDIO CONNECTIVITY
Microphone input: 1x 5 Pin XLR for 3D Microphone
Balanced inputs: 2x Stereo XLR
Unbalanced inputs: 3x Stereo RCA, 1x 7.1 RCA
Balanced outputs: x16
Unbalanced outputs: 1x stereo RCA
DB25 Analogue outputs: x16
AUDIO PROCESSING
ADC Resolution / Sampling Rate: 24 bits/96 kHz
DAC Resolution / Sampling Rate: 24 bits/192 kHz
A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
Reference Level: +18dBu @ 0dBFS (Balanced)
Clock / Jitter: attenuation > 50 dB above 100Hz
HARDWARE
Processor: Intel multi core hyper threaded
Data precision: 64 bits, floating point
Cooling system: Custom heat sinks & silent fans
Safety Components: AntiPop relays on each output
POWER SUPPLY
Power requirement: 240V / 110V - 50 / 60Hz (Manual Switch)
Power consumption: 132W Max
Thermal conversion: 450 BTU/h Max
Mains fuse: 1A Slow Blow
Internal PSUs: Separated supplies for Audio and Processing
WEIGHT & DIMENSIONS
Dimensions (W x H x D) mm: 442 x 165 x 445
Dimensions (W x H x D) inches: 17 7/16" x 6 1/2" x 17 9/16"
Shippind dimensions (L x H x P) cm: 74 x 59 x 30
Weight: 14.5kg / 32 lbs
Shipping weight / volume: 22.2kg / 0.131M3
Rackmounting: 3.5U - Rack Ears Included
WARRANTY
Standard Warranty: 5 year
Transferable: Yes
CHASSIS
Standard Color: Black
Optional Color: Silver
