MPN #AL16

$23032.00

Financing available
Free shipping in Canada. Conditions

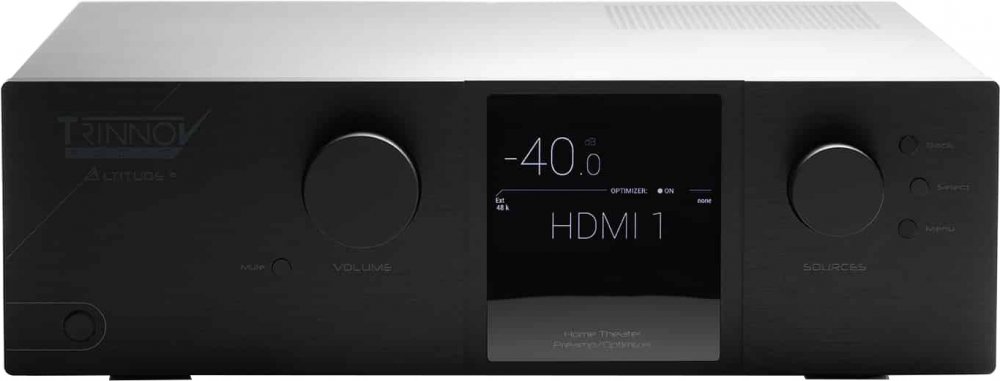

20-Channel reference immersive sound AV processor with 16-ch digital audio processing, 2 analog inputs, 2 audio network connectors, 16 analog outputs (fixed), 3D audio codecs included



NO COMPROMISE
The groundbreaking Altitude32 processor set the bar high -- and we didn?t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov?s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels.

Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.

TRINNOV OPTIMIZER
Our world-renowned Loudspeaker/Room Optimizer is recognized as best-in-class by users and reviewers across the professional, commercial cinema and high-end home audio worlds. Introduced to the pro audio market in 2006, its revolutionary solution was quickly embraced by many of the most demanding music, broadcast and post-production sound engineers.

Optimizer technology is now used in nearly 2,000 studios across the globe with nearly 10,000 high-performance installations worldwide.

This same technology, enhanced and refined over the years, is at the heart of the Altitude. To this day, the Optimizer remains the most powerful and flexible calibration system available.

STEP BY STEP WIZARD
First-time users will find the Altitude Wizard an invaluable tool for setup and calibration.
This onboard software guides the integrator through the entire process, step-by-step.
From configuring the speaker layout, setting up the input and outputs, to the microphone setup and calibration, the Wizard greatly simplifies the process of getting the Altitude up and running.

EXCLUSIVE 3D REMAPPING TECHNOLOGY
In real-world rooms, we can?t always place speakers where we should. And in any case, Dolby, DTS, and Auro each have a different idea of where they should go. Trinnov?s exclusive, patented Remapping is the only solution.

During calibration, Trinnov?s unique 3D microphone precisely maps the location of each loudspeaker in the room regarding distance, azimuth, and elevation.

When decoding a particular soundtrack, we know the intended placement of each of the various sound elements. Then Remapping, taking the reality of the room into account, ?remaps? errant sounds to the proper locations by using adjacent speakers and the principle of stereo imaging.

+4 CHANNELS
This feature increases the capacity of the processor to a total of 20 discrete channel decoding and Optimization.

Converting the S/PDIF Optical output to the ADAT Format, Trinnov unlocked the full potential of the Altitude16.

This update comes free of charge to all Altitude16 owners. By adding an ADAT/Analog converter to their system, Trinnov customers can add extra subwoofers or channels to their system to increase its performance.

UNIQUE BASS MANAGEMENT
The Bass Management solution in the Altitude gives users the most sophisticated tool available for managing low frequencies.

Complete flexibility regarding high and low pass frequencies, filter types, and filter slopes is just the beginning. The low-frequency content of any channel can be fed to any combination of subwoofers, and there is no limitation to the number of subwoofer channels other than the number of available outputs.

Going further, our unique intermediate bass management system is ideal for immersive systems using smaller height channel speakers. It can redirect low frequencies not just to subwoofers, but from a speaker with limited bass capability to the closest, more-capable speaker, before sending the lowest frequencies to the subs.

REMOTE ACCESS
Through its Paris-based server, Trinnov enables remote access to any processor connected to the Internet.

Integrators can remotely access each processor they have installed, with full control of all parameters, thus eliminating the need to be on site to adjust a customer?s system or to diagnose problems.

In addition, the Trinnov factory support team, based in the United States and France, and acknowledged as among the best in the industry, also has remote access to provide higher-level remote assistance and troubleshooting.

HDMI UNBOUND
HDMI and its evolving standards continue to create challenges for manufacturers, integrators and end users. Rest assured that the Altitude philosophy of sustainability applies to HDMI. The Altitude?s modular hardware design ensures that future developments of the HDMI standard will not make the processor obsolete. All Altitudes will be upgradeable to HDMI 2.1.

Today, our proprietary software platform enables users to monitor and analyze all incoming and outgoing HDMI data directly on the Altitude, in addition to providing unique tools that can address HDMI incompatibility issues.
  • Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders
  • Trinnov's world-renowned Loudspeaker/Room Optimizer
  • Exclusive 3D remapping technology
  • Remote access over the Internet
  • Unique Bass Management solution
  • OBJECT BASED DECODING
    Dolby Atmos Native Decoding & Upmix: Up to 20 discrete channels
    Auro-3D Native Decoding & Up-mix (Auromatic): Up to 13.1
    DTS:X Pro: Up to 20 discrete channels
    Speaker Layouts support: All
    IMAX Enhanced: Yes

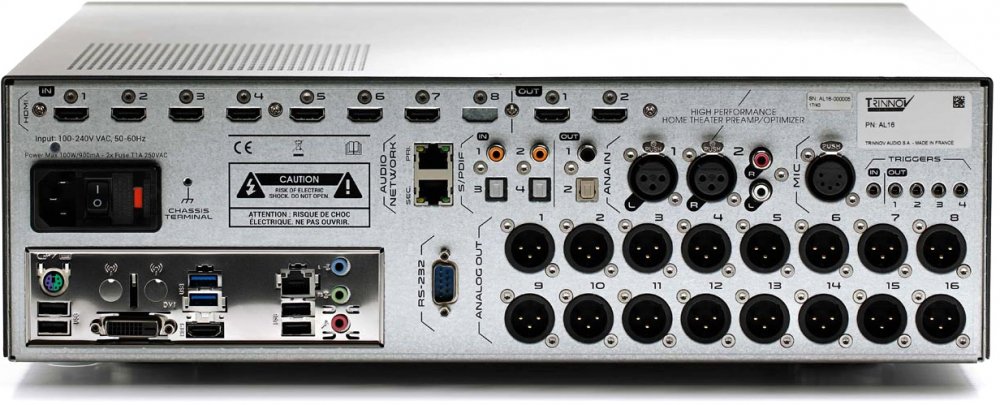

    HDMI CONNECTIVITY
    Output 1: HDMI 2.0 / HDCP 2.2
    Output 2: HDMI 2.0 / HDCP 2.2
    Inputs: 8 (full matrixing to the outputs coming in 2021)
    Maximum Resolution: 4K UHD on all ins / outs
    Maximum Bandwidth: 18Gbps on all inputs
    Frame rates supported: 24/25/30/50/60 fps 120 fps (HD only)
    ARC / eARC: Available on Output 1
    4K to 1080 Downscaling: Available on Output 1
    OSD: Basic functions (coming in 2021)

    DIGITAL AUDIO CONNECTIVITY
    S/PDIF Inputs: x4 (2 optical, 2 coaxial)
    S/PDIF Outputs: x2 (1 optical, 1 coaxial)
    +4 Outputs: S/PDIF optical used as ADAT adds 4 outputs
    Audio Network: Dual ports (for future use)

    ANALOGUE AUDIO CONNECTIVITY
    Microphone input: 1x 5 Pin XLR for 3D Microphone
    Balanced inputs: 1x Stereo XLR
    Unbalanced inputs: 1x Stereo RCA
    Balanced outputs: 16x XLR
    Input Impedance: 20k Ohms / 10k Ohms

    AUDIO PROCESSING
    ADC Resolution / Sampling Rate: 24 bits/96 kHz
    DAC Resolution / Sampling Rate: 24 bits/192 kHz
    A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
    D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
    Reference Level: +18dBu @ 0dBFS (Balanced)
    Clock / Jitter: attenuation > 50 dB above 100Hz

    HARDWARE
    Processor: Intel multi core hyper threaded
    Data precision: 64 bits, floating point
    Cooling system: Custom heat sinks + additional silent fans
    Safety Components: AntiPop relays on each output

    POWER SUPPLY
    Power requirement: 100 - 240v (auto selecting)
    Power consumption: 76W Max
    Thermal conversion: 260 BTU/h Max
    Mains fuse: 2x 1A slow blow
    Internal PSUs: Separated supplies for Audio and Processing

    WEIGHT & DIMENSIONS
    Dimensions (W x H x D) mm: 438 x 139 x 430
    Dimensions (W x H x D) inches: 17 1/4" x 5 1/2" x 17 15/16"
    Shipping dimensions (L x H x P) cm: 74 x 59 x 30
    Weight: 11.30kg / 24.9 lbs
    Shipping weight / volume: 18.2kg / 0.131 M3
    Rackmounting: 3U - Rack Ears Included

    WARRANTY
    Standard Warranty: 5 year
    Transferable: Yes
