Side address tube condenser, cardioid pattern, 30Hz to 20kHz, 2mV per Pascal sensitivity, 200 Ohm impedance, 140dB max SPL, vintage-inspired transformer output.

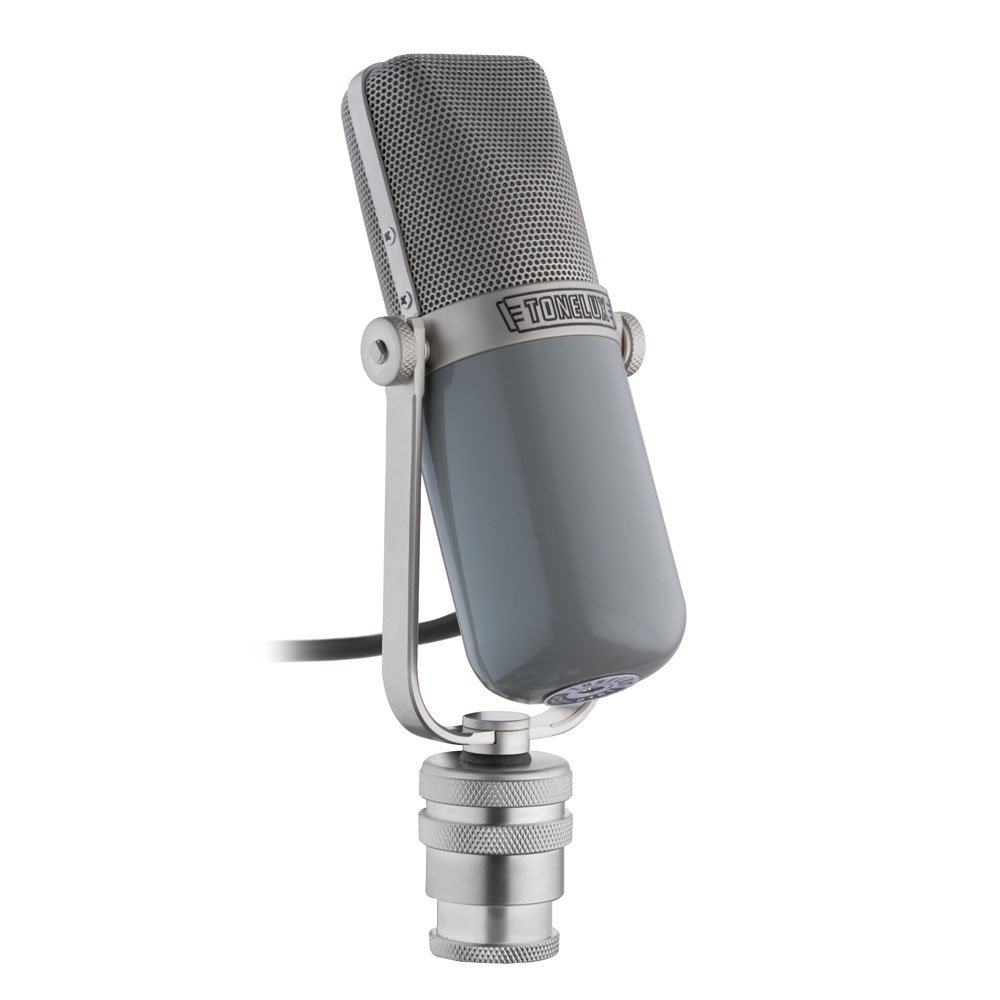

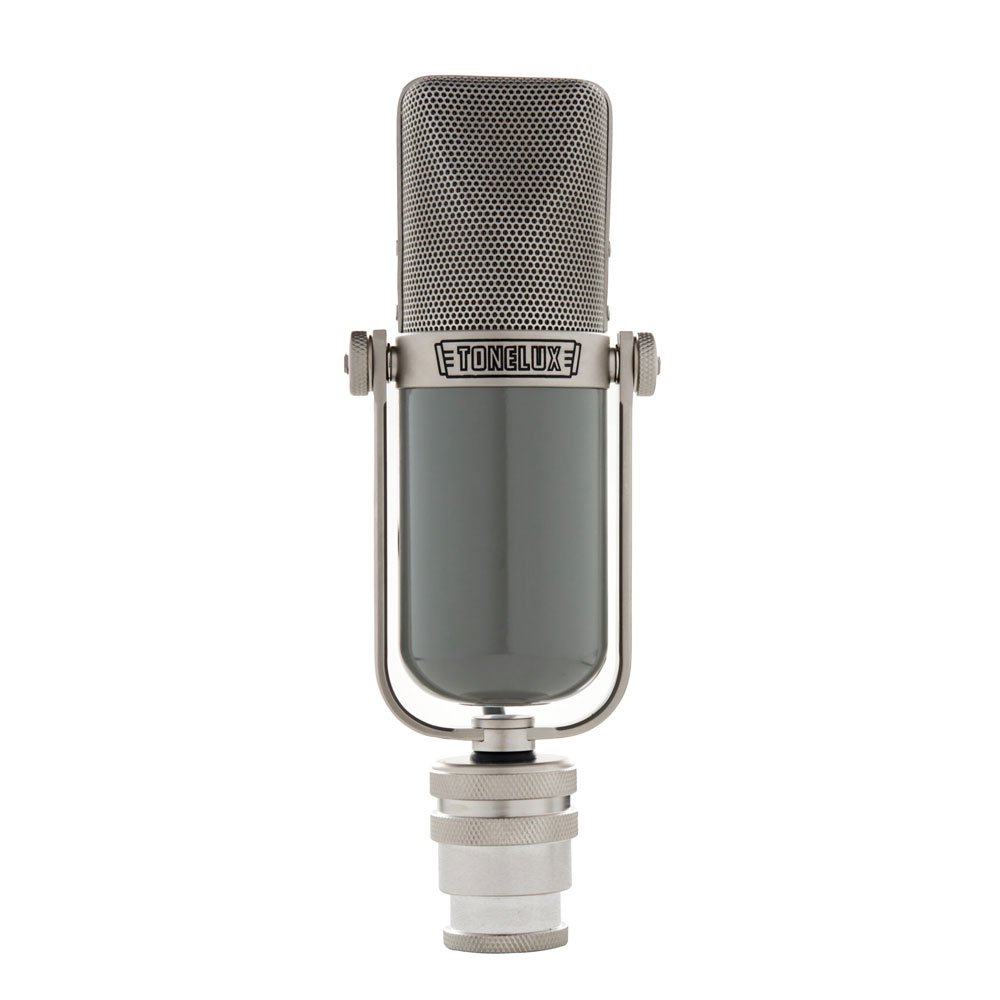

The Tonelux JC37 Single is a standalone version of the JC37 microphone, designed for existing JC37 users who need a second mic for stereo setups. It ships without a power supply, as it's intended to pair with an existing Tonelux Universal PSU capable of powering two mics. For proper stereo matching, users are encouraged to provide their current serial number when ordering.
Inspired by the legendary Sony C37a, the JC37 is a modern recreation developed in collaboration with Grammy-winning engineer Joe Chiccarelli. It retains the original's core design-featuring a 37mm single diaphragm, vacuum tube (JAN-GE5654W), and transformer output-but simplifies the signal path by omitting variable controls for polar pattern or impedance. This minimalist approach results in a cleaner, more consistent tone that highlights the mic's natural warmth and subtle compression at high SPLs.
Ideal for vocals, acoustic instruments, and percussion, the JC37 delivers a smooth midrange dip and airy high-end lift-perfect for taming sibilant voices or adding shimmer to strings and cymbals.
Caractéristiques
Classic Tube Microphone Design: Inspired by the vintage Sony C37a, delivering warm, natural tone with smooth character.
Cardioid Pickup Pattern: Focuses on the source while minimizing room noise and unwanted reflections.
Wide Frequency Response: Captures rich lows and airy highs, from 30 Hertz to 20 kilohertz.
Transformer-Coupled Output: Adds subtle harmonic depth and smooth saturation, especially at higher sound levels.
Minimal Signal Path: Simplified internal circuit with no pattern or impedance switches for a cleaner, purer sound.
Natural Vocal Character: Slight dip in the upper mids and lift in the top end make it ideal for taming harsh or sibilant voices.
Versatile Instrument Recording: Adds air and clarity to acoustic guitars, flutes, cymbals, and more.
High SPL Handling: Handles loud sources like snare drums or brass instruments without distortion.
Vintage-Inspired Saturation: Gentle tube compression adds analog-style dynamics and tone shaping.
Tube Type: JAN-GE5654W: Classic vacuum tube known for smooth performance and tonal warmth.
Built-In Mic Cable: Includes a 3-meter cable permanently attached for connection to Tonelux's universal PSU.
Stereo-Ready Option: Designed to pair with the Tonelux dual-channel power supply for stereo use or later expansion.
Spécifications
General Specifications:
Side address vacuum tube condenser microphone
Designed as a single unit without power supply
Intended for pairing with existing JC37 systems
Integrated 3 meter hardwired cable
Compatible with Tonelux Universal Microphone Power Supply
PSU supports dual microphone operation for stereo setups
Manufactured with component and construction accuracy based on Sony C37a
Hand-tuned and tested at Sunset Sound Studios for tonal authenticity
Transducer and Circuitry:
37 mm single diaphragm transducer
Vacuum tube buffered signal path
Tube type JAN GE5654W
Transformer output design
No pattern, pad, or impedance switches for optimized signal purity
Transformer saturation provides natural soft compression at high SPL
Pickup Pattern and Frequency Response:
Polar pattern cardioid
Frequency response 30 Hz to 20 kHz
Output sensitivity 2 mV per Pascal
Signal to noise ratio 68 dB
Output impedance 200 ohms
Maximum sound pressure level 140 dB
Power and Compatibility:
Operates via Tonelux Universal Tube Microphone Power Supply
Power supply features adjustable B plus and heater voltage
Selectable heater elevation for compatibility with other vacuum tube mics
I O for two microphones supports dual or stereo mic configuration
Construction and Design:
Head grille and body modeled after original C37a design
Transformer and capsule tuned for accurate vintage tone
Carrying case supports dual mics and PSU for matched stereo operation
Made in collaboration with Joe Chiccarelli and Brent Casey
First microphone in Tonelux microphone line
Applications:
Suited for vocals, acoustic guitar, flutes, cymbals, brass, and percussion
Ideal for singers with sibilant or harsh voices
Delivers smooth upper highs and slightly dipped upper midrange
