UPC/EAN #4260452430091     MPN #TR1-B

$349.95

Free shipping in Canada. Conditions

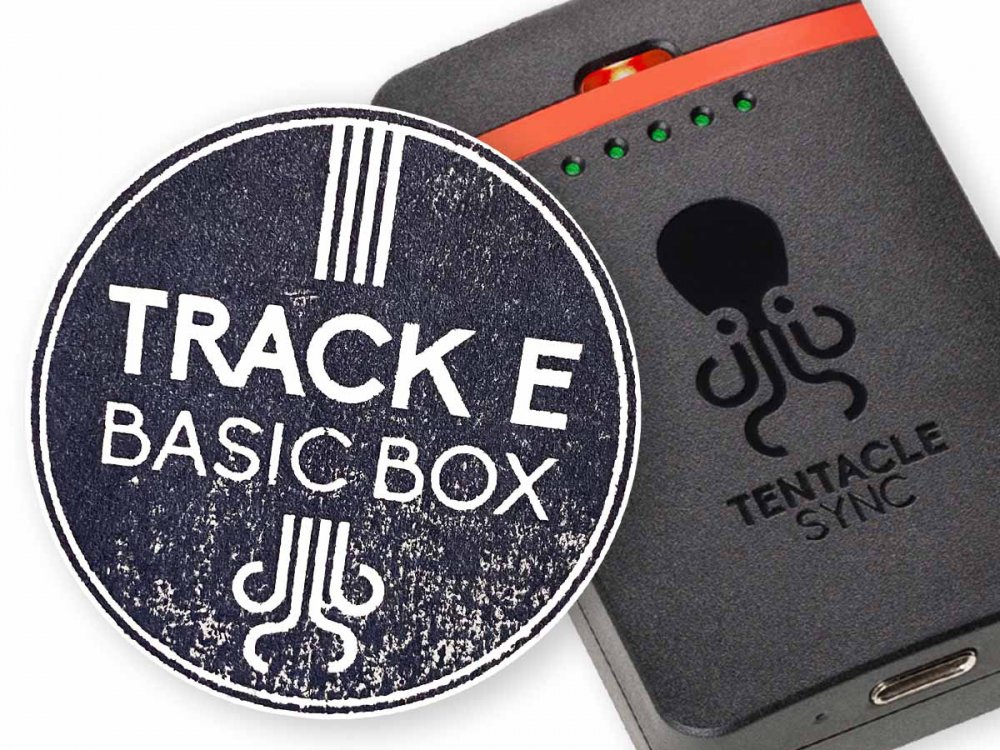

Pocket audio recorder basic kit with essential accessories only



The TRACK E - Basic Box is for those, who already have all the accessories and high quality microphones, but need more TRACK E audio recorders for more multitrack possibilities.

This special "No-Fuzz-Box" contains:
  • 1x Tentacle Sync TRACK E - Timecode Audio Recorder
  • 1x Belt Clip made of Powder-Coated Stainless Steel in Black
  • 1x USB-A to USB-C Charging Cable (USB 2.0)
  • 1x Software License for Tentacle Sync Studio (macOS)

  • The TRACK E Timecode Audio Recorder is nearly as small as the Timecode Sync Generator SYNC E, so it can easily fit in your pocket for recording on the go. This allows mobile operation for example as a recorder for a clip-on microphone eliminating the need for a radio-link. It offers timecode synchronization over Bluetooth based on the well established Tentacle Sync technology. This means that the TRACK E will work in environments where regular wireless transmitter fail.

    Controllable through the Setup App for iOS or Android, it seamless integrates into the SYNC E synchronization network by the push of a button via Bluetooth. But the TRACK E does not necessarily need a SYNC E device to operate " it can easily function as a stand-alone device and can be jam-synced via cable.

    In addition to the ability to record with 24-bit depth, TRACK E also features 32-bit floating point technology for a significantly extended dynamic range. 32 bit floating point also means that no digital clipping will occur, making the TRACK E a versatile set-&-forget-device that will always deliver high quality audio. With the TRACK E users can treat audio in a similar way as photographers use the RAW camera photo format " all details can be adjusted in post production, significantly reducing the preparation time before you start shooting.

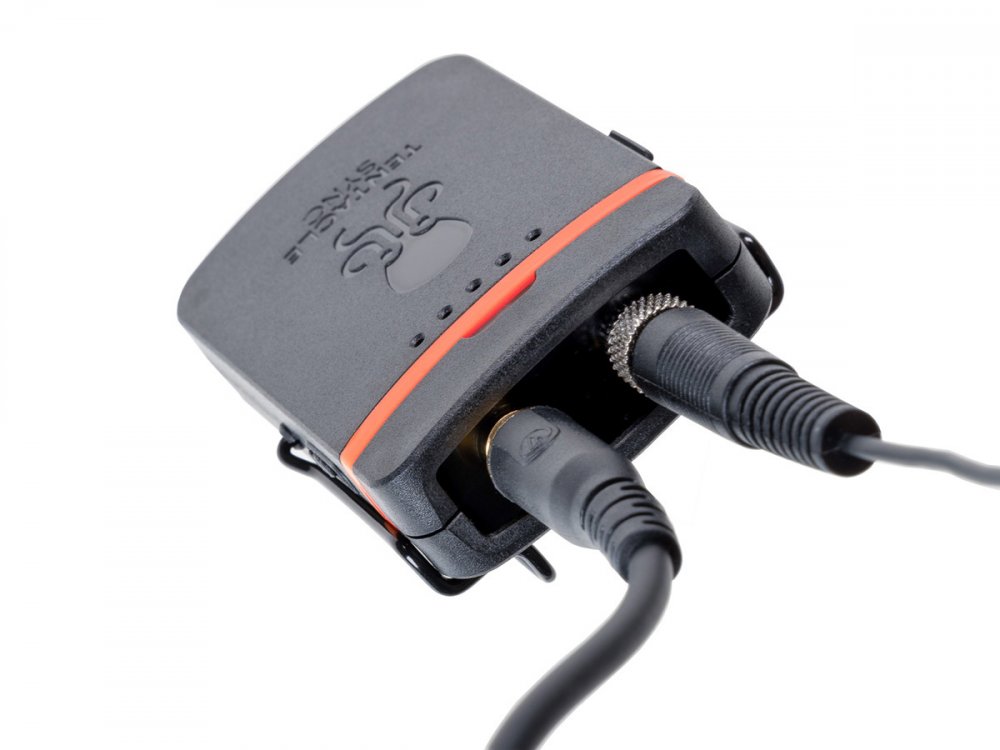

    The TRACK E uses a changeable microSD Card for recording the audio. An input limiter and a high-pass filter guarantee for pristine recording quality. A screwable mini jack connector offers maximum security for connecting microphones. The TRACK E features 5V plugin power for supporting a wide range of microphones. A free license of Tentacle Sync Studio (Mac) is included with every TRACK E purchase.
  • 32-bit Float Recording / 24-Bit Recording
  • Control Multiple Devices via Bluetooth (iOS & Android)
  • Wireless Timecode Sync (Bluetooth) / Jam-Sync via Cable
  • Up to 10 hours Operating Time
  • 2 Year Limited Warranty
  • Designed and Manufactured in Germany
  • Recording
    Number of Tracks: 1
    Sampling Rate: 48 kHz
    Recording Bit-Depth: 32-bit Float / 24-bit
    Recording File Formats: WAV (BWF)
    Recording Time: 30hrs (24-bit) / 23hrs (32-bit Float) with 16GB Card
    Storage Media: microSDHC Card up to 32GB (Class 10) not included
    Signal Processing: Low Cut Filter, Limiter (24-bit only)

    Connectivity

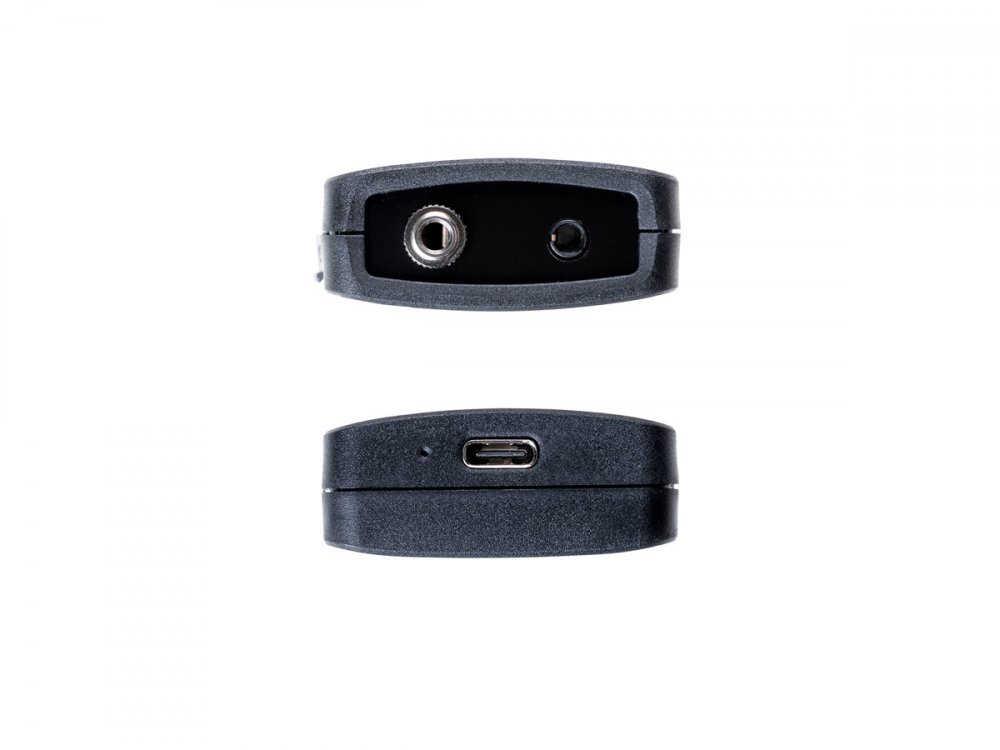

    Microphone Input: 3.5mm Jack (screw lock)
    Mic Plug-In Power: 5 V (switchable)
    Headphone Output*: 3.5mm Jack
    USB Connection: USB-C (USB 2.0)
    USB Modes: Charging, Card Reader, Firmware Update

    Performance
    Frequency Response: 20Hz " 20kHz
    Gain Range: +6 to +46dB
    Dynamic Range: 110dB typ
    THD+N: ? -85 dB (0,05%)

    Control & Sync
    Bluetooth: 5 Low Energy
    Remote Control: Tentacle Setup App (iOS/Android)
    Synchronization: Via Bluetooth (Tentacle Setup App) or Jam-Sync via Cable
    Timecode Input: LTC via Mic In
    Timecode Output: N/A
    Frame Rates: SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF, 30

    Power
    Power Source: Built-in rechargeable Lithium Polymer Battery
    Battery Capacity: 900 mAh
    Battery Operation Time: approx. 10 Hours
    Battery Charging Time: max. 2 Hours

    HARDWARE
    Mounting: Belt Clip (removable) " Black Powder-Coated Stainless Steel
    Weight: 58 g / 2.1 oz
    Dimensions: 47 x 68 x 19 mm / 1.85 x 2.67 x 0.74 inches

    * In the US version the headphone output is deactivated during recording.

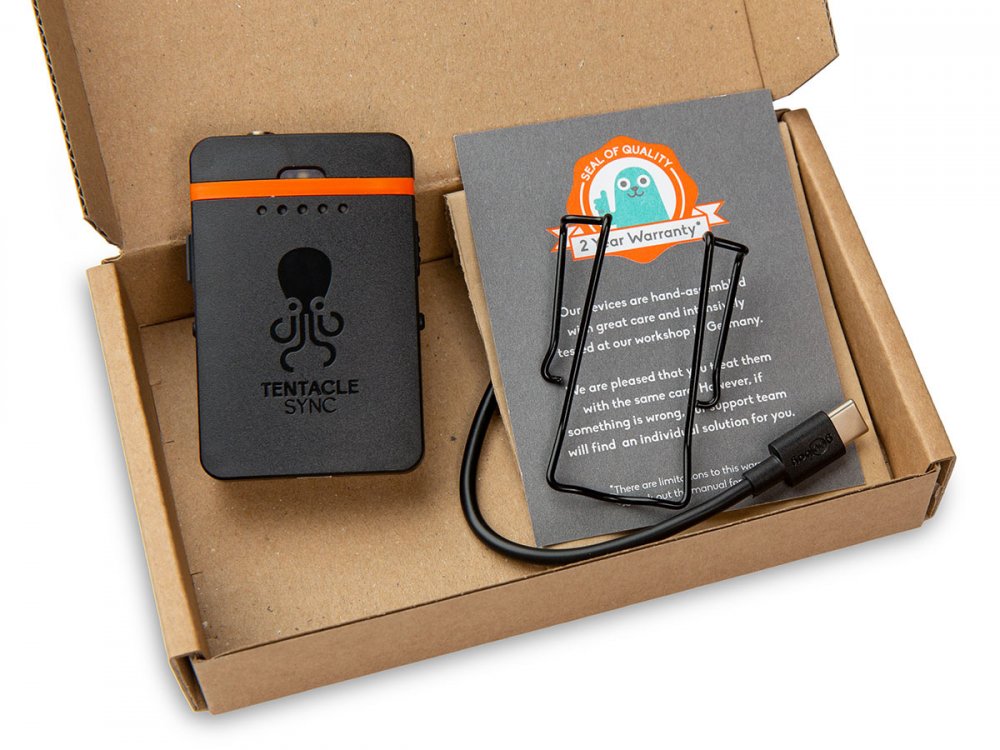

    WHAT'S IN THE BOX
    1x Tentacle Sync TRACK E " Pocket Audio Recorder
    1x 16 GB microSD card
    1x Belt Clip made of Powder-Coated Stainless Steel in Black
    5x Colored Silicone Rings
    1x USB-A to USB-C Charging Cable (USB 2.0)
    1x Software License for Tentacle Sync Studio (macOS)

    RECOMMENDED MICROSD CARDS
    Recommended are SanDisk/WD 8/16/32 GB or similar high-grade Class 10 SDHC up to 32 GB. We have tested the following cards:
    SanDisk Edge 16/32 GB
    SanDisk Ultra 16/32 GB
    SanDisk Extreme 16/32 GB
    SanDisk Extreme PRO 16/32 GB
