Telex BTR-800
MPN #BTR-800

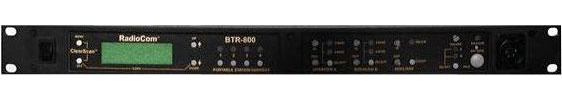

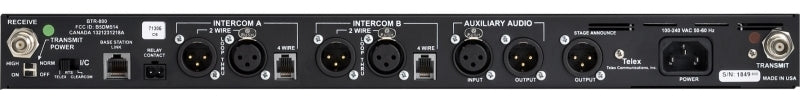

Two-channel UHF synthesized wireless intercom base station.
Two channel UHF frequency agile wireless intercom system with two intercom channel access from each of four full duplex beltpacks, stage announce output with relay closure, wireless talk around (ISO), Enhanced ClearScan™, talk/listen headset station at the base, and much, much more. Combine all of that with an easy-to-use graphical user interface that lets you get started right out of the box, and you've got the most innovative and versatile wireless intercom ever made. But features aren't the only story.
The BTR-800 wireless intercom is a serious performer too. With technology leaps like Intelligent Power Control™ combination tone code/RF noise squelch and DSP digital audio processing, this is one wireless intercom that sounds great, even at a great distance! The BTR-800 is fully compatible with Telex, RTS and Clear-Com hardwired communications systems right out of the box. If your application requires the highest performance and utmost reliability, you need the new Telex Radiocom BTR-800 wireless intercom system.
Features
Backlit Base Station LCD Allows the user to easily monitor the beltpack's statusBase Stations are Table or RackmountableBeltpack units contained in a weather and shock resistant die cast magnesium caseClearScan Function Automatically finds the best channels on which to operateCompatible with Audiocom, RTS, Clear-Com, & Other Wired Intercom TypesConvenient IEC Power Connector on the Base StationFrequency-Agile Base Station & BeltpacksFull Duplex (Simultaneous Talk & Listen) OperationRelay Contract Closure on the Base when the SA Button is PressedSA (Stage-Announce) Beltpack ControlTR-825 Features Two Audio Channel Binaural Operation in Either Stereo or Mono ModeTwo Channels of Intercom AudioWTA (Wireless Talk About) Beltpack Control
Specifications
4-Wire Input and Output : Level Adjustable 2 Vrms typicalAntenna : ½ Wave (supplied), TNC Male Connector TX and RXAuxiliary Input : Adjustable 2 Vrms typicalAuxiliary Output : Adjustable 2 Vrms typical into 600Battery Life : 12 hrsBattery Type : Standard Alkaline BatteriesColor : BlackDepth : 14" (355.6 mm)Deviation : 40 kHz (35 kHz Europe)FCC ID : B5DM514Form Factor : RackmountFrequency Band of Operation : 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bandsFrequency Response : 300 Hz-8 kHzFunction : Base StationHeight : 1.72" (43.7 mm)Local Headset Output : 40 mW output into 600 1% DistortionMicrophone Input Sensitivity : 9 mVModulation Limiter : Peak-Responding CompressorModulation Type : FM
