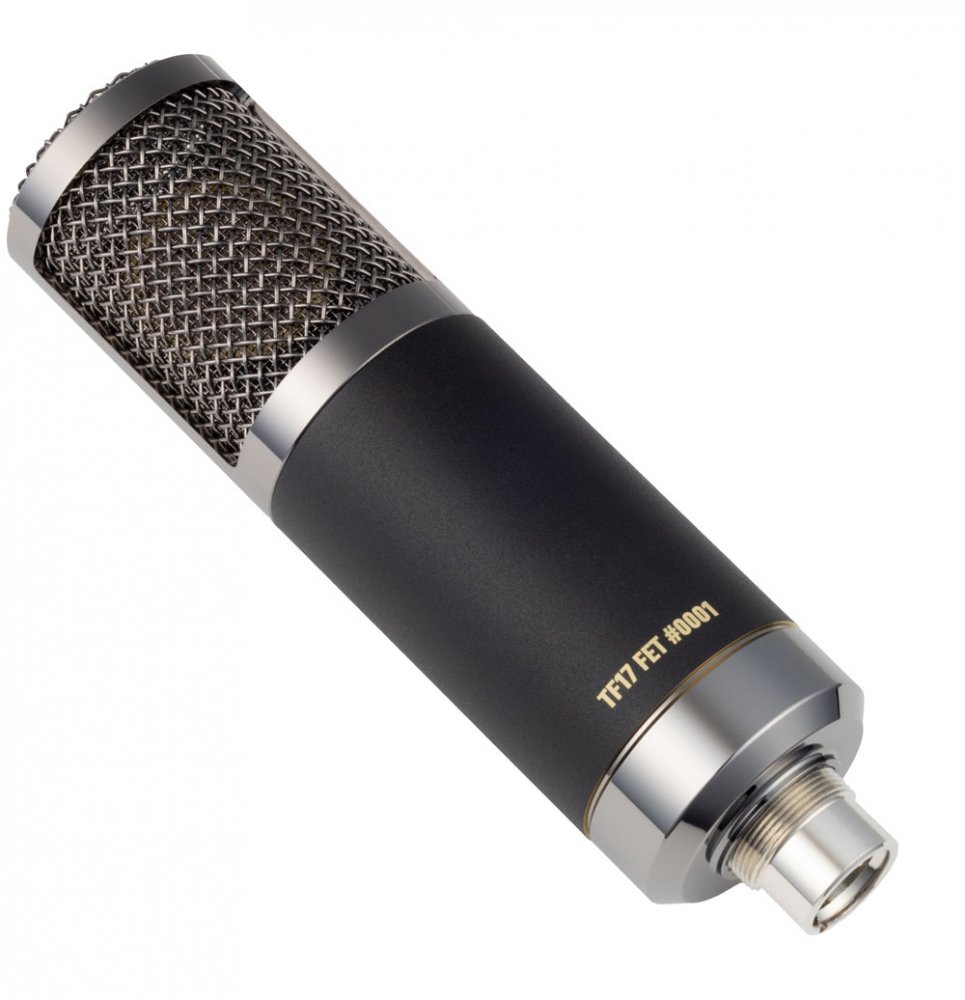

Telefunken TF17 FET Stereo Set

UPC/EAN #810047033998 MPN #TF17 FET Stereo Set

$2503.00

Save 13.8%, MSRP $2903.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Fixed true cardioid polar pattern with K47-style capsule, stereo kit

The TF17 Stereo Set is designed for high fidelity stereo or dual mono recording in the studio or on stage. Combining an iconic "German" inspired mid-forward character with modern FET technology, the TF17 features an extended low frequency response, bold midrange and smooth top end with a fast transient response, high SPL handling, and low self-noise. When used in stereo, the TF17 provides a rich and focused sound stage. Featuring a matched pair of TF17 microphones, this set is ideal for drums and percussion, piano, and vocal or brass ensembles. Each microphone features a K47-style center terminated capsule, precision through-hole components and a discrete, hand-tuned JFET amplifier. The capsules and amplifiers are frequency, gain and noise matched. All TF17 Stereo Sets are assembled, matched, and tested in the USA.

Features

Bold and forward tone with punchy transient response

Compact size suitable for all recording environments

Fixed true cardioid polar pattern with K47-style capsule

High SPL handling, low noise phantom-powered FET amplifier

UK-made OEP/Carnhill transformer with high grade nickel-iron core

Designed and assembled by hand in the USA

Recommended Applications: Vocals, Drums & Percussion, Electric Guitar, Live Sound

Specifications

Polar Pattern: Cardioid
Frequency Range: 20 Hz " 20 kHz, ±3 dB
Polar Pattern: Cardioid
Frequency Range: 20 Hz " 20 kHz, ±3 dB

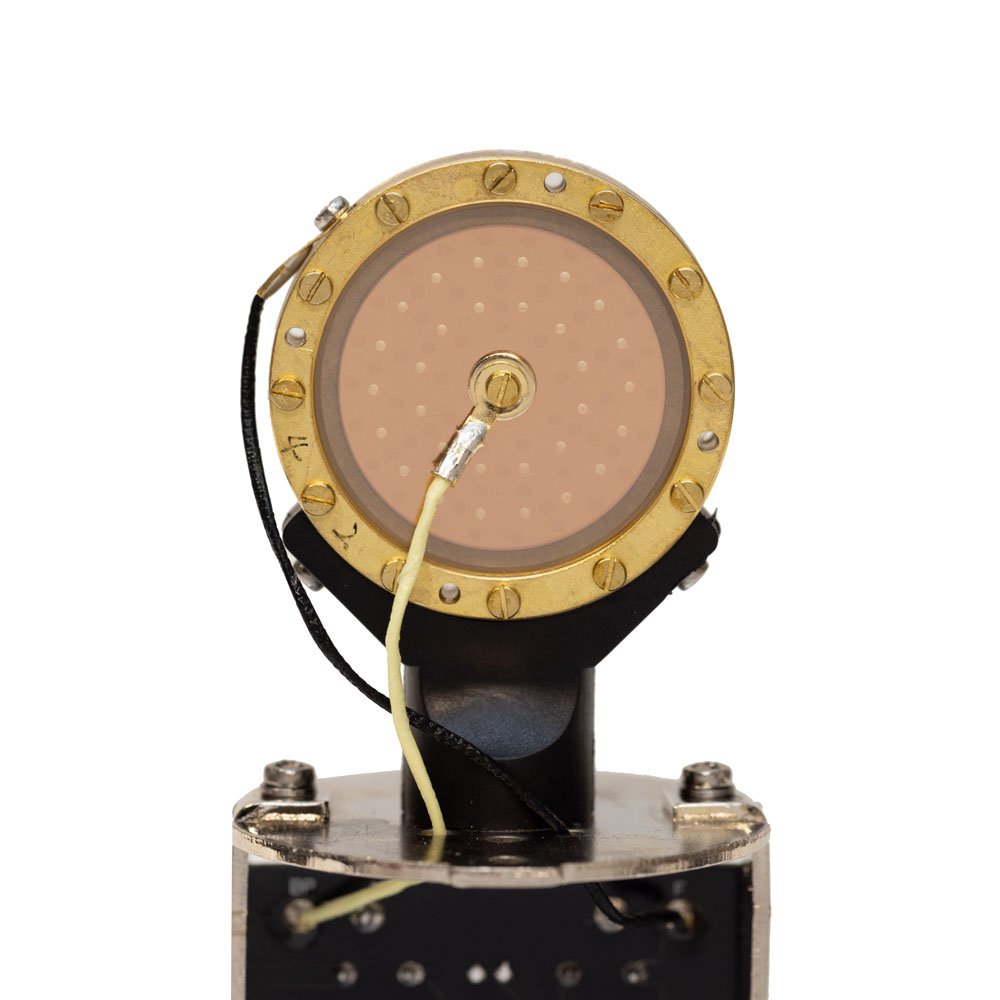

Capsule: TK47S " Center Terminated Large Diaphragm, Single Membrane
Amplifier Type: Transistor (+48V phantom power required)
Transformer: OEP/Carnhill T217
Sensitivity: 12 mV/Pa, ±1 dB
THD at 1 kHz at 1 Pa (Amplifier): 0.01%
Output Impedance: < 200 ?
Maximum SPL (for 1% THD): > 135 dB
S/N Ratio: 91 dBA
Self-Noise (Amplifier): 3 dBA
Dimensions: 175 mm L x 46 mm Dia
Weight: 545 g

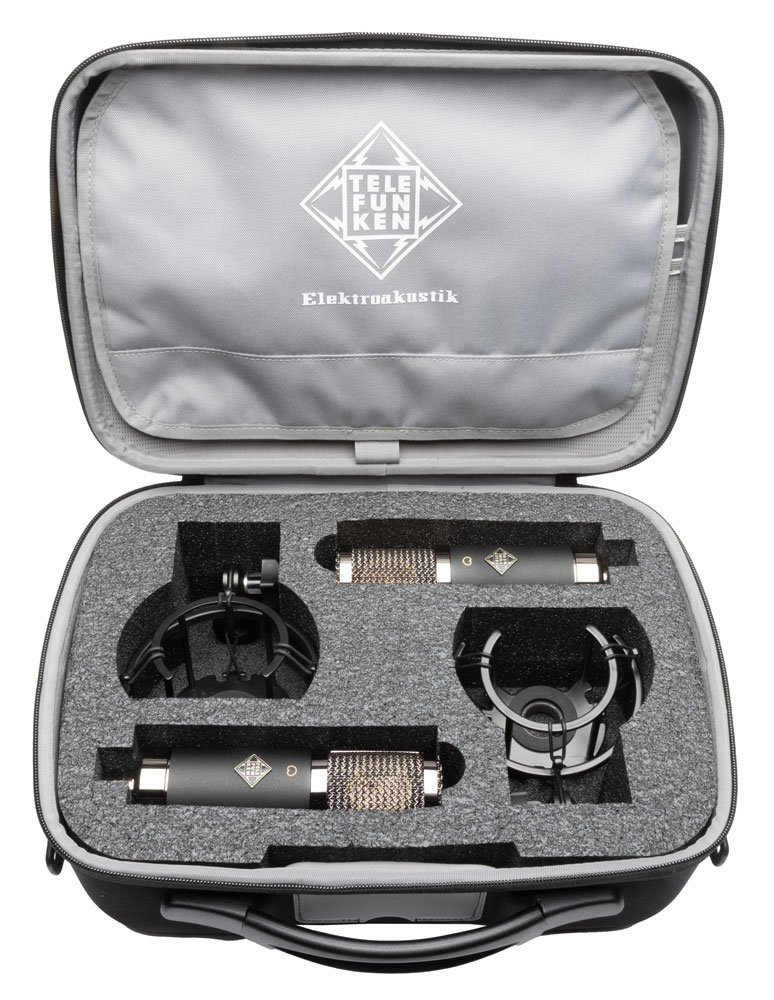

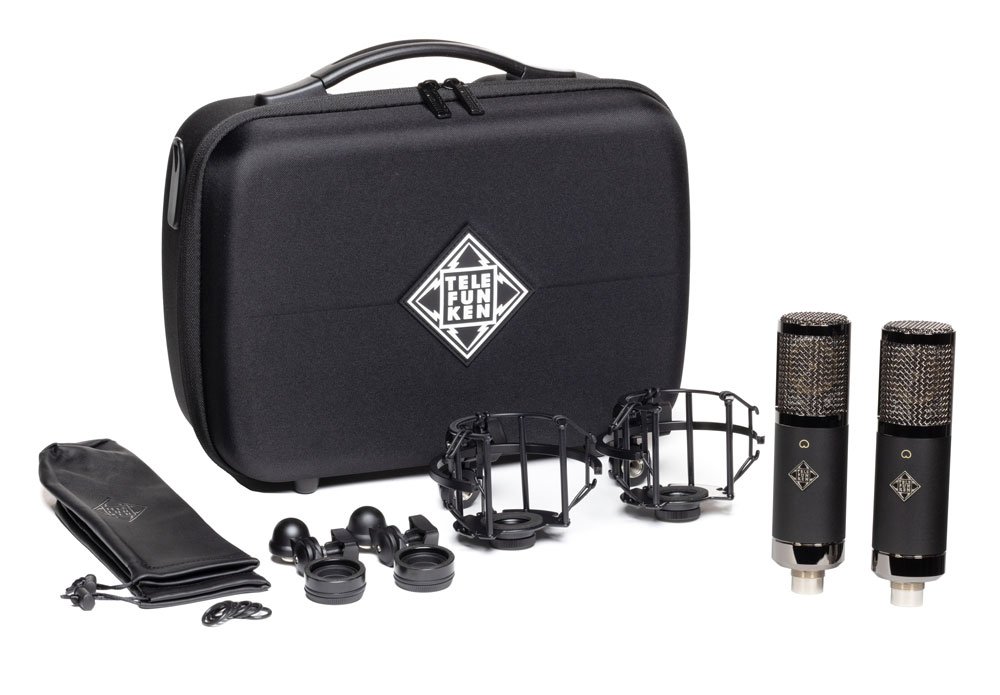

Each system includes:
(2x) Matched TF17 Microphones
(1x) ZC11S Zipper Case
(2x) M 703 Shock Mounts
(2x) M 782 Stand Mounts
(2x) MS01 Microphone Sleeves
