The entire Studio Economik's website is now priced in Canadian Dollars only.

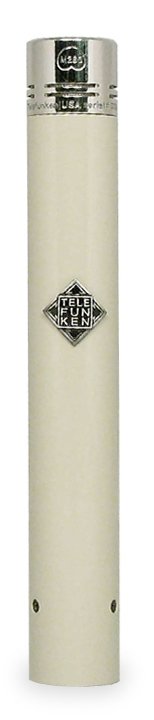

Telefunken ELA M 260 Master Set

$3909.00

Save -72%, MSRP $2273.00
Free shipping in Canada. Conditions

The Telefunken ELA M 260 Master Set system packages are supplied with a set of three interchangeable capsules: the TK60 Cardioid, TK61 Omnidirectional, and TK62 Hypercardioid.



The small diaphragm ELA M 260 is arguably one of the industry's finest acoustic and classical recording tube microphones, offering plenty of tone with excellent detail and clarity.

While not a historically accurate reproduction of the original ELA M 260 like the Diamond Series microphones, TELEFUNKEN Elektroakustik's version of the ELA M 260 is still built with the same attention to detail and level of quality that would be expected from a TELEFUNKEN Elektroakustik microphone.

Sonic Characteristic
In use, the ELA M 260 has plenty of tone with excellent detail and clarity. It captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types. Violin, cello, upright bass, drum overheads, percussion, woodwinds, saxophones, strings, and especially acoustic guitar all shine through the ELA M 260. Also, despite its size, it has also served well on vocal applications. Its unique tonal character is very well suited for a myriad of applications, both traditional and not.

Circuit Design
The ELA M 260 system features a new circuit design based around a New Old Stock (NOS) EF732 / 5840W vacuum tube and a custom output transformer that is wound to exacting specification in the United States. The combination of these features yields a small diaphragm microphone that is unique while also bearing the qualities of the vintage microphones that it was based upon.

System Configurations & Accessories
ELA M 260 tube microphone systems include an M 902 power supply, M 860 25' dual-shielded TX-7 tube microphone cable with right angle female XLR connector, M 761 elastic shock mount, and hard shell zipper carrying case.

The ELA M 260 Cardioid Set system packages are supplied with one interchangeable TK60 cardioid capsule. Additional TK61 Omnidirectional and TK62 Hypercardioid capsules can be purchased and attached separately.

The ELA M 260 Master Set system packages are supplied with a set of three interchangeable capsules: the TK60 Cardioid, TK61 Omnidirectional, and TK62 Hypercardioid. With all three capsules the user can have the flexibility to record their source material in any way they wish.

Specifications

  • Type: Pressure Gradient Condenser
  • Capsule: TK60, TK61, TK62 - 15 mm Edge Terminated Diaphragm
  • Tube Type: NOS EF732 / 5840W
  • Transformer: Custom Wound TELEFUNKEN T60
  • Polar Pattern: Cardioid, Omindirectional, and Hypercardioid (Interchangeable Capsules)
  • Frequency Range: 20 Hz - 20 kHz, ± 3 dB
  • Sensitivity: 16.5 mV/Pa ± 1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.15%
  • Output Impedance: 200
  • Maximum SPL (for 1% THD): 135 dB
  • S/N Ratio: 83 dBA
  • Self Noise (Amplifier): 11 dBA
  • Dimensions: 140 mm L x 21 mm Dia
  • Weight: 116 g
  • Current Draw from Mains: 55 mA
  • Power Supply: M 960 - 7 Pin Female XLR Input, 3 Pin Male XLR Output
  • Cable: M 860R - 25 ft Accusound TX-7 Cable, Right Angle 7 Pin Female XLR, 7 Pin Male XLR
  • Wooden Box: WB60
  • Flight Case: HC60 - Hard Shell Protective Case (not included), FC60S for Stereo Set, FC60T for Tri-Mono Set
  • GTIN (UPC/EAN) : 899051002046
    Manufacturer Part Number : ELA M 260-MS
