Tegeler Audio Vocal Leveler
MPN #Vocal Leveler 500
500 series classic Opto compressor with gain reduction and output volume
The Tegeler Audio Vocal Leveler is a single channel Opto compressor taken from the Vari Tube Recording Channel and adapted to the 500 series format.

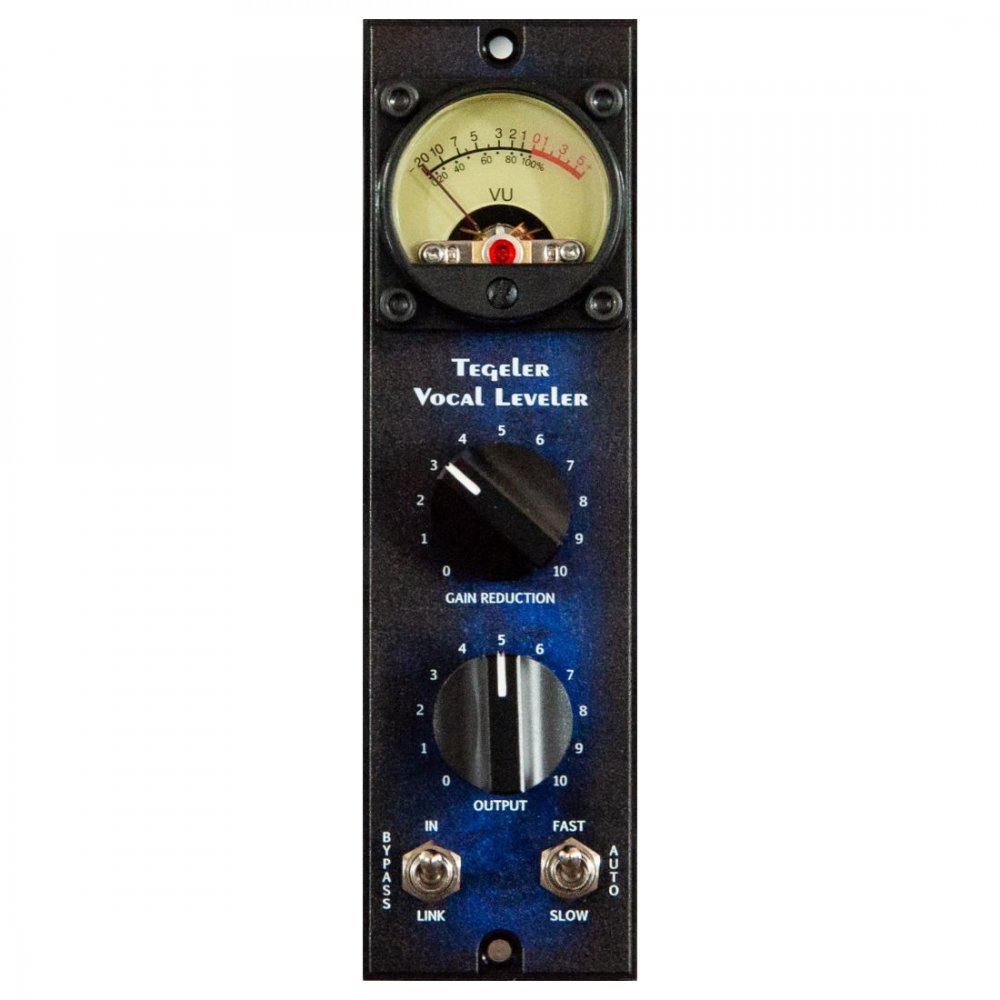

The Tegeler Audio Vocal Leveler offers a simple control layout consisting of Gain Reduction and Output level control knobs and a time constant three-way toggle switch. The time constant switch offers a choice between Slow and fast settings as well as an auto setting for program-dependent behaviour. A large VU meter is also provided to show the amount of gain reduction. A second toggle switch serves as a bypass in/out as well as a link when two units are connected together.
As the name suggests, the Vocal Leveler delivers a stunning performance on vocals with an open and analogue sound while maintaining your sound consistent and upfront. It also works great on bass and other instruments.
Specifications
Frequency Range: 20 - 22.000HzMaximum Input Level: 20 dBuInput Impedance: 2.4kOutput Impedance: < 600Operating level +4 dBuMaximum Output Level: 21 dBuDynamic Range: 100 dBMax. Gain Reduction: -12 dBVoltage: +- 16VFuse: -Power requirement: 80 mAMeasurements: 1 API 500 module widthWeight: 540gAPI 500 series mono opto compressorTwo knobs: Gain reduction, Output3-way switch (left): In, bypass, link for stereo use of two Vocal Levelers3way switch (right): Attack + Release time: fast, auto, slow (Zeiten rein)
