Tascam MM-2D-E
UPC/EAN #043774033867
MPN #MM-2D-E
$1359.00
Save 19.6%, MSRP $1690.00
2 mic line Euroblock inputs with phantom power, 2 line outputs, 4 Dante I O, DSP with matrix mixer, PoE support, software control, compact half rack design

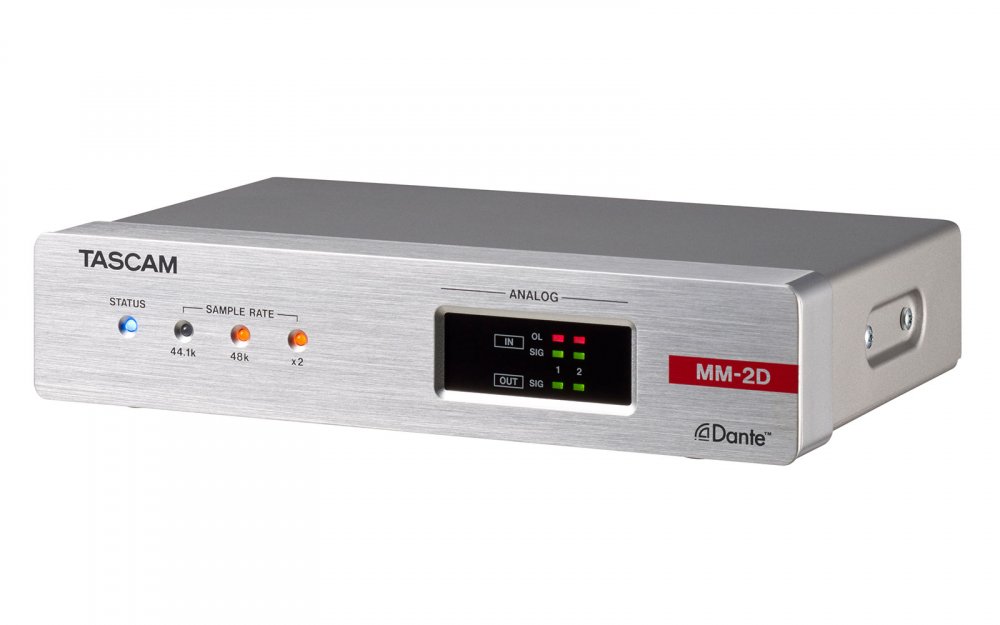

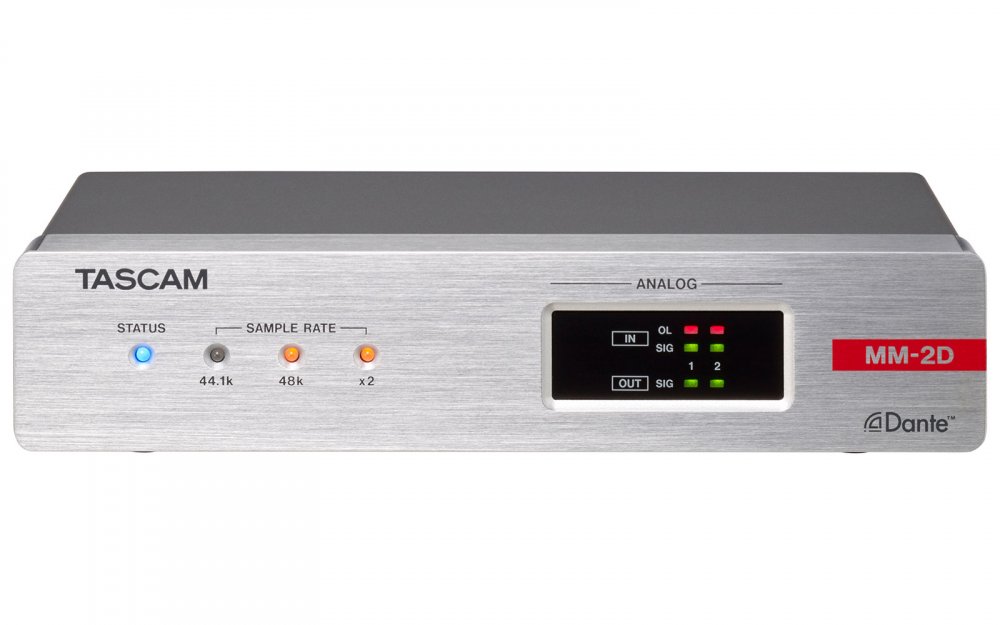

The TASCAM MM-2D-E is a compact and flexible Dante interface designed for seamless integration in professional audio environments and contractor installations. It features two mic/line Euroblock inputs with phantom power and remote gain control, two line-level outputs, and a built-in 6-in/4-out DSP matrix mixer. With high-grade TASCAM mic preamps, it supports resolutions up to 24-bit/96kHz, offering studio-quality performance in a rugged, half-rack design.
Thanks to built-in PoE support, advanced DSP processing, and comprehensive control software (DCP CONNECT and EZ CONNECT), the MM-2D-E provides real-time control over EQ, compression, auto-leveling, and routing. Whether installed under desks, on walls, or in a rack with optional accessories, this unit excels in conference systems, paging setups, or any application requiring high-quality audio input/output over a Dante network.
Features
2 Mic/Line Inputs with Phantom Power (Euroblock): Capture high-quality mic or line sources, with +48V phantom power support and remote gain control.2 Line Outputs (Euroblock): Route processed or Dante audio back out to analog systems with configurable reference levels.4 Dante Inputs and 4 Dante Outputs: Seamlessly integrates into Dante networks with bidirectional audio support.Built-In 6 In / 4 Out DSP Matrix Mixer: Mix mic/line and Dante inputs with processing like ducking and ambient noise compensation.Full DSP Processing Tools Included: Features EQ, compression, auto-level, filtering, delay, limiter, and more.Studio-Grade Mic Preamps: Low-noise, high-headroom design for clean and accurate voice and instrument capture.PoE Powered: Operates via Power over Ethernet-no separate power adapter required.Flexible Remote Control Options: Configure via TASCAM DCP CONNECT (for integrators) or EZ CONNECT (for end users) on desktop or mobile.Compact, Half-Rack Mountable Size: Ideal for fixed installations with included brackets or optional rack shelf (AK-RS1).Scene Memory & Signal Monitoring: Store up to 50 presets and view real-time input/output levels and Dante status via front panel indicators.
Specifications
General Specifications
2 channel mic line input with phantom power supportRemote mic gain control via software or Dante2 channel line output4 Dante input and output channelsBuilt-in DSP with 6 in 4 out matrix mixer24 bit resolution with sampling rates of 44.1 48 88.2 96 kHzHalf rack mountable sizeSignal indicators for input and output monitoringScene preset function for up to 50 presetsSupports Dante daisy chainingPoE Power over Ethernet class 0 supportCompatible with TASCAM DCP CONNECT and EZ CONNECT softwareRemote control via Dante and GPICompatible with Windows macOS iOS and AndroidIncludes surface mount bracketsOptional rack shelf AK-RS1 for dual unit installation
Audio Performance
Mic amp EIN -125 dBuFrequency response 20 Hz to 20 kHz at 44.1 48 kHz and 20 Hz to 40 kHz at 88.2 96 kHzDistortion THD plus N 0.005 percentSignal to noise ratio 105 dBCrosstalk 100 dBDynamic range 105 dB
Analog Inputs
Connector Euroblock balanced 3.81 mm pitchMinimum input level minus 74 dBuMaximum input level plus 26 dBuInput impedance 2 k ohms or higher
Analog Outputs
Connector Euroblock balanced 3.81 mm pitchOutput impedance 200 ohms or lowerNominal output plus 4 dBu or plus 6 dBu depending on reference levelMax output levels: plus 15 dBu at minus 9 dBFS, plus 18 dBu at minus 14 dBFS, plus 20 dBu at minus 16 dBFS, plus 22 dBu at minus 18 dBFS, plus 24 dBu at minus 20 dBFS
Dante Interface
Connector RJ45Protocol DanteEthernet standard 1000BASE-T IEEE 802.3abCable requirement Cat 5e or higher STP cables
GPI Control Inputs Outputs
Control connectors Euroblock 3.81 mm pitchSwitch input max voltage 5.5 VLED output open collector 48 V withstand 35 mA max
Power and Environmental
Power supply PoE class 0 or optional TASCAM PS-P1220EPower consumption 6WOperating temperature 0 to 40 degrees CelsiusDimensions 214 x 44.45 x 136.1 mmWeight 878 grams
Included Items
MM-2D-E unitInstallation brackets x 2Euroblock plugs x 4Cable band kit x 1Owner's manual with warranty
