64-Channel Solid-State Recorder with Redundant Power Supply, Records to internal SSD drive caddy, Control via SMPTE, RS-422, Ethernet, I/O card options include MADI, AES/EBU

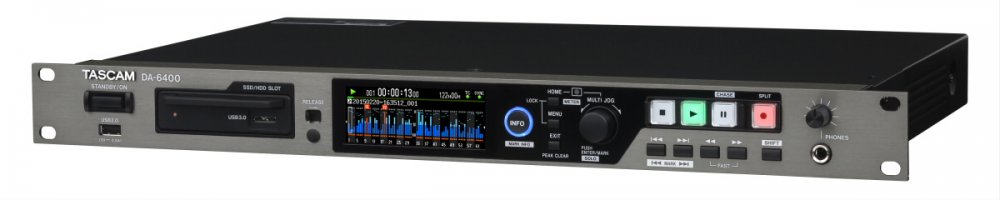

TASCAM's DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.

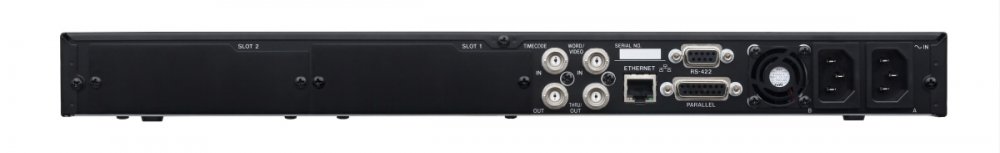

Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use - simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections.
I/O options for the DA-6400 include the IF-MA64/EX interface card, with both coaxial and optical MADI connections. This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.
No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM's DA-6400 solid-state 64-track recorder.
Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCMThe perfect backup recording system for synchronized capture with Pro Tools systems2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation.(Note: HDD support currently under development)Includes TASCAM SSD - designed with custom controller parts and thoroughly tested using DA-6400 unitsHot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computerAK-CC25 with TASCAM 240GB SSD drive included with unitHi-visibility Color LCD (320x120 pixels)BWF support for storing time information with filesTwo I/O slots for optional audio interface cards:IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface cardIF-MA64/BN 64-channel MADI coaxial interface cardIF-DA64 64-channel Dante(ST 2110) interface cardIF-AE16 16-channel AES/EBU interface cardSMPTE LTC timecode input and output for location synchronizationFirmware upload over USB portParallel remote control inputRS-422 serial remote control (9-pin serial protocol compliant)Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a networkSNTP client functions support for automatic adjustment of the internal clock over a networkVideo reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thruEIA 1U rackmount sizeIEC 3-pin inletiPad and computer applications for remote controlAC power redundancy built in (DA-6400dp only)
Recording media: SSDNote: HDD support also planned in addition to the SSD.File system: FAT32File formats: BWF(.wav)Number of channels: 64(1xFs), 32(2xFs)Sampling frequencies: 44.1k/48k/88.2k/96kHzQuantization bit rate: 16bit/24bitClock reference: INTERNAL, WORD IN, VIDEO INTimecode frame: 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDFTIME CODE IN:Connector: BNCSignal voltage amplitude: 0.5V to 5Vp-pInput impedance: 10kFormat SMPTE 12M-1999 compliantTIME CODE OUT:Connector: BNCSignal voltage amplitude: 2Vp-pOutput impedance: 600Format: SMPTE 12M-1999 compliantWORD/VIDEO IN:Connector BNCInput voltage amplitude (WORD) 0.5V to 5Vp-p TTL equivalentSignal voltage amplitude (VIDEO):1Vp-pInput impedance: 75 +/-10%Input frequency (WORD) 48kHzInput signal (VIDEO):23.976/24/25/29.97/30 Frame (NTSC/PAL Black burst, HDTV Tri-Level)WORD/VIDEO THRU/OUT:Connector BNCOutput voltage amplitude:5V TTL equivalentOutput frequency (WORD): 48kHzETHERNET:Connector RJ-45Protocol:100BASE-TX, 1000BASE-TRS-422Connector D-sub 9 pin (female, inch-standard)PARALLEL:Connector D-sub 15 pin (female, inch-standard)USB:Connector USB2.0 A-typeProtocol:USB 2.0 HIGH SPEED(480Mbps)PHONESConnector 6.3mm(1/4') standard stereo jackMaximum output level:45mW+45mW or higherPower: AC100V-240V, 50/60Hz*DA-6400dp has 2 power supply inletsPower consumption: 21W (At the time of IF-MA64/EX use)Dimensions 482.6(W)x44.7(H)x304.8(D)mmWeightDA-6400: 3.9kgDA-6400dp: 4.0kgOperating temperature: 0 to +40CStandard accessories: TASCAM SSD, SSD media case, Power cablex1 (DA-6400), Power cablex2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner's manual (with warranty)
