$2420.00

Save 4.5%, MSRP $2534.00
Free shipping in Canada. Conditions

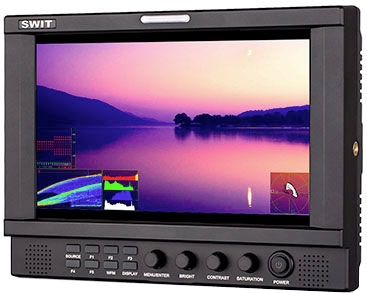

The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920x1200 resolution and LED backlight, 800:1 contrast



The viewing angle is Horizontal: 170° / Vertical: 170°

Features

  • 9-inch Full HD Waveform LCD Monitor
  • 9" IPS LCD, 1920x1200, H/V 170°viewing
  • Build-in LCD protective glass
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vector scope, histogram R/G/B/Y
  • AFD, H/V delay, R/G/B/Mono, False color
  • TSL UMD and text TALLY display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Front / Rear TALLY light and GPI control
  • V-mount, Gold mount or snap-on DV mount
  • USB firmware upgrade
  • Specifications

    LCD Performance
    Size: 9 inches
    Display area: 191.52x119.70mm
    Resolution: 1920x1200
    Aspect ratio: 16:9 (4:3 adjustable)
    Brightness: 450cd/m2
    Contrast : 800:1
    Color: 16.77 million colors
    Viewing angle: Horizontal: 170°Vertical: 170°

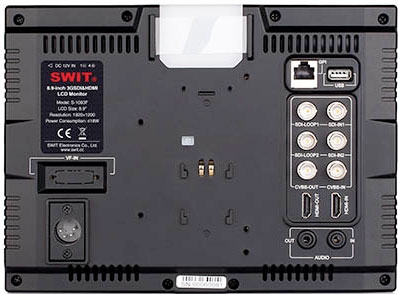

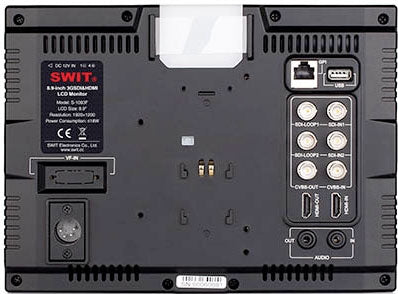

    Input
    BNC x2: 2K/3G/HD/SD-SDI input x2
    BNC x1: Composite input
    HDMI x1: HDMI input
    3.5mm x1: Analog audio input

    Output
    BNC x2: 2K/3G/HD/SD-SDI loop output x2
    BNC x1: Composite loop output
    HDMI x1: HDMI loop output
    3.5mm x1: SDI, HDMI, Analog audio output

    Video Format
    CVBS
    NTSCPAL
    SDI: SMPTE ST 2048-1: 2011 2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-425M: 1080p (60 / 59.94 / 50)
    SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M: 720p (60 / 59.94 / 50)
    SMPTE-125M: 480i (59.94) ITU-R BT.656 576i (50)

    HDMI:
    480i/ 576i / 480p / 576p
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)

    General
    Working voltage: DC / battery 6.5V-24V
    Power consumption: 18W
    Working temperature: 0°C+40°C
    Working humidity: 10%90%
    Storage temperature: -15°C+60°C
    Storage humidity: 10%90%
    Dimensions: 241x178x52mm
    Net weight (main body): 960g
