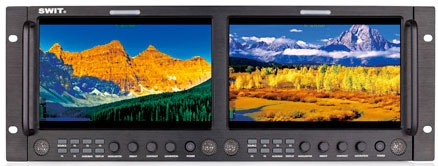

The M-1093H adopts 2x 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920x1200 resolution and LED backlight, 800:1 contrast.

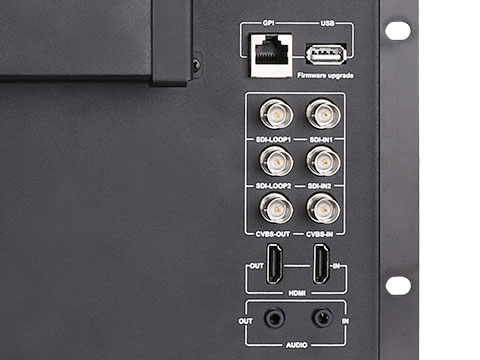

Input/Output Interfaces - SDI / HDMI / CVBS / Analog Audio
Each LCD of M-1093H supports:
2K/3G/HD/SD-SDI input x 2
2K/3G/HD/SD-SDI loop output x 2
HDMI 1.3 input x 1
HDMI 1.3 loop output x 1
CVBS input x 1
CVBS loop output x 1
3.5mm analog audio input x 1
3.5mm analog audio output x 1

Embedded Audio Monitoring - 2-ch meters with alert
M-1093H supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display - TSL 3.1 / 4.0 Protocol
M-1093H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

3-color TALLY Light - RJ45(RS485) input signal
There are front TALLY lights of Red, Green and Yellow colors on each screen, and users can define the pins of RJ45 port to control the TALLY lights.

Power Supply

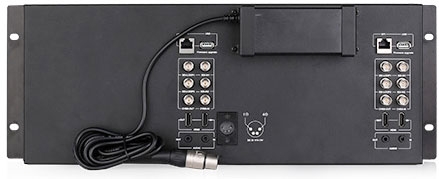

M-1093H provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation
M-1093H is standard 19" rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks.

M-1093H offers the following accessories as standard package:
1x 4-pin XLR power adaptor
2x LCD protective film

Features

M-1093H support the following input video formats

CVBS
PAL / NTSC

HDMI
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)

SDI
SMPTE 2048-2 2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048x1080i (60 / 59.94 / 50)
SMPTE-425M 1080P (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)

Audio Meter Level - With abnormal alert info
Support 2-ch SDI & HDMI embedded audio meters and analog audio meters display. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
The audio meters support audio abnormal alert info display, for example if the channel has no audio signal, the audio meter position will display "UNLOCKED", and if the channel has audio signal but no volume, it will display "MUTE".
The alert info and audio markers can be switched on or off, and display position can be selected from 4 corners, also the translucence of the pattern can be adjusted.

Specifications

LCD Performance
Size: 9 inches x2
Display area: 191.52x119.70mm
Resolution: 1920x1200
Aspect ratio: 16:9 (4:3 adjustable)
Brightness: 450cd/m2
Contrast: 800:1
Color: 16.77 million colors
Viewing angle: Horizontal: 170°; Vertical: 170°

Input (Each LCD)
  • BNC x2: 2K/3G/HD/SD-SDI input x2
  • BNC x1: Composite input
  • HDMI x1: HDMI input
  • 3.5mm x1: Analog audio input

  • Output (Each LCD)
  • BNC x2: 2K/3G/HD/SD-SDI loop output
  • BNC x1: Composite loop output
  • HDMI x1: HDMI loop output
  • 3.5mm x1: SDI, HDMI, Analog audio output

  • Video Format
    CVBS NTSCPAL

    SDI
  • SMPTE 2048-2: 2048x1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60)
  • 2048x1080i (50 / 59.94 / 60)
  • SMPTE-425M: 1080p (60 / 59.94 / 50)
  • SMPTE-274M: 1080i (60 / 59.94 / 50)
  • 1080p (30 / 29.97 / 25 / 24 / 23.98)
  • SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
  • SMPTE-296M: 720p (60 / 59.94 / 50)
  • SMPTE-125M: 480i (59.94)
  • ITU-R BT.656: 576i (50)

  • HDMI
  • 480i/ 576i / 480p / 576p
  • 1080i (60 / 59.94 / 50)
  • 720p (60 / 59.94 / 50)
  • 1080psf (30 / 29.97 / 25 / 24 / 23.98)
  • 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

  • General
  • Working voltage DC / battery: 6.5V-24V
  • Power consumption: 36W
  • Working temperature: 0°C+40°C
  • Working humidity: 10%90%
  • Storage temperature: -15°C+60°C
  • Storage humidity: 10%90%
  • Dimensions: 484x177x112.8mm
  • Net weight (main body): 2.8kg
