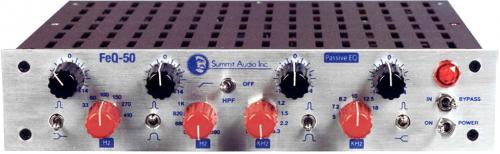

Summit FeQ-50
UPC/EAN #836213010037
MPN #FeQ-50
The FeQ-50 is a four-band passive equalizer covering the entire audible frequency spectrum, so it can be used on any audio source material.
Unique passive design
The Summit Audio FeQ-50 draws from years of research and experience to be able to fit a true tube passive design into a chassis of this size. Coveted by top professionals for decades, passive EQs have better phase coherence, and the inductors offer a rich, smooth harmonic quality.
This and that
The FeQ-50 provides both tube and solid-state outputs, each with their own 1/4" (-10) and XLR (+4) jacks. With four simultaneous outs available, you can do all sorts of multi-tracking tricks with a single signal.
Parametric 4 band EQ
The FeQ-50 is a four-band passive equalizer covering the entire audible frequency spectrum, so it can be used on any audio source material. You can subtly sculpt and fine-tune an instrument or vocal to make it fit perfectly into a mix, or you can totally transform a sound into something entirely different and new.
Really well built
The Summit Audio design philosophy considers the entire package when it comes to crafting gear. We pay special attention to the details of construction and have included many refinements over the years so units are durable enough to handle the rigors of the road. That is one of the reasons why you will find Summit gear on tour with many of today's top touring acts around the world.
Hand-crafted in the USA
Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.
Features
Four frequency bands+/- 14dB cut and boostSix switch selectable frequencies per bandSeparate, bypassable high pass filterMaster bypassFour simultaneous outputs, both vacuum tube and solid stateFully passive design (no amplifier in filter circuit)Internal high voltage power supplyOne 12AX7A/ECC83 vacuum tube
Specifications
Size and Weight
Height: 1.75 inches (4.44 cm)Width: 8.5 inches (21.59 cm)Depth: 8.5 inches (21.59 cm)Weight: 5 pounds (2.77 kg)
Power Configuration
Internal AC Supply15 watts, 115, 50 or 60 Hz (USA model)Fuse size .5 amp, slo-blo for 100/115 VFuse size .25 amp, slo-blo at 230 V
Selectable Frequencies
Low Band
The Low EQ band can be set for either a peak or shelving
response and can boost or cut up to ±14dB.
Frequencies: 33Hz, 60Hz, 100Hz, 150Hz, 270Hz, or 410 Hz.
Mid Band
Frequencies: 390hz, 470Hz, 560Hz, 680Hz, 820Hz, or 1kHz.
wide/narrow Q selectable
High-Mid Band
Frequencies: 1.2 kHz, 1.5 kHz, 2.2 kHz, 3.3 kHz, 4.7 kHz
and 5.6 kHz. wide/narrow Q selectable
High-Frequency Cut
The High-Mid EQ band can be set for either a peak or
shelving response and can boost or cut up to ±14dB.
5 kHz, 7.2 kHz, 8.2 kHz, 10 kHz,12.5 kHz, or 18kHz

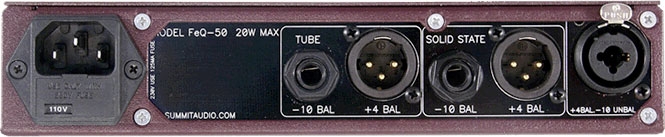

Connections
Line Input: +4 dB XLR Balanced and -10 dB 1/4" unbalancedSolid State Outputs: +4 dB male XLR and 1/4" -10 dB balancedTube Outputs: +4 dB male XLR and 1/4" -10 dB balanced
Max input level
Max input level: +20 dBuMax output level (XLR): +20dBuMax gain: +/-14dB per band
Operating Measurements
Frequency response: Tube:12Hz-100kHz -1dBSolid State: 12Hz-100kHz -1dBSignal to noise ratio Tube: 122dBSolid State: 124dBTHD + Noise: Tube: 0.16% +4dB in 20Hz-20kHzSolid State: 0.07% +4dB in 20Hz-20kHzVacuum tubes: single 12AX7A
