Studio Technologies Model 5401A Dante Leader Clock
MPN #M5401A
$3595.00
Save 10.2%, MSRP $4003.00
Leader clock for Dante audio-over-IP and AES67 applications
The Model 5401A Dante Leader Clock provides precise timing signals for applications that utilize the Dante audio-over-IP media networking technology. The unit implements a high-performance IEEE 1588 precision time protocol (PTP) server, compatible with the requirements of Dante and capable of simultaneously supporting the timing needs of up to hundreds of Dante-compatible devices. As expected, the Model 5401A provides the PTPv1 (IEEE 1588-2002) compatibility that's required by Dante. In addition, the unit supports PTPv2 (IEEE 1588-2008) for AES67 applications. A word clock output provides a general-purpose timing reference for use by external devices. The Model 5401A also generates eight sine wave audio tones on Dante transmitter (output) channels which can be useful during audio and data network installation, maintenance, and operation. A sync input connection allows the Model 5401A's internal oscillator to be synchronized with a variety of timing and reference signals.
Features
Dedicated Leader clock for Dante audio-over-IP and AES67 applicationsHigh-performance IEEE 1588 PTP v1 and v2 serversInternal temperature-stabilized frequency referenceCompatible with external word clock, video sync, and 10 MHz sourcesPrecision word clock outputEight configurable audio tone signalsThree Gigabit Ethernet interfaces support independent Dante and management networksWebpage management and USB flash drive software updatingAC mains and 12 volts DC poweringLightweight enclosure, single rack-space (1U) mounting
Specifications
Applications:
High-performance Leader clock for Dante audio-over-IP applications. Also supports AES67-2018 applications. In addition, provides audio tones on Dante transmitter (output) channels for general-purpose use and a word clock synchronization output.
Precision Time Protocol (PTP) Support:
PTPv1 (IEEE 1588-2002) for Dante; PTPv2 (IEEE 1588-2008) for AES67-2018
Timing Reference:
Source: internal time base, external sync input, or via an existing Dante network, selectable
Internal Time Base:
Type: 24.576 MHz temperature-stabilized crystal oscillator
Initial Accuracy: 1 ppm (parts-per-million)
Long-Term Accuracy: 1 ppm (parts-per-million) per year
Temperature Stability: ±280 ppb (parts-per-billion), 0-50 degrees C
Sync Input:
Compatible Sources: word clock, bi-level video, tri-level video, 10 MHz
Termination: 50 ohms (10 MHz), 75 ohms (word clock or video), or high Z (unterminated), selectable
Word Clock Compatibility: square wave, 5 Vpp nominal unloaded, 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Video Signal Compatibility: bi- or tri-level, 1 Vpp nominal into 75 ohm load
10 MHz Signal Compatibility: sine wave, 3 Vpp nominal into 50 ohm load
Word Clock Output:
Type: square wave
Rate: 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Source Impedance: 75 ohms
Amplitude: 5 Vpp, unterminated; 2.5 Vpp, externally terminated with 75 ohms
Jitter: 0.01 UI (using internal time base)
Network Audio Technology:
Type: Dante audio-over-IP
AES67-2018 Support: yes
Dante Domain Manager? (DDM) Support: yes
Ethernet Interface Configuration: Switched, Redundant, Switched+Mgmt, or Redundant+Mgmt, selectable
Clock Source: follows Model 5401A timing reference configuration
Sample Rate: 44.1, 48, 88.2, 96, 176.4, or 192 kHz, selectable
Bit Depth: 24
Number of Dante Transmitter (Output) Channels: 8
Number of Dante Transmitter Flows: 32
Audio Tone Generator:
Type: continuous sine wave signals on Dante transmitter (output) channels
Number of Channels: 8
Frequency: 1 Hz to 22 kHz, individually configurable in 1-Hz steps
Amplitude: 0 to "99 dBFS, individually configurable in 1-dB steps
Distortion (THD+N): <0.0001% (<"121 dB), measured at 1 kHz, "1 dBFS
Network Interfaces:
Qty: 3. Dante Primary, Dante Secondary, and Management
Type: 1000BASE-T Gigabit Ethernet (GigE) per IEEE 802.3ab (100 Mb/s supported but not recommended for optimal performance; 10 Mb/s not supported)
Ethernet Connection NIC Status LEDs: one link and one activity for each Ethernet interface

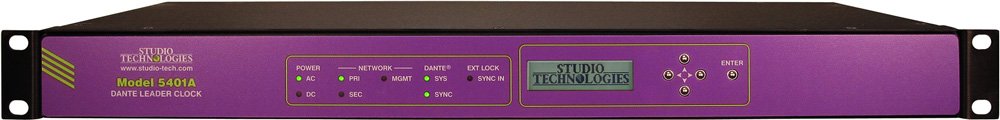

Front-Panel Display: backlit LCD
Front-Panel LEDs:
Qty: 8, dual-color
Functions: provides indication of condition of incoming AC and DC power, status of three Ethernet interfaces, status of Dante connectivity, and status of sync input
Software Updating:
USB flash drive supports updating of Main MCU, Main FPGA, and Sync FPGA firmware (embedded software); Dante interface updated via Ethernet interface
Power Sources:
AC Mains: 100 to 240 V, 50/60 Hz, 5 W maximum
DC: 10 to 18 V, 0.5 A max: 110 uA maximum with 12 volts DC and AC mains present, 190 uA maximum with 18 volts DC and AC mains present

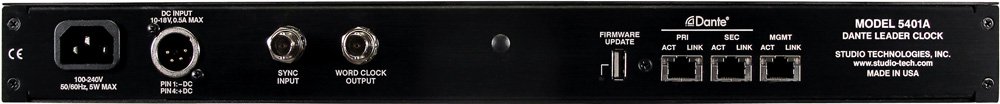

Connectors:
Sync Input, Word Clock Output: 2, BNC jack (female connector), per IEC 61169-8 Annex A
Ethernet: 3, RJ45 jack
USB: type A receptacle (used only for updating firmware)
DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
AC Mains Input: 3-blade male, IEC 320 C14-compatible (mates with C13)
STcontroller Support:
Status of select parameters can be monitored using Studio Technologies' STcontroller software application
Environmental:
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
Storage Temperature: "40 to 70 degrees C ("40 to 158 degrees F)
Humidity: 5 to 95%, non-condensing
Altitude: not characterized
Dimensions (Overall):
19.00 inches wide (48.3 cm)
1.72 inches high (4.4 cm)
7.9 inches deep (20.1 cm)
Mounting: one space (1U) in a standard 19-inch rack
Weight: 3.0 pounds (1.4 kg)
Specifications subject to change without notice.
