SPL Volume 2
UPC/EAN #4260149320421
MPN #2612

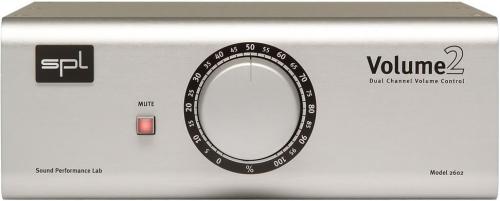

The Volume 2 is a fully analog active stereo volume controller and a puristic high-end preamplifier.
As a cost-effective alternative to our full-featured Stereo and Surround Monitoring Controllers MTC and SMC the Volume 2 focuses on the high quality in active volume control. Users who do not need additional monitoring functionality provided by the MTC will find the Volume 2 an cost-effective solution without compromises. The Volume 2's design is based on active switching to avoid nonlinear frequency response introduced by impedance changes with passive designs when changing levels.
The Volume Controller Volume 2 serves as a system-independent analog volume regulator in all areas of audio processing and playback, including
Music productionMovie and video post productionVideo computer games productionHi-fidelity applications
Analog Volume Control - Why
The majority of D/A converters and sound cards provide nothing in the way of analog level control, and this means the necessity of varying signal levels at the converter outputs. The result is a lowered bit rate in the monitoring signal, which can lead to commensurate loss of audio quality.
Compared to passive volume controls which affect the frequency and phase response each time the volume is changed the active design of the Volume 2 is stable in phase and frequency, which is important to always be sure to monitor the same signal.
A further, very interesting application area is in the construction of a straight, audiophile-quality stereo playback chain, where the Volume2 is situated between the playback machine and either power amp and speakers or simply active speaker system. In such cases, the playback machine must offer analog outputs. This provides for minimal financial and electronic efforts through the most direct possible playback path.

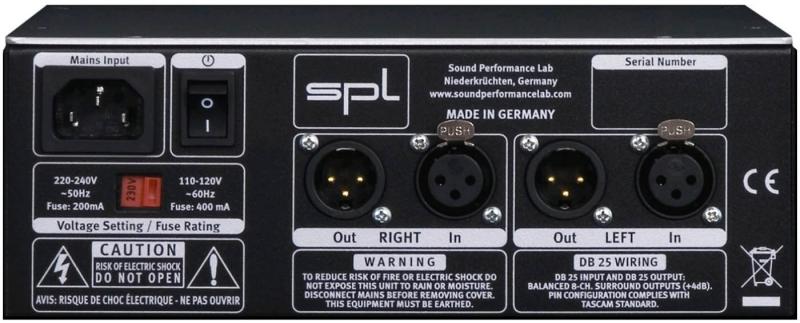

Unbalanced connections, e. g. to and from RCA or TS Jack
You can establish unbalanced connections easily and without adaptors - for example from CD-Players with RCA outputs or to (HiFi) power amplifiers with RCA inputs. In any case we recommend to use readily configured cables from XLR to the respective RCA or TS/TRS connector to dispense with adaptors. Ask your dealer for configured cables. It is important to pay attention to the correct polarity of the three XLR wires. With the XLR pin configuration diagram in our manuals any audio expert can ensure to select or configure appropriate cables.
Features
High end volume potentiometer and illuminated mute switch from ALPS; the potentiometer controls signals directly (without VCA or DAC circuitry)The mute switch allows for very fast reaction times in cases where loud speakers or ears should be protected (for example, with computer crashes)In contrast to digital volume controls which reduce the bit resolution at lower listening levels there is no degration in sound with an analog volume controlIn contrast to passive volume controls which alter the phase and frequency response there is no alteration in sound with an active volume controlUsers of analog summing without monitoring facilities can cost effectively improve their systemsHigh quality balancing stages with extremely good common mode rejection minimize interferences and disturbances in the signal pathsBalanced XLR in- and outputsA high quality power supply with toroidal transformerMassive, 45 mm diameter aluminum knobs ensure consistent, refined handlingThe elegant, compact housing allows for flexible desktop positioning near or under a computer monitor.Made in Germany
Specifications
Inputs & Outputs:
Instrumentation amplifier, electronically balanced (differential), transformerless
Nominal input level: +4dBu
Input impedance: 22kOhm
Output impedance: <600Ohm
Max. input level: >+20dBu
Volume control range: -80dB bis -4dB
Measurements:
Frequency range: 10Hz-100kHz (100kHz = -3dB)
CMRR: >60dBu@1kHz
THD & N (at +15dBu input level): >-100dBu
S/N (A-weighted): -102dBu
Crosstalk L/R (at 1kHz): >-80dBu
Dynamic range: 120dB
Power supply:
Toroidal transformer: 3,5VA
Fuses: 250mA (230V), 500mA (115V)
Voltage selector: 230V/50Hz; 115V/60Hz
Power consumption: ca. 15W
Dimensions & Weight:
(W x H x D): 215 x 80 x 220mm; 8.5" x 3.1" x 8.8"
Depth incl. Potentiometer, Sockets: 245mm/9.8 inches
Weight: 1.6kg/3.52lbs
