SPL  |  SKU: 15704

SMC 7.1 - Silver

Monitoring Controls

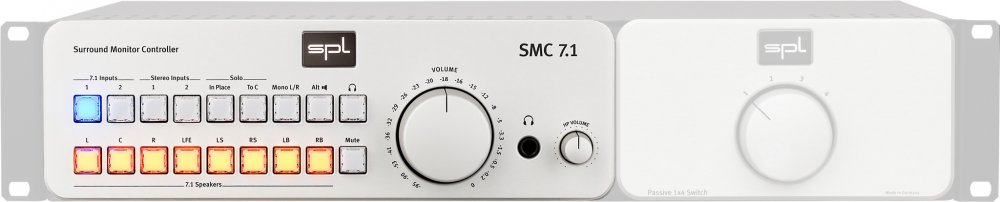

The SPL Surround Monitor Controller SMC 7.1 is an analog studio monitor controller for 7.1 and stereo sources

$2,679.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Each of the two balanced 7.1 inputs and the two balanced stereo inputs can be routed to the balanced 7.1 output. The L/R signals of the active input can optionally be routed to the alternative stereo output. With the high-quality headphone amplifier, you can listen to the L/R signal of the active input as well as to single channels of the 7.1 inputs.

The eight-ganged potentiometer controls the volume of all channels directly - no control circuits like VCAs are used.

The SMC 7.1 is built up in high-quality analog technique, which ensures a linear frequency response up to 100 kHz as well as an outstanding dynamic range.

Features

Two Balanced 7.1 Inputs

Two Balanced Stereo Inputs

Balanced 7.1 Output

Balanced Stereo Output with Sub Out

Extensive Routing Options

Solo in Place / Solo to Center

High-Quality Headphone Amplifier

Dedicated Analog Meter Output

Internal Power Supply

Made in Germany

Specifications

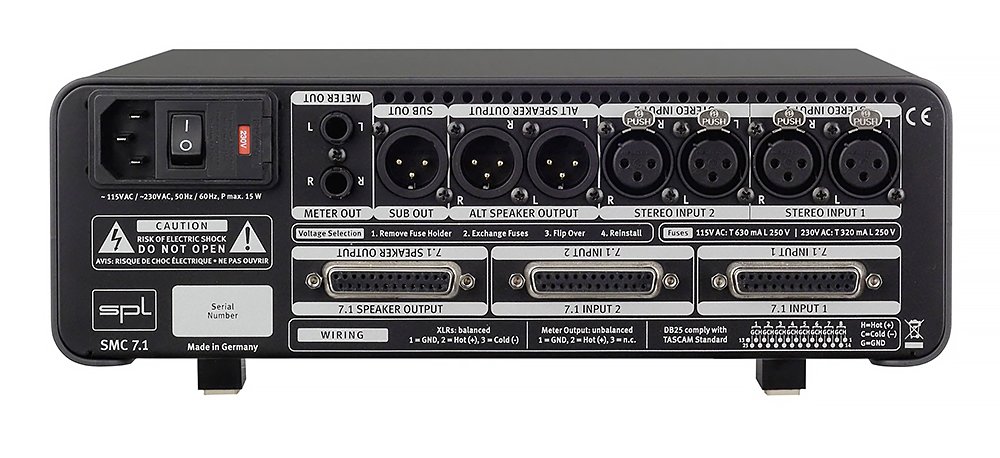

Inputs

Sub-D-25-Input


Sub-D-25 (TASCAM-Standard)
Impedance: 20 kOhms
CMR: -82 dB
Max. Input level: +22 dB

XLR-Input


Neutrik XLR, symmetrisch, Pin 2 = (+)
Impedance: 20 kOhms
CMR: -82 dB
Max. Input level: +22 dB

Outputs

Sub-D-25-Output


Sub-D-25 (TASCAM-Standard)
Frequency range: 10 Hz to 150 kHz ( -3 dB)
Crosstalk at 1 kHz: -92 dB
THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
Noise (A-weighted): -93 dB
Dynamic range: 115 dB

XLR-Output


Neutrik XLR, balanced, Pin 2 = (+)
Frequency range: 10 Hz to 150 kHz ( -3 dB)
Crosstalk at 1 kHz: -92 dB
THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
Noise (A-weighted): -93 dB
Dynamic range: 115 dB

Headphone Output


6,35 mm TRS connector
Pin wiring: Tip = Left, ring = right, sleeve = GND
Impedance: 22 kOhms
Frequency range: 10 Hz to 80 kHz ( -3 dB)
Crosstalk at 1 kHz: -70 dB
THD & N: 0,001% (0 dBu, 1 kHz, 40 kOhms load)
Noise (A-weighted): -93 dB
Dynamic range: 113 dB

Internal operating voltages


Analog: +/- 18 V Power supply
Mains voltage (switchable): 230 V AC / 50Hz or 115 V AC / 60Hz
Fuses: 230 V = T 500 mA; 115 V = T 1 A
Power consumption: max 25 VA

Dimensions and Weight


(WxHxD) 10.95 x 4.6 x 13.1 in (278 x 103 x 333 mm)
9.04 lbs (4.1 kg), unit only
11.02 lbs (5.0 kg), shipping
