SPL SMC 5.1
UPC/EAN #4260149320407
MPN #2489
The SMC - Surround Monitor Controller is a one-point analog volume control and switching matrix for system-independent 5.1 surround and stereo monitoring for any audio application.
The advantages of the SMC become especially apparent in combination with modern audio and video production tools such as ProTools, Nuendo, Cubase, Logic, Deck etc.
One of the SMC's biggest advantages is the possibility to manage several input sources, i. e. for comparing and monitoring SACD or DVD material.
Designed to provide only the necessary functions with excellent audio quality, the SMC offers a uniquely cost-effective speaker and source management solution.
The advantages of the SMC become especially apparent in combination with modern audio and video production tools such as ProTools?, Nuendo?, Cubase?, Logic?, Deck? etc. Monitor levels and source management can be handled independently of the software and with virtually no loss in quality. You no longer need to set up additional aux sends or an alternative surround master for monitoring. In addition, you won't have to worry about over- or underdriving the converters due to monitor levels.
One of the SMC's biggest advantages is the possibility to manage several input sources: comparing and monitoring SACD or DVD material is much easier than having to import all of your audio files and set up monitor mixes - not to mention the conversion of multichannel audio.
Standard A/V receivers are often used for this task. The problem with this is that the audio has to be either AD/DA converted or manipulated by signal-degenerating control circuitry (VCA's, DAC's etc.) for volume control, so you never hear the unadulterated audio - especially frustrating when you're working on SACD or DVD-A projects.

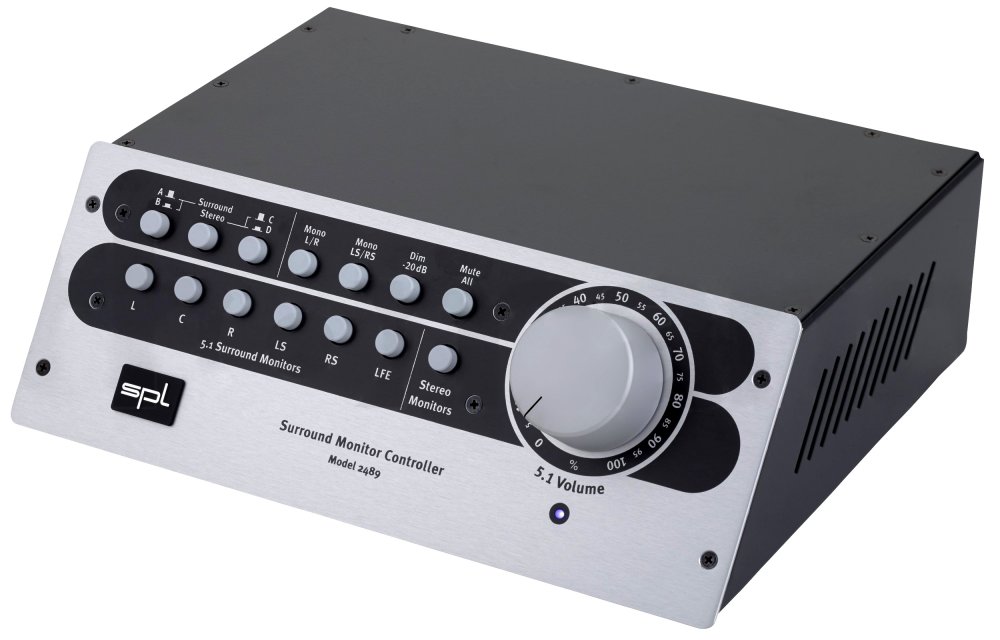

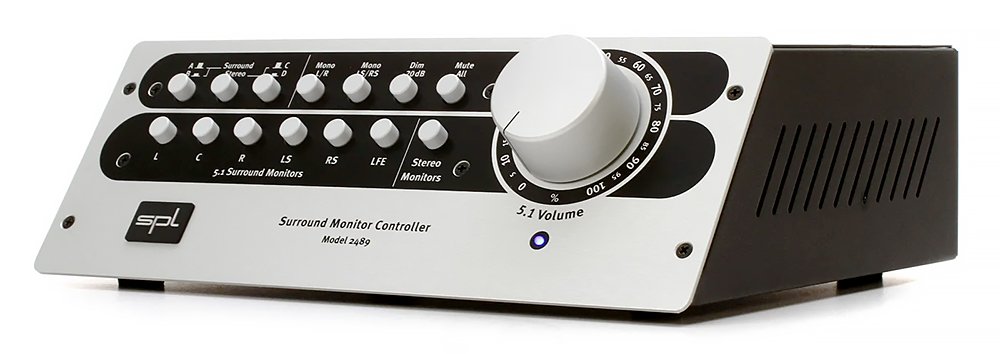

The SMC's rugged and ergonomic steel-blue desktop enclosure with its slanted front panel harmonizes perfectly with the desktop production environment and can be placed exactly where control is needed.

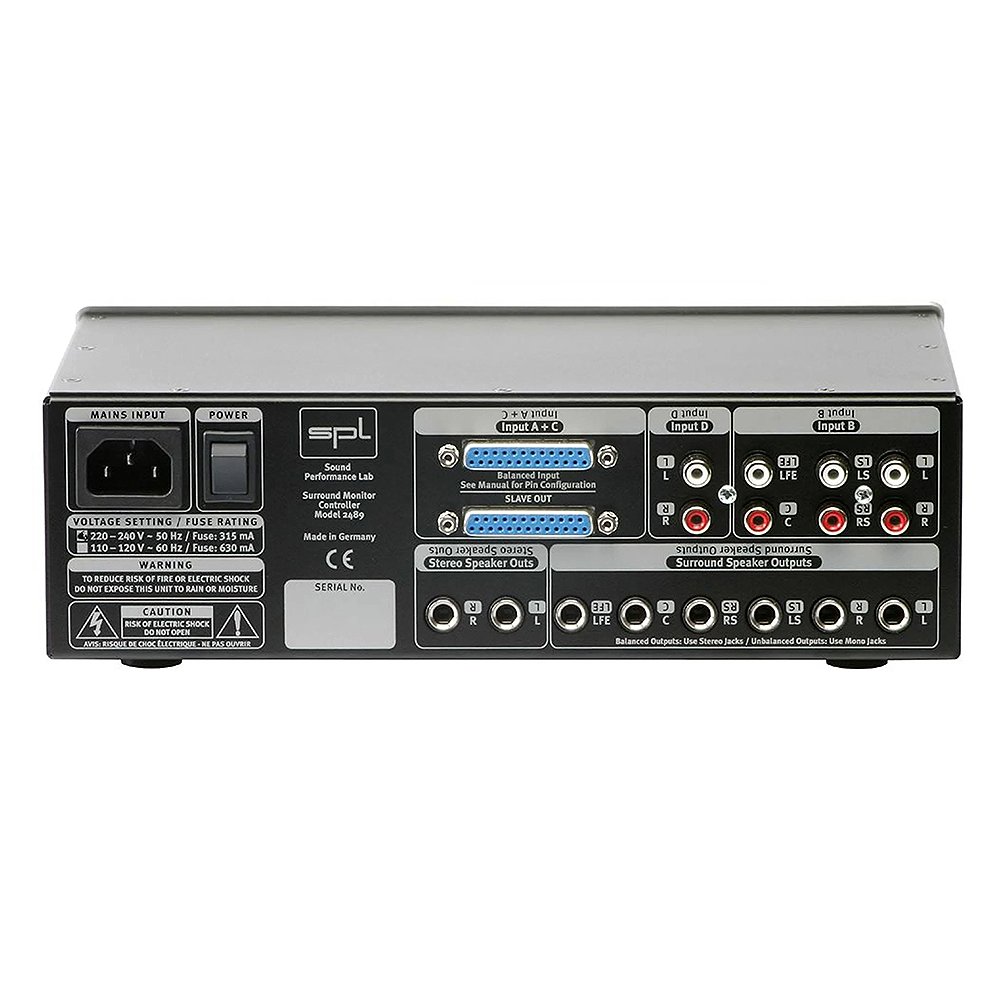

Rear Panel & Connections
In addition to a surround speaker set, a stereo pair can be connected to and managed by the SMC. A DB25 input connector provides six surround and two stereo input channels. Eight additional RCA connectors allow easy connection of SACD, DVD, CD or DAT players. A slave output allows the stereo or surround input signal to be routed directly to a recording device. Volume control is handled by a discrete six-layer potentiometer and all switching functions by extremely durable precision pushbuttons.
SPL's renowned electronic balancing circuitry forms the basis for the SMC's I/O architecture. Its extended frequency range up to 100 kHz, exceptional dynamic spectrum and excellent common mode rejection ensure specs that exceed SACD standards, as only highest quality analog circuitry can provide.
Features
Applications:
Surround and stereo productionDVD-V, DVD-A, SACD and DTS authoringFilm and video postproductionVideo and game productionA/V and multimedia productionAudiophile home entertainment systems
Specifications
Inputs & Outputs:
Input A: DB25 balanced (Tascam-Standard)
Input impedance: 50 kOhm
Input B: RCA unbalanced
Input impedance: >10 kOhm
Output DB25 (passive pass thru)
Output TRS stereo jacks balanced (speaker outputs)
Output impedance: <600 Ohm
Measurements:
Frequency range: 10 Hz - 100 kHz (-3 dB)
THD + N:
Input level -10 dB: 0.04%
Input level 0 dB: 0.01 %
Input level +10 dB: 0.006%
Input level +18 dB: 0.002%
Input level +22 dB: 0.1%
Noise: -98 dBu (A-weighted)
Max input level: +22 dBu
Dynamic range: 120 dB
CMRR:
100 Hz: >70 dBu
1 kHz: >70 dBu
10 kHz: >60 dBu
100 kHz: >50 dBu
Dimensions & Weight:
H x W x D: 91 x 272 x 220 mm (3.58" x 10.7" x 8.66")
2,3 kg; 5lbs
