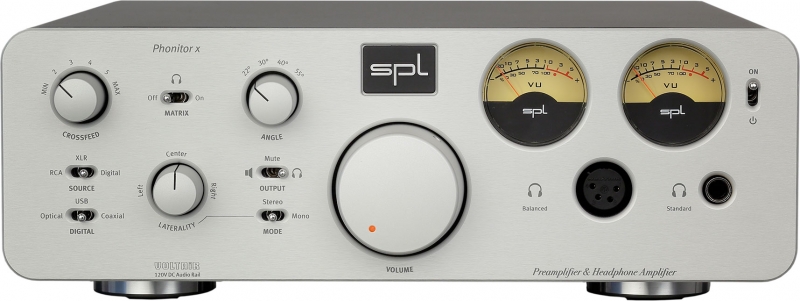

SPL Phonitor x (Silver)

MPN #1581

$3599.00

Économisez 10%, Prix suggéré $3999.00

Financement disponible

5/5 (1 évaluation) Écrire une évaluation

Livraison gratuite au Canada. Conditions

With the Phonitor x we have accommodated the wishes of our Hi-Fi customers. Available in Black, red and silver.

The Phonitor x is the ultimate headphone amplifier. It offers connections for headphones operated both balanced and unbalanced. With up to 3.7 W output power the Phonitor x delivers an impressive performance.

The revolutionary Phonitor Matrix delivers the most realistic playback on headphones. As almost all music was mixed for speaker playback the Phonitor Matrix lets you experience music on headphones as being played back through speakers.

The Phonitor x is not just a headphone amplifier, but also an excellent preamplifier that can also drive power amplifiers or active monitors. All in all five input sources can be connected. Two of which are analog stereo inputs (XLR und RCA) and three more are digital stereo inputs (USB, coaxial and optical).

The technical basis of all Professional Fidelity units is our proprietory 120 V Rail Technology, which we also call VOLTAiR technology. The name makes reference to the unequalled high voltage of 120 V (+/-60 V DC) and the huge dynamic range of over 140 dB that goes with it.

Caractéristiques

120V rail headphone amplifier and preamplifier

Separate connections and power amplifiers for headphone driven balanced and unbalanced

Suited for all headphones with impedances >10 ohms

Balanced and unbalanced analog inputs (XLR and RCA)

Optional digital inputs: USB, coaxial and optical

Optional DAC: 192 kHz and 24 Bit, Win driver supplied, Apple Class compliant

Balanced and unbalanced analog outputs (XLR and RCA)

Innovative Phonitor Matrix: speaker-equivalent listening on headphones

Laterality control: super-fine balance control

Mono switch function

Volume remotely adjustable (learns any IR remote control)

Maximum output power: 2 x 3.7 W (into 120 ohms)

Frequency response: 10 Hz - 300 kHz (-3 dB)

THD+N: 0.00091 % (HP), 0.00085 % (Line)

Dynamic range: 135.5 dB (HP), 136.3 dB (Line)

AMP CTR connection with Performer power amplifier for coupled On/Off switching

Made in Germany

Spécifications

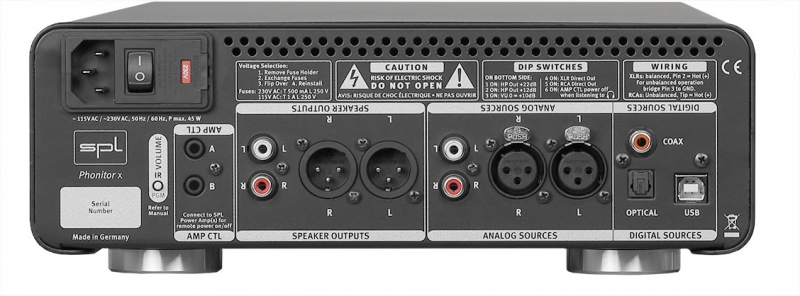

XLR Input

Neutrik XLR, balanced, Pin 2 = (+)

Impedance: ca. 20 kohms

CMR: -82 dBu (at 1 kHz)

Max. Input Level: +32.5 dBu

RCA Input

RCA, unbalanced (single-ended)

Impedance: ca. 10 kohms

Max. Input Level: +32.5 dBu

Digital Inputs (optional)

Coaxial SPDIF (RCA)

Optisch TOSLINK (F06)

USB (B)

Sample Rates (kHz): 44.1, 48 , 88.2, 96, 176.4, 192

Balanced Headphone Output

Neutrik 4-pin XLR connector

Pin wiring: 1= L (+), 2= L (-), 3= R (+), 4= R (-)

Impedance: 0.36 ohms

Damping Factor: 180 @ 40 ohms

Frequency Range: 10 Hz to 300 kHz ( -3 dB)

Crosstalk at 1kHz: -90 dB

THD & N: 0.00091 % (at 0 dBu, 1kHz, 100 kohms load)

Noise (A-weighted): -98 dBu

Dynamic Range: 130.5 dB

Unbalanced Headphone Output

6.35 mm TRS connector

Pin wiring: Tip = Left, Ring = Right, Sleeve = GND

Impedance: 0.18 ohm

Attenuation Factor: 180 @ 40 ohms

Frequency Range: 10 Hz to 300 kHz ( -3 dB)

Crosstalk at 1kHz: -90 dB

THD & N: 0.00091% (at 0 dBu, 1 kHz, 100 kohms load)

Noise (A-weighted): -103 dB

Dynamic Range: 135.5 dB

Max. Output Power (at +30 dBu @ 1 kHz)

2 x 1 W at 600 Ohm impedance

2 x 2 W at 300 Ohm impedance

2x 3.7 W at 120 Ohm impedance

2x 2.9 W at 47 Ohm impedance

2x 2.7 W at 32 Ohm impedance

Speaker/Line Outputs

Neutrik XLR, balanced, Pin 2 = (+)

RCA, unbalanced (single-ended)

Frequency Range: 4 Hz to 300 kHz (-3 dB)

Crosstalk at 1 kHz: -106 dB

THD & N: 0.00085 % (at 0 dBu, 1 kHz, 100 kohms load)

Noise (A-weighted): -103.8 dB

Dynamic Range: 136.3 dB

Internal Operating Voltages

Analog: +/- 60 V

Digital: + 5 V and + 3,3 V (optional)

Power Supply

Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz

Fuses: 230 V: T 500 mA; 115 V: T 1 A

Power consumption: max 40 VA

Stand-by power consumption: 0.7 W

Dimensions (incl. feet)

278 mm W x 100 mm H x 335mm D

10.95 in W x 3.94 in H x 11.19 in D

Weight

4.3 kg; 9.5 lbs (unit only)

5.4 kg; 11.9 lbs (shipping)
