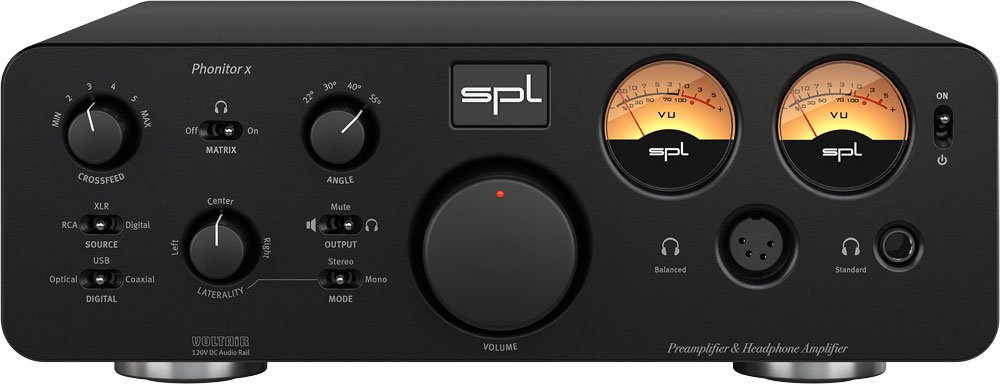

SPL Phonitor x + DAC768xs (Black)
UPC/EAN #4260149322319
MPN #15805
Headphone amplifier and DAC with VOLTAiR technology and DAC768xs included. Black colour
The Optional DAC768xs
The highly acclaimed AKM AK4490 Velvet Sound? premium DAC chip is used as the converter chip in the optional digital-to-analogue converter, which thanks to its new architecture reproduces the finest sound details.
It converts PCM audio with a resolution of 32 bits and a sampling rate of up to 768kHz, which corresponds to 16 times the CD resolution. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256.
Features
Versatile Connectivity: Supports both balanced and unbalanced headphones, accommodating various headphone types.Phonitor Matrix Technology: Simulates speaker-like listening on headphones, providing a natural audio experience.Preamp Functionality: Can directly drive power amplifiers or active speakers, serving as a central hub in your audio setup.Optional DAC Integration: With the optional DAC768xs, it connects to digital sources via USB, coaxial, or optical inputs, enhancing playback versatility.High-Quality Volume Control: Features a substantial aluminum volume knob with motorized control for precise adjustments.Remote Control Capability: Learns commands from any infrared remote, allowing for convenient volume adjustments from a distance.Multiple Source Inputs: Accommodates up to five stereo sources, including balanced XLR, unbalanced RCA, and digital inputs with the optional DAC.Robust Build Quality: Constructed with durable materials, ensuring longevity and reliability in performance.
Specifications
Analog Inputs & Outputs
? XLR (balanced) and RCA
Maximum Input & Output Gain
? 32.5 dBu
Input Impedance
? RCA: 20 k?
? XLR: 20 k?
Output Impedance
? 75 ?
Common Mode Rejection Ratio (XLR)
? 82 dB
Frequency Range (0 dBu)
? 10 Hz " 100 kHz
THD + N (1 kHz, 0 dBu)
? 0.00085 %
Crosstalk (1 kHz, 0 dBu)
? -90 dB
Noise (A-Weighted)
? -103 dBu
Dynamic Range
? 135 dB
Digital Inputs (Optional DAC768xs)
Coaxial SPDIF (RCA)
? PCM Sample Rates: 44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (Toslink F06)
? PCM Sample Rates: 44.1/48/88.2/96 kHz
? With Glass Fibre (<1 m): 176.4/192 kHz
USB (B)
? PCM Sample Rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
? DSD Over PCM (DoP) Sample Rates: 2.8 MHz (DSD64), 5.6 MHz (DSD128), 11.2 MHz (DSD256)
0 dBFS Calibrated To
? 15 dBu
Balanced Headphones Output (4-Pin XLR)
Pin Wiring
? 1 = L (+)
? 2 = L (-)
? 3 = R (+)
? 4 = R (-)
Source Impedance
? 0.36 ?
Damping Factor (40 ?)
? 180
Frequency Range (0 dBu)
? 10 Hz " 100 kHz
Crosstalk (1 kHz, 0 dBu)
? -90 dB
THD + N (1 kHz, 0 dBu)
? 0.00082 %
Noise (A-Weighted)
? -98 dBu
Output Power (1 kHz, 1% THD)
? 250 ?: 2 x 3.5 W
? 32 ?: 2 x 0.7 W
Dynamic Range
? 130.5 dB
Standard Headphones Output (6.35 mm TRS Jack)
Wiring
? Tip = Left
? Ring = Right
? Sleeve = GND
Source Impedance
? 0.18 ?
Damping Factor (40 ?)
? 180
Frequency Range (0 dBu)
? 10 Hz " 100 kHz
Crosstalk (1 kHz, 0 dBu)
? -90 dB
THD + N (1 kHz, 0 dBu)
? 0.00082 %
Noise (A-Weighted)
? -103 dBu
Output Power (1 kHz, 1% THD)
? 250 ?: 2 x 5 W
? 32 ?: 2 x 1 W
Dynamic Range
? 135.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating Voltage (Analog Audio)
? +/- 60 V
Operating Voltage (Relays and LEDs)
? +12 V
Mains Power Supply
Mains Voltage (Selectable)
? 230 V AC / 50 Hz
? 115 V AC / 60 Hz
Fuse
? 230 V: T 0.5 A
? 115 V: T 1 A
Power Consumption
? Max: 40 VA
Standby Power Consumption
? < 0.3 W
Dimensions & Weight
Dimensions (W x H x D, incl. feet)
? 278 x 100 x 300 mm
? 11 x 4 x 11.81 inch
Unit Weight
? 4.4 kg / 9.7 lbs
Shipping Weight (Incl. Packaging)
? 5.65 kg / 12.46 lbs
